Santa Cruz Bronson | Steed Cycles

Santa Cruz

Bronson

If in doubt, take a Bronson out

Why the Santa Cruz Bronson?

From flat out on the trail to fully flat over a table, if you wanna send it the Bronson delivers.
The 150mm-travel bike can go deep on any landing and the VPP™ suspension design makes sure that there’s no wasted energy when heading back up for another go. If you value style at speed or want to have fun feeling fast, then mixed wheels (29” up front, 27.5” out back) are the right choice. The larger front wheel provides more traction and stability that’ll make you feel more confident squaring off the turns and diving for the inside lines. But a 27.5-inch tire in the rear means this bike still loves getting up on the back wheel and into the air.

Front Travel: 160mm
Rear Travel: 150mm
Wheel size: MX

Technical Details

The mixed wheel configuration of a 29-inch wheel up front provides traction and stability, while the 27.5" rear wheel allows for quick back wheel steering and lifting.

Mixed Wheelsize
The Glovebox
Lifetime Warranty
Coil or Air

Santa Cruz Bronson 4.1 rear triangle in matte black

Santa Cruz Bronson Glovebox in Sockeye Salmon

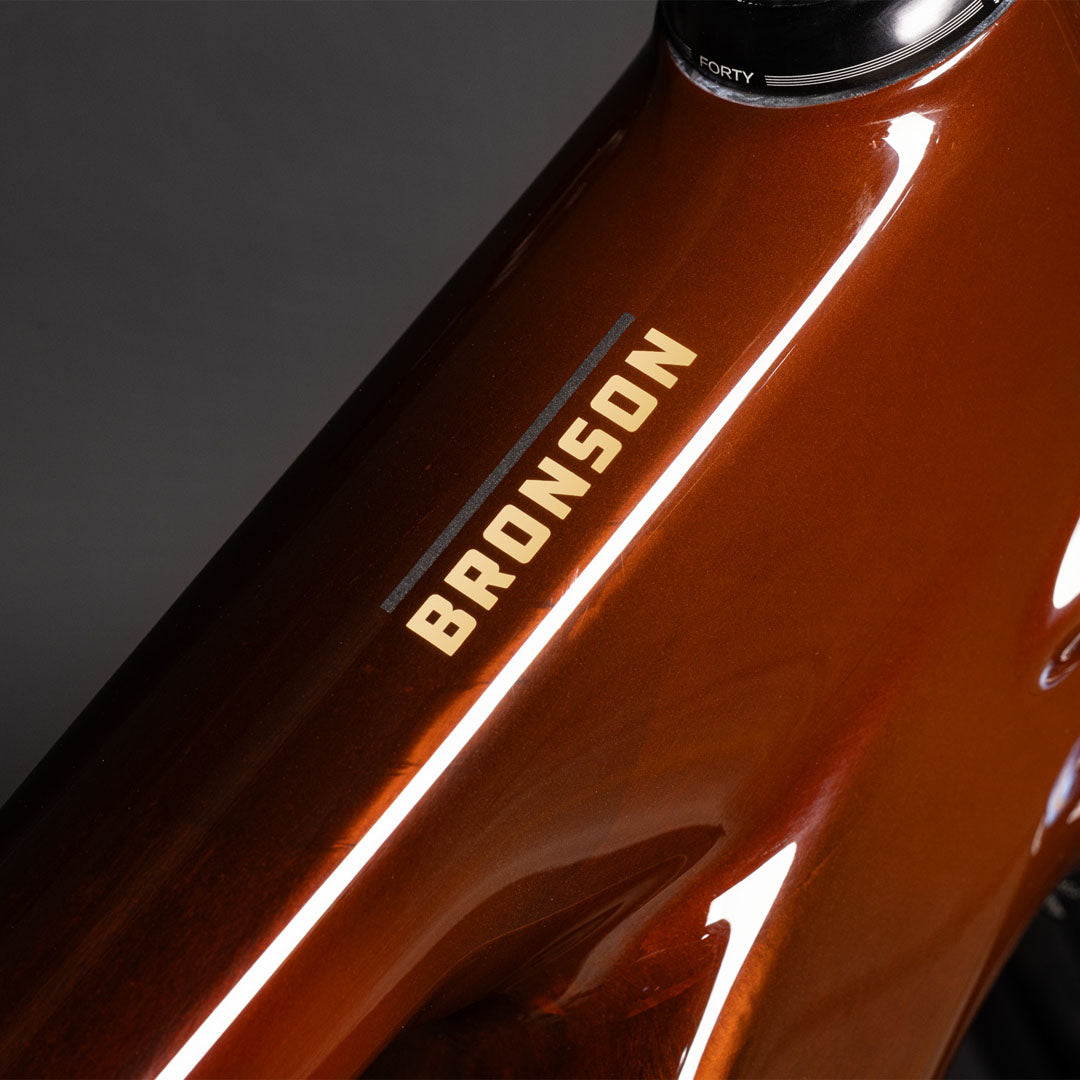

Santa Cruz Bronson headtube badge, Paydirt gold

Santa Cruz Bronson shock tunnel with Rockshox Super Deluxe Ultimate

Geometry

		XS	S	M	L	XL
		hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo
A	Reach	405 \| 402	430 \| 427	455 \| 452	475 \| 472	500 \| 497
B	Stack	594 \| 595	617 \| 619	626 \| 628	635 \| 637	649 \| 651
C	Head Tube Angle	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°
D	Seat Tube Length	370	380	405	430	460
E	Front Center	722 \| 722	757 \| 757	786 \| 786	811 \| 810	842 \| 842
F	Bottom Bracket Height	344 \| 341	344 \| 341	344 \| 341	344 \| 341	344 \| 341
G	Bottom Bracket Drop	10 \| 13	29 \| 32	29 \| 32	29 \| 32	29 \| 32
H	Wheelbase	1149 \| 1154	1188 \| 1189	1221 \| 1222	1249 \| 1249	1284 \| 1285
I	Rear Center	427 \| 432	431 \| 432	435 \| 436	438 \| 439	442 \| 443
J	Head Tube Length	110	100	110	120	135
K	Top Tube Length	536 \| 542	570 \| 575	599 \| 604	623 \| 627	653 \| 657
L	Seat Tube Angle	77.6° \| 76.9°	77.2° \| 76.7°	77.1° \| 76.6°	76.9° \| 76.5°	76.7° \| 76.4°
M	Standover Height	701 \| 698	709 \| 706	731 \| 727	729 \| 726	728 \| 725

*All measurements in degrees or millimetres

Frame Sizing

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team

Size	Height
	Imperial	Metric
XS	4'8" - 5'1"	142 - 155cm
S	5'1" - 5'5"	155 - 165cm
M	5'5" - 5'9"	165 - 175cm
L	5'9 - 6'1"	175 - 185cm
XL	6'1" - 6'4"	185 - 193cm
XXL	6'4" - 6'7"	193 - 201cm

		XS	S	M	L	XL
		hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo
A	Reach	405 \| 402	430 \| 427	455 \| 452	475 \| 472	500 \| 497
B	Stack	594 \| 595	617 \| 619	626 \| 628	635 \| 637	649 \| 651
C	Head Tube Angle	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°	64.7° \| 64.5°
D	Seat Tube Length	370	380	405	430	460
E	Front Center	722 \| 722	757 \| 757	786 \| 786	811 \| 810	842 \| 842
F	Bottom Bracket Height	344 \| 341	344 \| 341	344 \| 341	344 \| 341	344 \| 341
G	Bottom Bracket Drop	10 \| 13	29 \| 32	29 \| 32	29 \| 32	29 \| 32
H	Wheelbase	1149 \| 1154	1188 \| 1189	1221 \| 1222	1249 \| 1249	1284 \| 1285
I	Rear Center	427 \| 432	431 \| 432	435 \| 436	438 \| 439	442 \| 443
J	Head Tube Length	110	100	110	120	135
K	Top Tube Length	536 \| 542	570 \| 575	599 \| 604	623 \| 627	653 \| 657
L	Seat Tube Angle	77.6° \| 76.9°	77.2° \| 76.7°	77.1° \| 76.6°	76.9° \| 76.5°	76.7° \| 76.4°
M	Standover Height	701 \| 698	709 \| 706	731 \| 727	729 \| 726	728 \| 725
