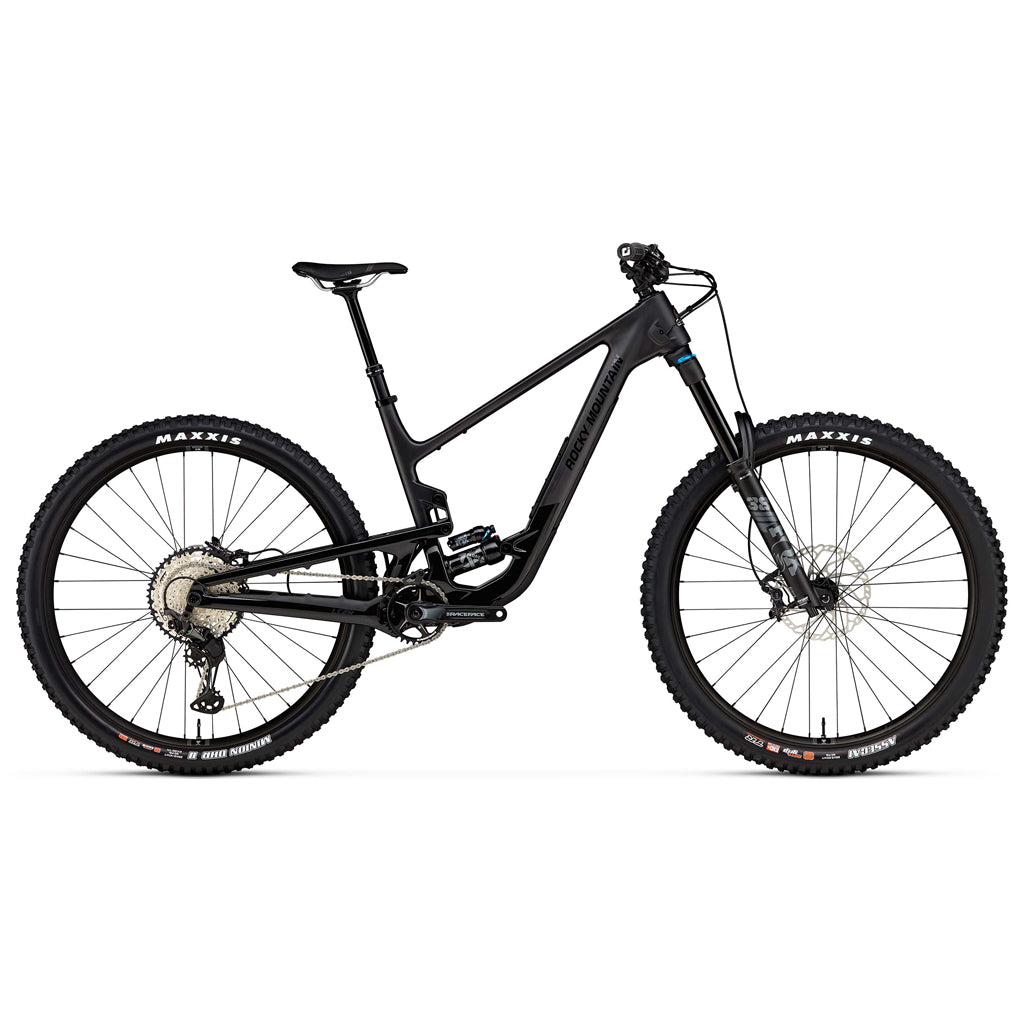

Rocky Mountain Altitude C50
Specifications
FrameSMOOTHWALL™ Carbon | Penalty Box 2.0 Storage |Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle
ForkRockShox Zeb Select 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset
Rear ShockRockShox Super Deluxe Select+ | Linear XL Air Can | Sealed Bearing Eyelet | 40x10mm F Hardware | SM = 210x55mm | MD - LG - XL = 230x60mm | Size-Specific tune in FAQ
HeadsetFSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race
StemRocky Mountain 35 AM | 0° Rise | All Sizes = 40mm
HandelbarRocky Mountain AM | 780mmWidth | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
GripsODI Elite Pro Lock On
BrakesSRAM Maven Bronze Stealth 4 Piston | Metal Pads
ShiftersSRAM Eagle 90 Transmission
Rear DerailleurSRAM Eagle 90 Transmission
Cranks & ChainringSRAM Eagle 70 | 32T | DUB Spindle | Crankarm Length: SM MD = 165mm | LG - XL = 170mm
Bottom BracketSRAM DUB BSA 73 Wide
CassetteSRAM XS-1270 Eagle Transmission 10-52T
ChainSRAM Eagle 70 Transmission
Front HubNovatec D791SB Sealed Boost 15mm
Rear HubDT Swiss 370 Boost 148mm | 18T Ratchet LN
SpokesDT Swiss Competition 2.0/1.8/2.0
RimsWTB ST i30 TOUGH TCS 2.0 | 32H
TiresMaxxis Assegai 2.5 WT 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
SeatpostTranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy MMX Lever | 30.9mm | SM = 150mm | MD = 170mm | LG = 200mm | XL = 230mm
SaddleWTB Solano Fusion Form 142 | Cromoly Rails
Geometry
| S - 27.5 | M | L | XL | ||
|---|---|---|---|---|---|
| Détendu | Raide | Détendu | Raide | Détendu | Raide | Détendu | Raide | ||
| A | Reach | 424 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 599 | 599 | 630 | 630 | 639 | 640 | 653 | 653 |
| C | Angle de direction | 63° | 63,8° | 63° | 63,8° | 63° | 63,8° | 63° | 63,8° |
| D | Hauteur du boitier de pédalier | 24 | 13 | 38 | 27 | 38 | 27 | 38 | 27 |
| E | Empattement | 1189 | 1188 | 1244 | 1242 | 1283 | 1282 | 1319 | 1319 |
| F | Longueur de la base arrière | 427 | 440 | 450 | 450 |
| G | Hauteur de direction | 100 | 105 | 115 | 130 |
| H | Longueur du tube horizontal | 553 | 584 | 610 | 642 |
| I | Angle du tube de selle | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° |
| J | Hauteur de surplomb | 760 | 768 | 792 | 798 | 798 | 806 | 809 | 817 |
| Toutes les mesures sont en degrés ou en millimètres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'0" - 6'6" | 183 - 198cm |
