You’re Going to Need a Bigger Map

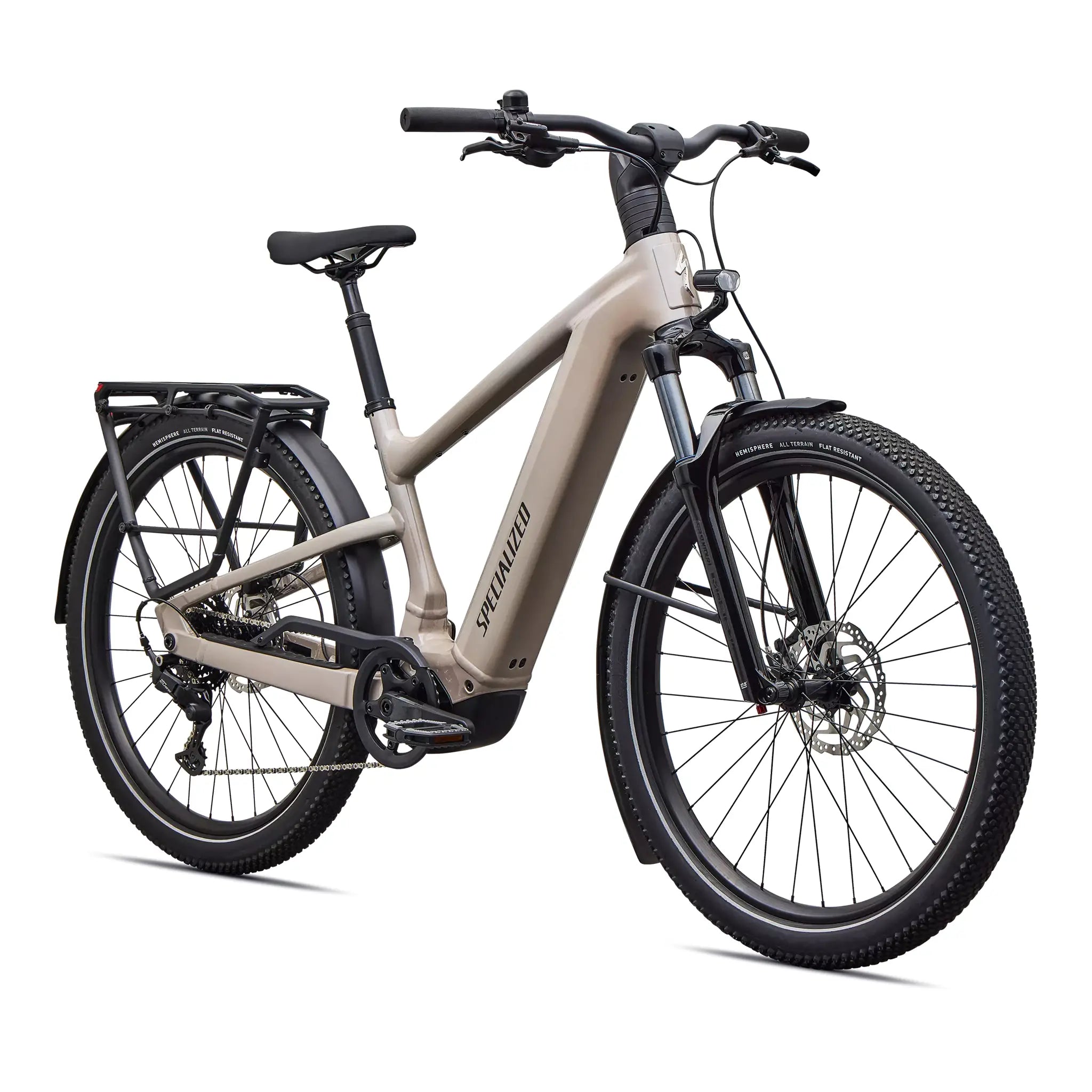

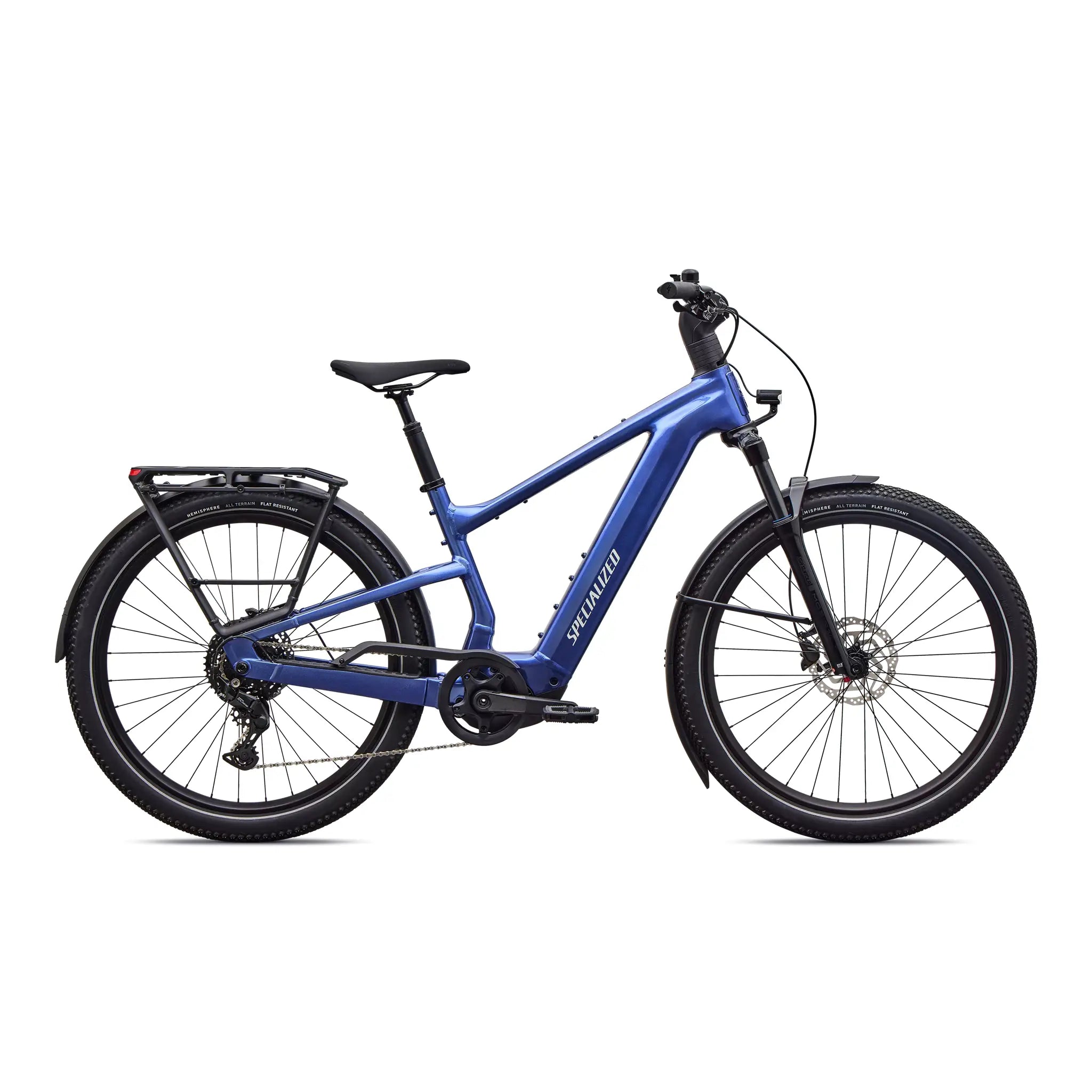

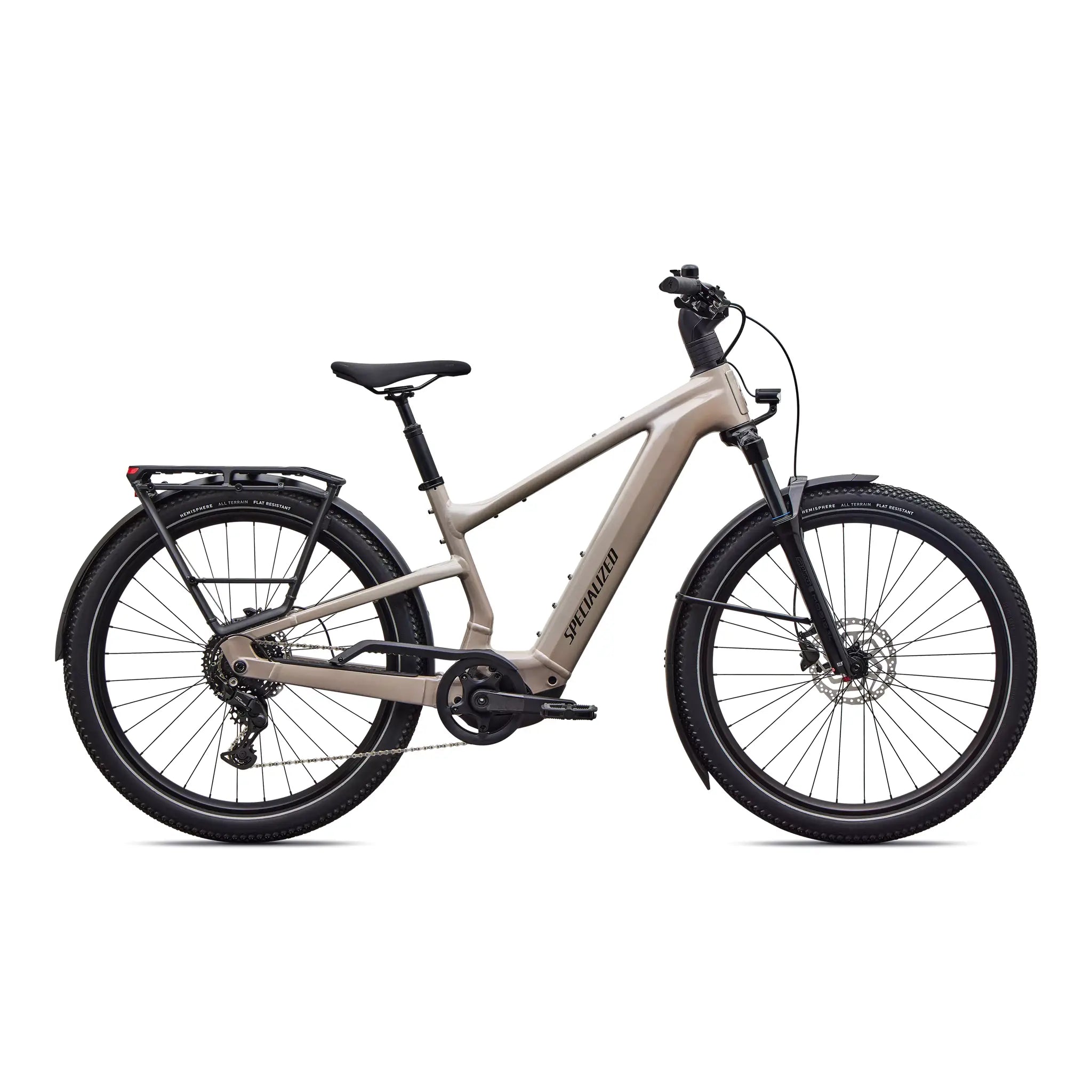

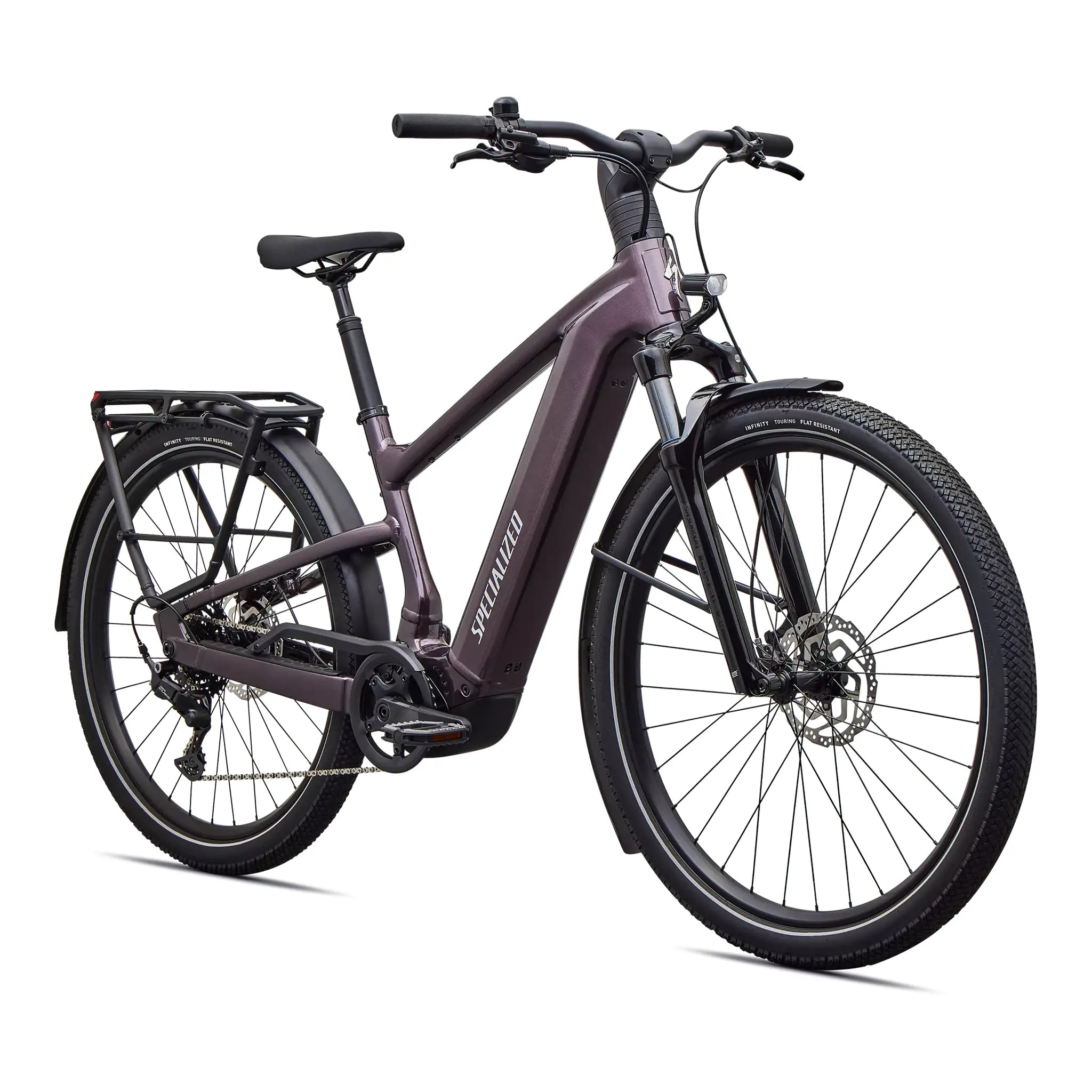

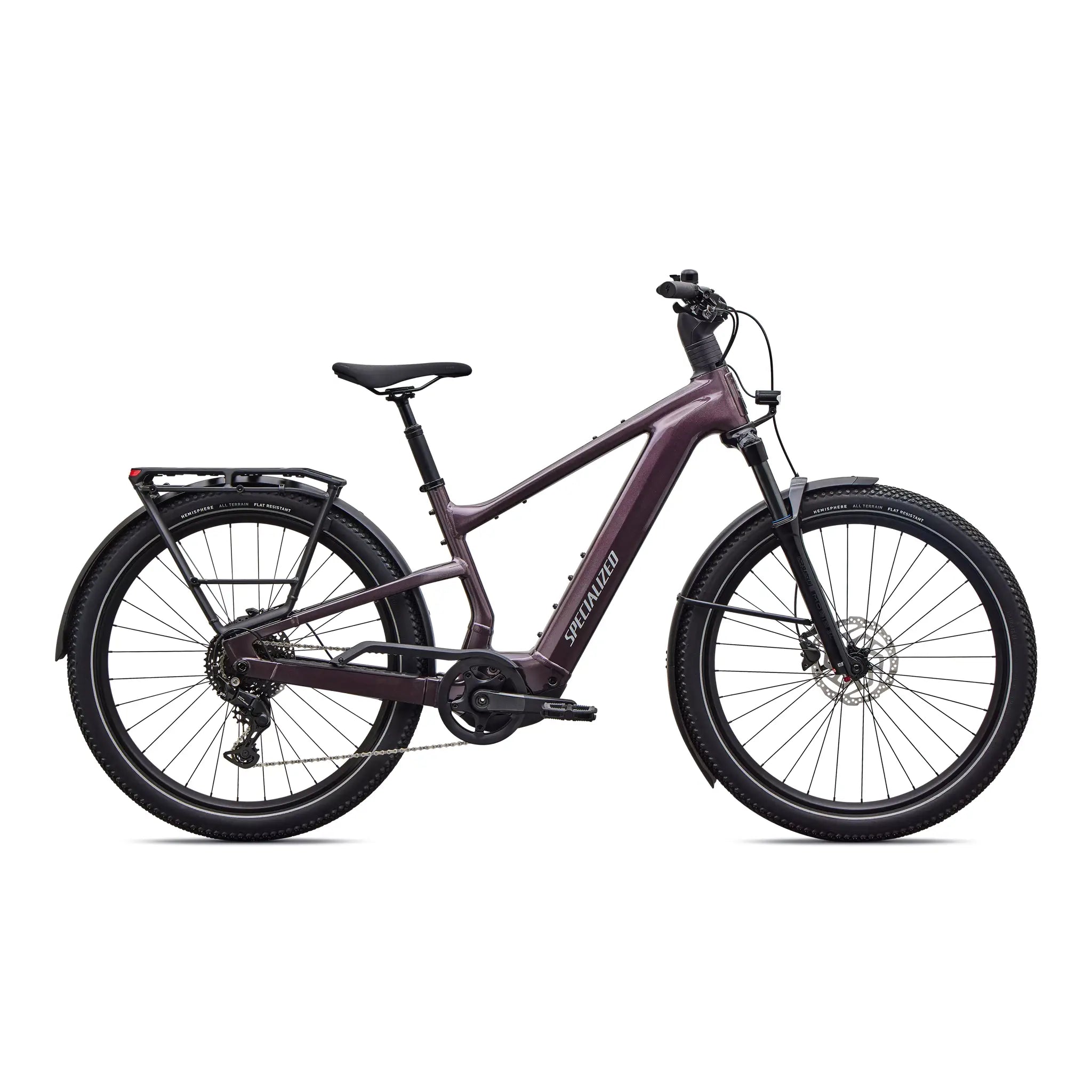

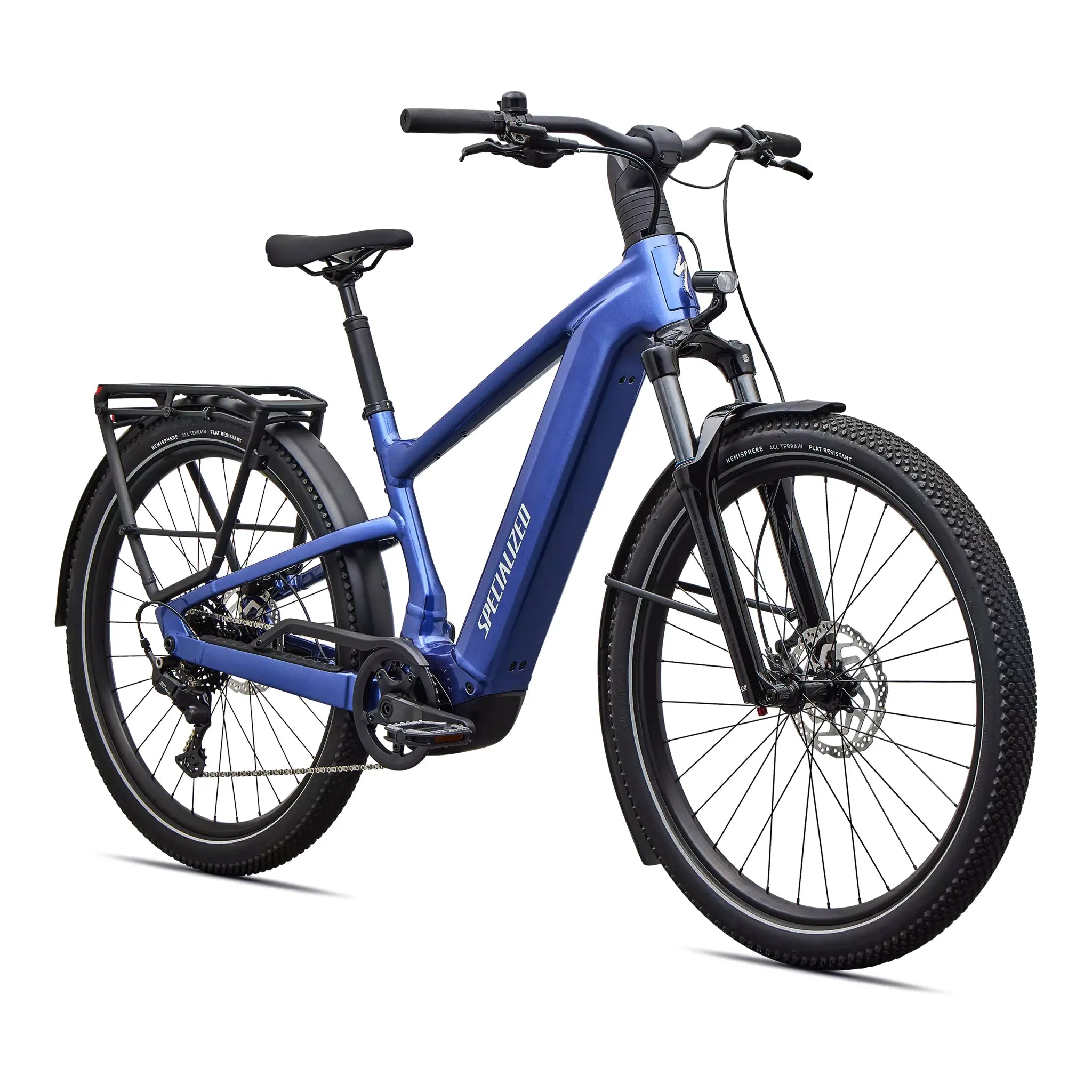

Specialized Turbo Vado 3 EVO 4.0
New
Shipping Canada Wide
Specialized Turbo Vado 3 EVO 4.0
$5,499.99
<p class="specParagraph">
<span class="specLead">Batterie</span
><span class="specList">Batterie 840Wh</span>
</p>
<p class="specParagraph">
<span class="specLead">Interface utilisateur/Télécommande</span
><span class="specList">Télécommande Turbo Ergonomique</span>
</p>
<p class="specParagraph">
<span class="specLead">Moteur</span
><span class="specList">Moteur Specialized 3.1, couple 105Nm, puissance 810W</span>
</p>
<p class="specParagraph">
<span class="specLead">Chargeur</span
><span class="specList">Chargeur Specialized 4amp</span>
</p>
<p class="specParagraph">
<span class="specLead">Collier de selle</span
><span class="specList">Alliage, 38,6mm</span>
</p>
<p class="specParagraph">
<span class="specLead">Cadre</span
><span class="specList"
>Cadre Vado 3, géométrie optimisée confort, batterie à entrée latérale</span
>
</p>
<p class="specParagraph">
<span class="specLead">Fourche</span
><span class="specList"
>Fourche suspension SR Suntour, débattement 120MM (100MM taille S), plongeur 34MM,
Axe traversant 15MM, roue 27,5"</span
>
</p>
<p class="specParagraph">
<span class="specLead">Frein avant</span
><span class="specList">Shimano BR-MT200, frein à disque hydraulique, 180mm</span>
</p>
<p class="specParagraph">
<span class="specLead">Frein arrière</span
><span class="specList">Shimano BR-MT200, frein à disque hydraulique, 180mm</span>
</p>
<p class="specParagraph">
<span class="specLead">Plateaux</span
><span class="specList">40 dents avec technologie de maintien de chaîne</span>
</p>
<p class="specParagraph">
<span class="specLead">Pédalier</span
><span class="specList">170MM, CL 55MM, AVEC BCD 110MM, NW 40T, AVEC CG</span>
</p>
<p class="specParagraph">
<span class="specLead">Carter de chaîne</span
><span class="specList">KIT,COUVERCLE CHAÎNE,ROUTE,PA FIT HT H1.2</span>
</p>
<p class="specParagraph">
<span class="specLead">Chaîne</span
><span class="specList">KMC eGlide pour CUES 11 vitesses</span>
</p>
<p class="specParagraph">
<span class="specLead">Dérailleur arrière</span
><span class="specList">Shimano CUES 9 vitesses</span>
</p>
<p class="specParagraph">
<span class="specLead">Manettes de vitesses</span
><span class="specList">Shimano CUES 9 vitesses avec affichage optique des vitesses</span>
</p>
<p class="specParagraph">
<span class="specLead">Cassette</span
><span class="specList">Shimano CUES 9 vitesses, 11-41t</span>
</p>
<p class="specParagraph">
<span class="specLead">Jantes</span
><span class="specList">29 avant, 27,5 arrière, largeur interne 30mm, 32 rayons</span>
</p>
<p class="specParagraph">
<span class="specLead">Rayons</span
><span class="specList">DT Swiss Elemental</span>
</p>
<p class="specParagraph">
<span class="specLead">Chambres à air</span
><span class="specList"
>Renforcé anti-crevaison 27,5X2,5/2,7, valve Schrader 60MM</span
>
</p>
<p class="specParagraph">
<span class="specLead">Moyeux arrière</span
><span class="specList">Shimano Freehub, disque Center Lock</span>
</p>
<p class="specParagraph">
<span class="specLead">Moyeux avant</span
><span class="specList">Shimano, disque center lock</span>
</p>
<p class="specParagraph">
<span class="specLead">Pneu avant</span
><span class="specList"
>Pneu Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27,5X2,6</span
>
</p>
<p class="specParagraph">
<span class="specLead">Pneu arrière</span
><span class="specList"
>Pneu Specialized Hemisphere Flat Resistant ALLTERRAIN Reflect 27,5X2,6</span
>
</p>
<p class="specParagraph">
<span class="specLead">Selle</span
><span class="specList">Bridge Sport, rails en acier, 155mm</span>
</p>
<p class="specParagraph">
<span class="specLead">Guidons</span
><span class="specList"
>Alliage, Relevé 34,4MM,31,8MM, Inclinaison arrière 13°, Inclinaison avant 7,8°, Embout de guidon 22,2MM,
690-730MM</span
>
</p>
<p class="specParagraph">
<span class="specLead">Potence</span
><span class="specList"
>Potence avec écran couleur intégré & Chargeur téléphone USB-C, 31,8MM</span
>
</p>
<p class="specParagraph">
<span class="specLead">Poignées</span
><span class="specList">Specialized Body Geometry</span>
</p>
<p class="specParagraph">
<span class="specLead">Tige de selle</span
><span class="specList">Suspension, débattement 40mm, 34,9mm</span>
</p>
<p class="specParagraph">
<span class="specLead">Sonnette</span><span class="specList">Sonnette</span>
</p>
<p class="specParagraph">
<span class="specLead">SWAT</span
><span class="specList"
>Porte-bagages arrière MIK HD 27,5 Kg avec élastiques intégrés</span
>
</p>
<p class="specParagraph">
<span class="specLead">Garde-boue</span><span class="specList">ENSEMBLE GARDE-BOUE</span>
</p>
<p class="specParagraph">
<span class="specLead">Phare avant</span
><span class="specList"
>PHARE AVANT, LEZYNE,1-E001-PRST-17C8MR-S, EBIKE POWER STVZO E500+. SUNTOR
MOBIE MOUNT, FIXATIONS NOIRES, CÂBLE 4X1500MM AVEC CONNECTEURS FASTON SÉRIE 110
MALE (#A110015BS2), AVEC RÉFLECTEUR, NOIR MAT AVEC LOGO NOIR BRILLANT</span
>
</p>
<p class="specParagraph">
<span class="specLead">Béquille</span
><span class="specList">BÉQUILLE, RÉGLABLE POUR 26PO-29PO</span>
</p>
<p class="specParagraph">
<span class="specLead">Porte-bagages</span
><span class="specList">KIT PORTE-BAGAGES ARRIÈRE, RACK A1.1, ALY</span>
</p>
<p class="specParagraph">
<span class="specLead">Feu arrière</span
><span class="specList">LIGHT,SPGL XER,LAME,SPANNINGA</span>
</p>
<p class="specParagraph">
<span class="specLead">Antivol vélo</span
><span class="specList"
>LOCK,BTRY,PLUTO,MÉCANIQUE, BLO SPE IT4 XP OE;FS</span
>
</p>
<p class="specParagraph">
<span class="specLead">Pédales</span
><span class="specList">Pédales Turbo, antidérapantes</span>
</p>
<p class="specParagraph">
<span class="specLead">Poids</span
><span class="specList">28,7 kg (63 lb, 4,4 oz) - Taille MD</span>
</p>
210000119857
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
Battery 840Wh battery
Motor Specialized 3.1 Motor, 105Nm torque, 810W power
Charger Specialized 4amp charger
UI/Remote Turbo Ergonomic remote
Seat Binder Alloy, 38.6mm
Frame Vado 3 frame, comfort optimized geometry, side entry battery
Fork SR Suntour suspension fork, 120MM of travel (100MM size S), Stanchion 34MM, 15MM Thru axle, 27.5" wheel
Front Brake Shimano BR-MT200, hydraulic disc, 180mm
Rear Brake Shimano BR-MT200, hydraulic disc, 180mm
Crankset 170mm, 55mm Chainline, w/BCD 110mm, NW 40T, w/ Chain Guard
Chainrings 40 Teeth with Chain Retention Technology
Chaincase Vado 3 Custom Chaincase
Chain KMC eGlide for 11-Speed CUES
Rear Derailleur Shimano CUES 9-Speed
Shift Levers Shimano CUES 9-Speed with Optical Gear Display
Cassette Shimano CUES 9-speed, 11-41t
Rims 29 front, 27.5 rear, 30mm inner width, 32h
Spokes DT Swiss Elemental
Inner Tubes Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
Rear Hub Shimano Freehub, Center Lock Disc
Front Hub Shimano, center lock disc
Front Tire Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Rear Tire Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Handlebars Alloy, Rise 34.4MM,31.8MM, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2MM, 690-730MM
Saddle Body Geometry, Rivo 2 Gel,168MM
Stem Stem w/ integrated Colored Display & USB-C Phone charger, 31.8MM
Grips Specialized Body Geometry
SeatPost Suspension, 40mm travel, 34.9mm
Bell Bell
Fenders Vado 3 Custom Alloy Profile Fenders
Headlight Lezyne Stvzo E500+ 500lm, Fork Mounted
Kickstand Vado 3 Custom Kickstand, With Adjustable Shoe
Rack Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
Taillight Spanninga Rack Integrated Rear Light With Brake Light
Bike Lock Mechanical Battery Lock With Key
SWAT MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)
Pedals Turbo Pedals, anti-slip
Weight 28.7 kg (63 lb, 4.4 oz) - Size MD
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Reach | 430 | 450 | 470 | 485 |
| B | Stack | 636 | 645 | 659 | 682 |
| C | Head Tube Angle | 67 | 68 | 68 | 68 |
| D | Front Centre | 772 | 734 | 460 | 784 |
| E | Bottom Bracket Drop | 66.5 | 66.5 | 66.5 | 66.5 |
| F | Wheelbase | 1185 | 1197 | 1222 | 1247 |
| G | Chainstay Length | 470 | 470 | 470 | 470 |
| H | Head Tube Length | 135 | 120 | 135 | 160 |
| I | Top Tube Length | 659 | 681 | 612 | 635 |
| J | Seat Tube Angle | 74° | 74° | 74° | 74° |
| K | Standover Height | 768 | 806 | 821 | 854 |
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Model Numbers
| Size | Model Number | ||
|---|---|---|---|
| Gloss Pacific Blue | Gloss Nebula Metallic | Gloss Sandstone Metallic | |
| S | 95127-5002 | 95127-5102 | 95127-5202 |
| M | 95127-5003 | 95127-5103 | 95127-5203 |
| L | 95127-5004 | 95127-5104 | 95127-5204 |
| XL | 95127-5005 | 95127-5105 | 95127-5205 |
