Get Ready to Rally

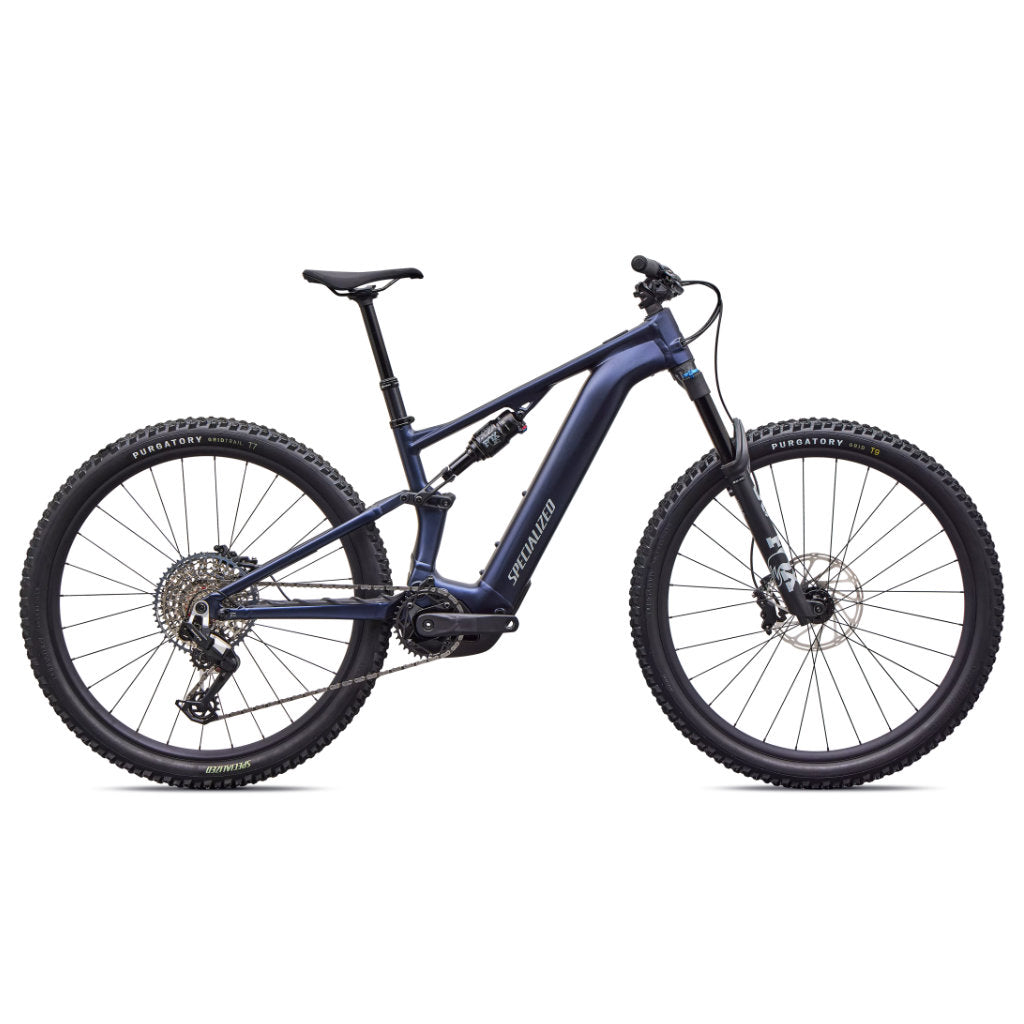

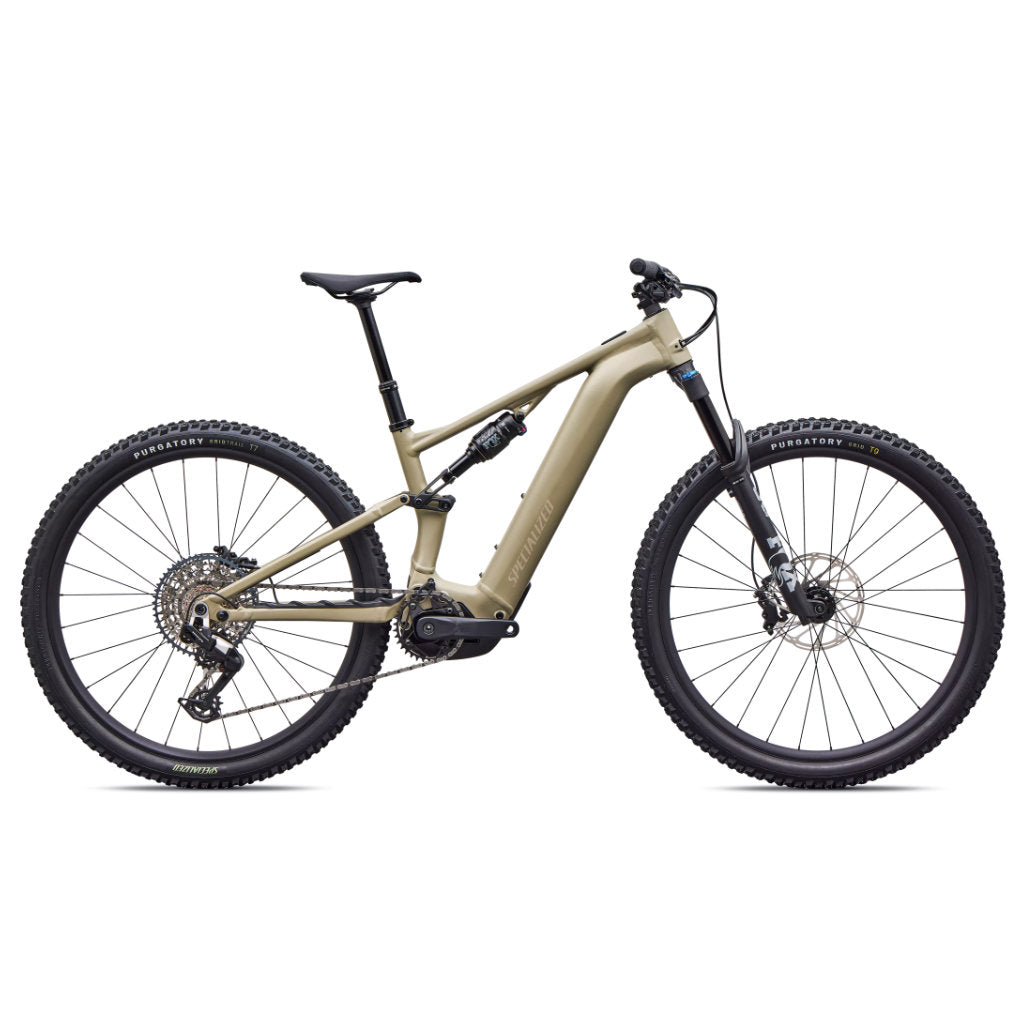

Specialized Turbo Levo R Comp Alliage
Le Specialized Turbo Levo R Comp Alloy est votre passeport vers des performances optimales, propulsé par un moteur Specialized 3.1 de 810W et une batterie de 840Wh qui combinent pour offrir un couple inébranlable et une longue autonomie.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Get Ready to Rally
Specialized Turbo Levo R Comp Alliage
Features
Specifications
Battery 840Wh battery
UI/Remote Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
Motor Specialized 3.1 Motor, 105Nm torque, 810W power
Charger Specialized 4amp charger
Seat Binder Alloy, 38.6mm
Frame M5 Aluminum, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel
Fork FOX 36 SL Performance, GRIP Damper, 140mm travel, 44mm offset, 15x110mm
Rear Shock FOX FLOAT Performance GENIE, Ride Dynamics Developed, 2-position compression adjust, 190x45mm
Front Brake SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Rear Brake SRAM Motive Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Chainrings SRAM 34t T-Type chainring, 104 BCD, steel
Chain SRAM 70 Transmission 12-Speed Flattop Chain
Shift Levers SRAM EAGLE 90T, single click, with MMX
Crankset SRAM Eagle 70, BROSE/ISIS, 160mm, 32T
Rear Derailleur SRAM Eagle 90 T-Type
Cassette SRAM GX Transmission, XS 1275, 10-52t
Spokes DT Swiss Elemental
Front Hub Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28H
Rear Hub Specialized Alloy Rear Hub Disc, Sealed Cardridge Bearings, 6-Bolt, 12X148mm Thru-Axle, 32H, Xd Steel Fhb
Front Tire Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire Specialized Purgatory, GRID Trail Casing, T7 Compound, 29x2.4 (S1 27.5x2.4)
Rims Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes Standard, Presta Valve
Stem Alloy Trail Stem, 35mm bar bore
Saddle Body Geometry Power Comp, steel rails
Handlebars Specialized Alloy, 30mm/40mm rise, 35mm, 800mm wide
Grips Specialized Trail Grips
SeatPost X-Fusion Manic, 34.9, S1-S2: 125mm, S3: 150mm, S4: 170mm, S5-S6: 190mm Travel, 0mm offset
SWAT SWAT internal downtube storage
Weight - Size S3 24.24 kg (53 lb, 7.0 oz)
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 420 | 450 | 475 | 500 | 525 | |
| B | Stack | 603 | 607 | 617 | 630 | 644 | 657 | |
| C | Headtube Angle | 64.8° | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° | |
| D | Seat Tube Length | 374.92 | 385 | 405 | 425 | 445 | 465 | |
| E | Front Centre | 716 | 736 | 770 | 801 | 833 | 864 | |
| F | Bottom Bracket Height | 339 | 339 | 339 | 339 | 339 | 339 | |
| G | Bottom Bracket Drop | 36.2 | 36.0 | 36.0 | 36.0 | 36.0 | 36.0 | |
| H | Wheelbase | 1161 | 1181 | 1215 | 1246 | 1277 | 1309 | |
| I | Chainstay Length | 447 | 447 | 447 | 447 | 447 | 447 | |
| J | Headtube Length | 96 | 100 | 110 | 125 | 140 | 155 | |
| K | Top Tube Length | 539 | 560 | 592 | 620 | 649 | 677 | |
| L | Seat Tube Angle | 76.91° | 77° | 77° | 77° | 77° | 77° | |
| M | Standover Height | 759 | 765 | 771 | 771 | 778 | 778 | |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| Satin East Sierras | Satin Metallic Deep Marine | |
| S1 | 95727-5301 | |
| S2 | 95727-5202 | 95727-5302 |
| S3 | 95727-5203 | 95727-5303 |
| S4 | 95727-5204 | 95727-5304 |
| S5 | 95727-5205 | 95727-5305 |
| S6 | 95727-5206 | 95727-5306 |
