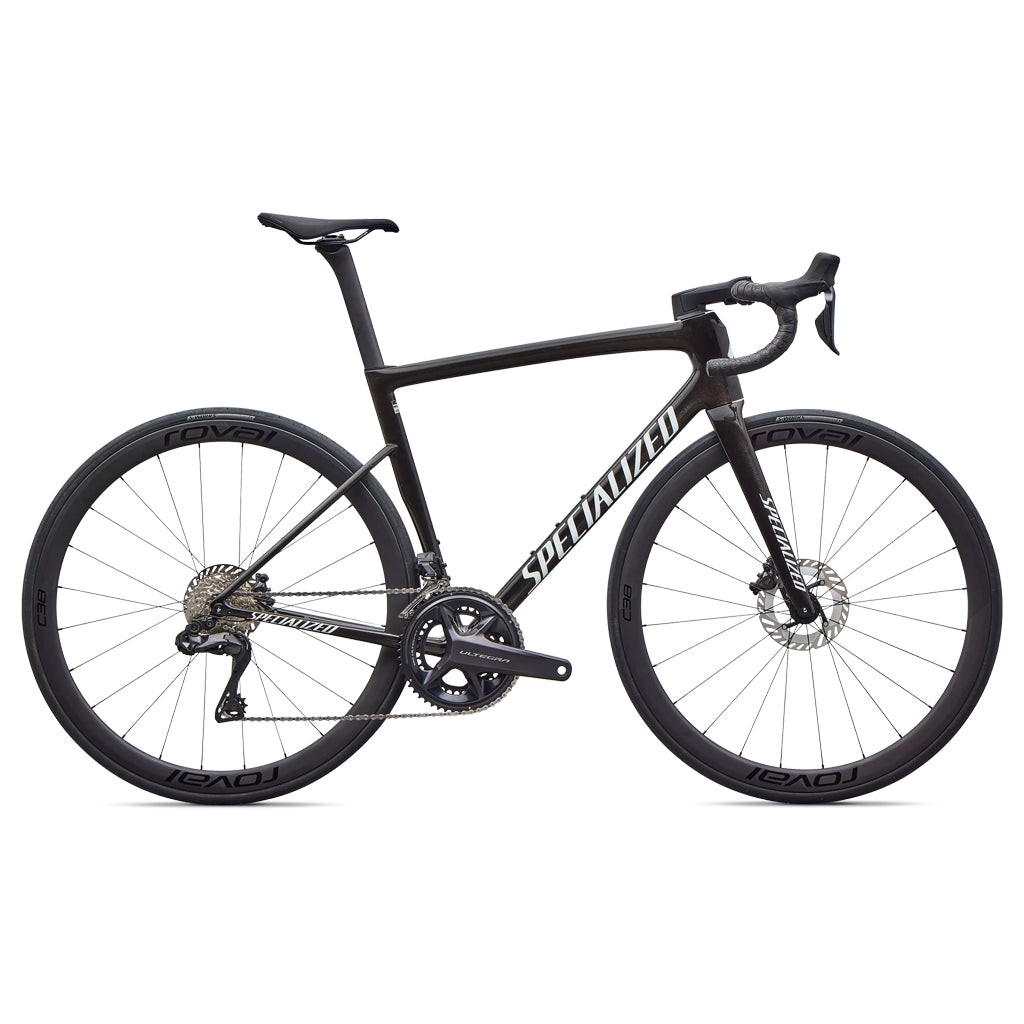

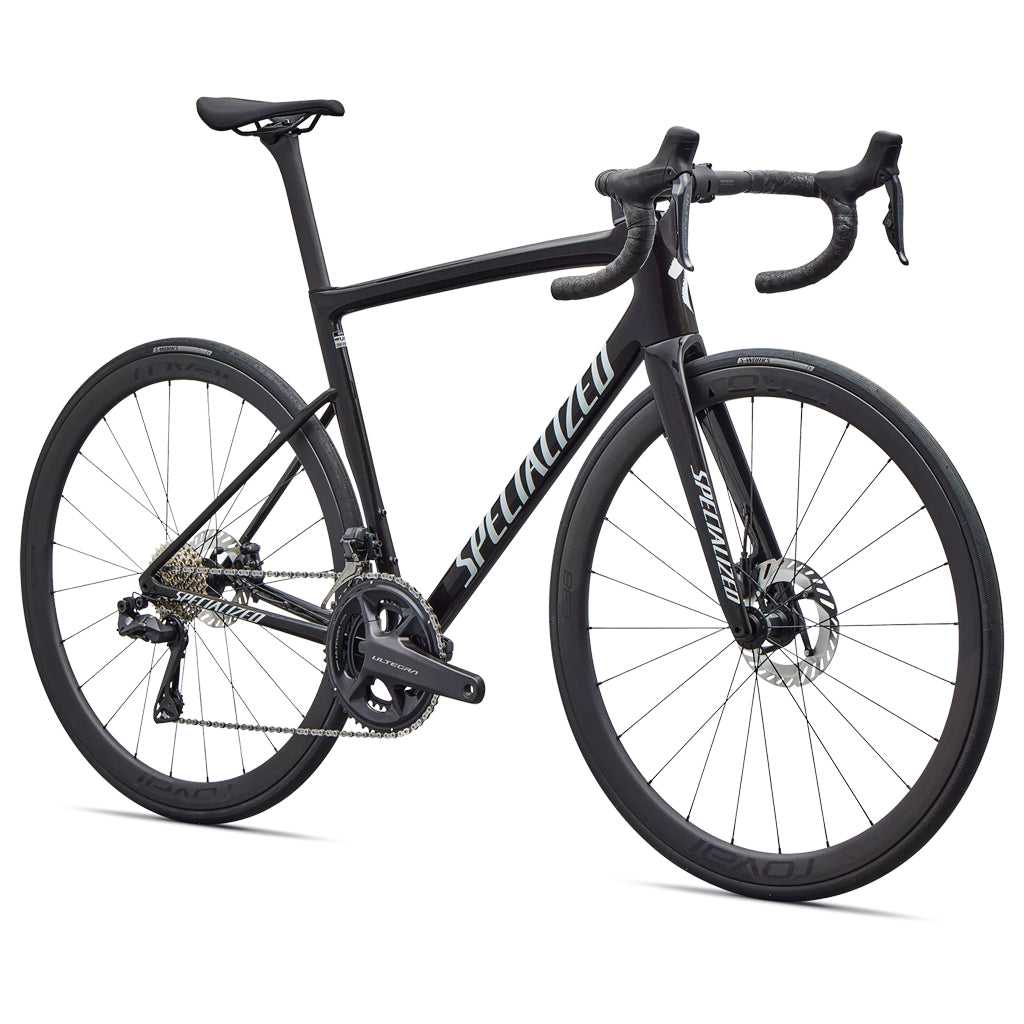

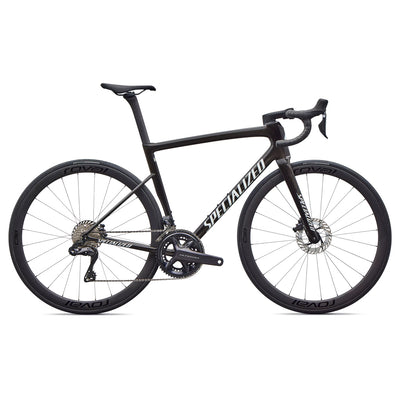

Specialized Tarmac SL8 Expert Shimano Ultegra Di2
Specifications
Frame Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake Shimano Ultegra Hydraulic Brake
Rear Brake Shimano Ultegra Hydraulic Brake
Shift Levers Shimano Ultegra Di2 R8170, hydraulic disc
Front Derailleur Shimano Ultegra Di2 R8150, braze-on
Rear Derailleur Shimano Ultegra Di2 R8150, 12-speed
Cassette Shimano Ultegra, 12-speed, 11-30t
Crankset Shimano Ultegra R8100. 52/36t
Bottom Bracket Shimano Threaded BSA BB
Chain Shimano XT M8100, 12-speed w/quick link
Front Wheel Roval C38, 21mm internal width carbon rim, tubeless ready
Rear Wheel Roval C38, 21mm internal width carbon rim, tubeless ready
Front Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Rear Tire S-Works Turbo, 120 TPI, folding bead, BlackBelt protection, 700x26mm
Inner Tubes Turbo Ultralight, 48mm Presta valve
Handlebars Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach
Stem Tarmac integrated stem, 6-degree
Tape Supacaz Super Sticky Kush
Saddle Body Geometry Power Expert
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Seat Binder Tarmac integrated wedge
Headset Stem headset spacers kit for SL7 stem & Roval Rapide cockpit use
Weight 7.18 kg (15 lb, 13.3 oz) – Size 56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Angle de direction | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Longueur de la base avant | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Hauteur du boitier de pédalier | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Empattement | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Longueur bases | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Hauteur de direction | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Longueur du tube horizontal | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Angle du tube de selle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Hauteur de surplomb | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| Toutes les mesures en degrés ou millimètres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Obsidian Metallic |
|---|---|
| 44 | 94926-3044 |
| 49 | 94926-3049 |
| 52 | 94926-3052 |
| 54 | 94926-3054 |
| 56 | 94926-3056 |
| 58 | 94926-3058 |
| 61 | 94926-3061 |
