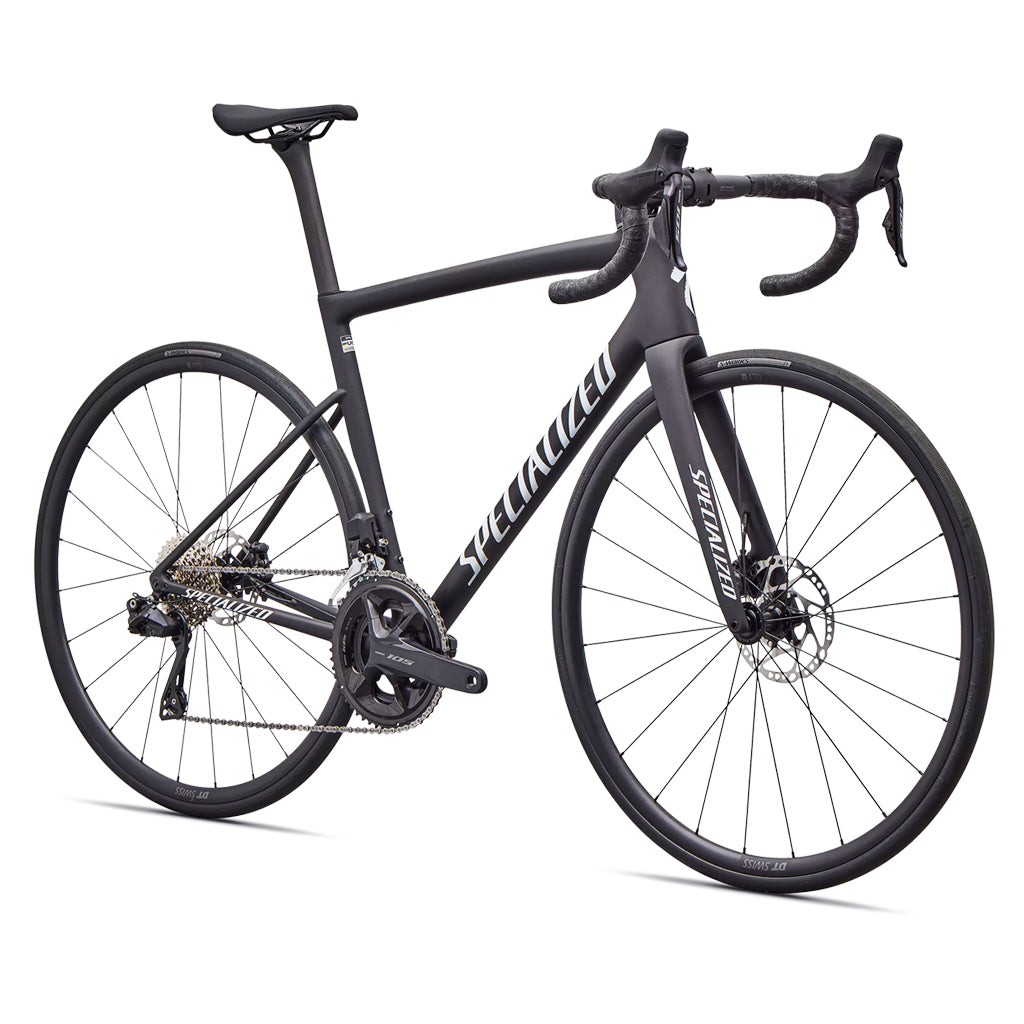

Specialized Tarmac SL8 Comp 105 Di2
Specifications
Cadre Tarmac SL8 FACT 10r Carbone, conçu pour le cycliste™, conçu en tunnel à vent, routage propre, BB fileté, axe traversant 12x142mm, disque à montage plat
Fourche FACT 10r Carbone, axe traversant 12x100mm, disque à montage plat
Frein avant Frein hydraulique Shimano 105
Frein arrière Frein hydraulique Shimano 105
Cassette Shimano 105, 12 vitesses, 11-34t
Boîtier de pédalier BB BSA filetée Shimano
Pédalier Shimano 105, 12 vitesses
Chaîne Shimano SLX, M7100, 12 vitesses
Leviers de changement Shimano 105 Di2 R7170, 12 vitesses
Dérailleur arrière Shimano 105 Di2 7150
Dérailleur avant Shimano 105 R7170, à souder
Roue avant Jante DT Swiss R470, largeur interne de 20 mm, prête pour tubeless, 24h, moyeu à axe traversant à roulements entièrement scellés Specialized, disque centerlock, rayons en acier inoxydable DT Swiss Champion 14G, écrous en laiton DT Swiss.
Roue arrière Jante DT Swiss R470, largeur interne de 20 mm, prête pour tubeless, 24h, moyeu à axe traversant à roulements entièrement scellés Specialized, disque centerlock, rayons en acier inoxydable DT Swiss Champion 14G, écrous en laiton DT Swiss
Pneu avant S-Works Turbo, 120 TPI, bead pliable, protection BlackBelt, 700x26mm
Pneu arrière S-Works Turbo, 120 TPI, bead pliable, protection BlackBelt, 700x26mm
Chambres à air Turbo Ultralight, valve Presta de 48 mm
Selle Body Geometry Power Sport, rails en acier
Tige de selle Tige de selle S-Works Tarmac SL8 en carbone, carbone FACT, décalage de 15 mm
Guidons Specialized Shallow Drop, 6061, 70x125mm, pince de 31.8mm
Ruban Supacaz Super Sticky Kush
Potence potence intégrée Tarmac, 6 degrés
Collier de selle coin intégré Tarmac
Jeu de direction Kit d'entretoises de jeu de direction pour tige SL7 et cockpit Roval Rapide
Poids 7,68 kg (16 lb, 14,9 oz) – Taille 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Angle de direction | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Longueur de la base avant | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Hauteur du boitier de pédalier | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Empattement | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Longueur bases | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Hauteur de direction | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Longueur du tube horizontal | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Angle du tube de selle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Hauteur de surplomb | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| Toutes les mesures en degrés ou millimètres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Satin Carbon | Gloss Red Tint |
|---|---|---|
| 44 | 94926-5044 | 94926-5944 |
| 49 | 94926-5049 | 94926-5949 |
| 52 | 94926-5052 | 94926-5952 |
| 54 | 94926-5054 | 94926-5954 |
| 56 | 94926-5056 | 94926-5956 |
| 58 | 94926-5058 | 94926-5958 |
| 61 | 94926-5061 | 94926-5961 |
