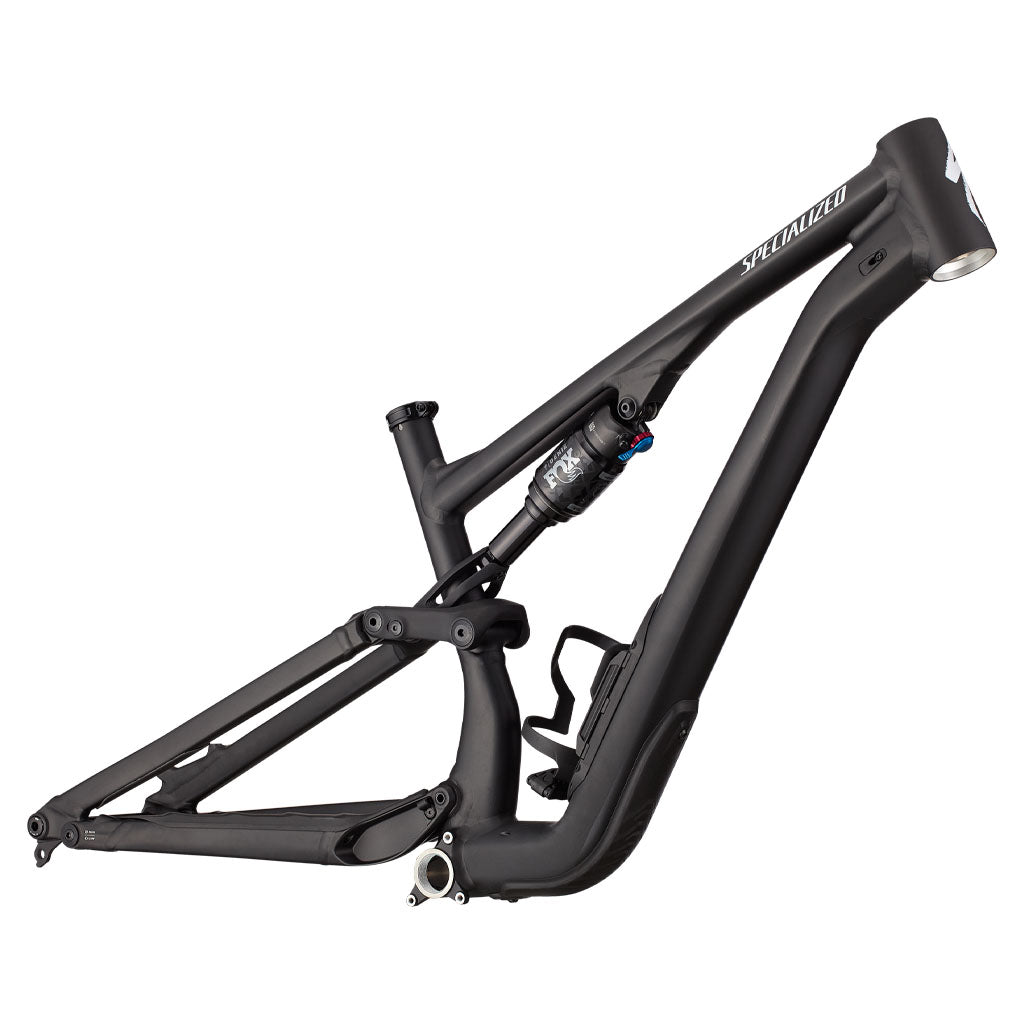

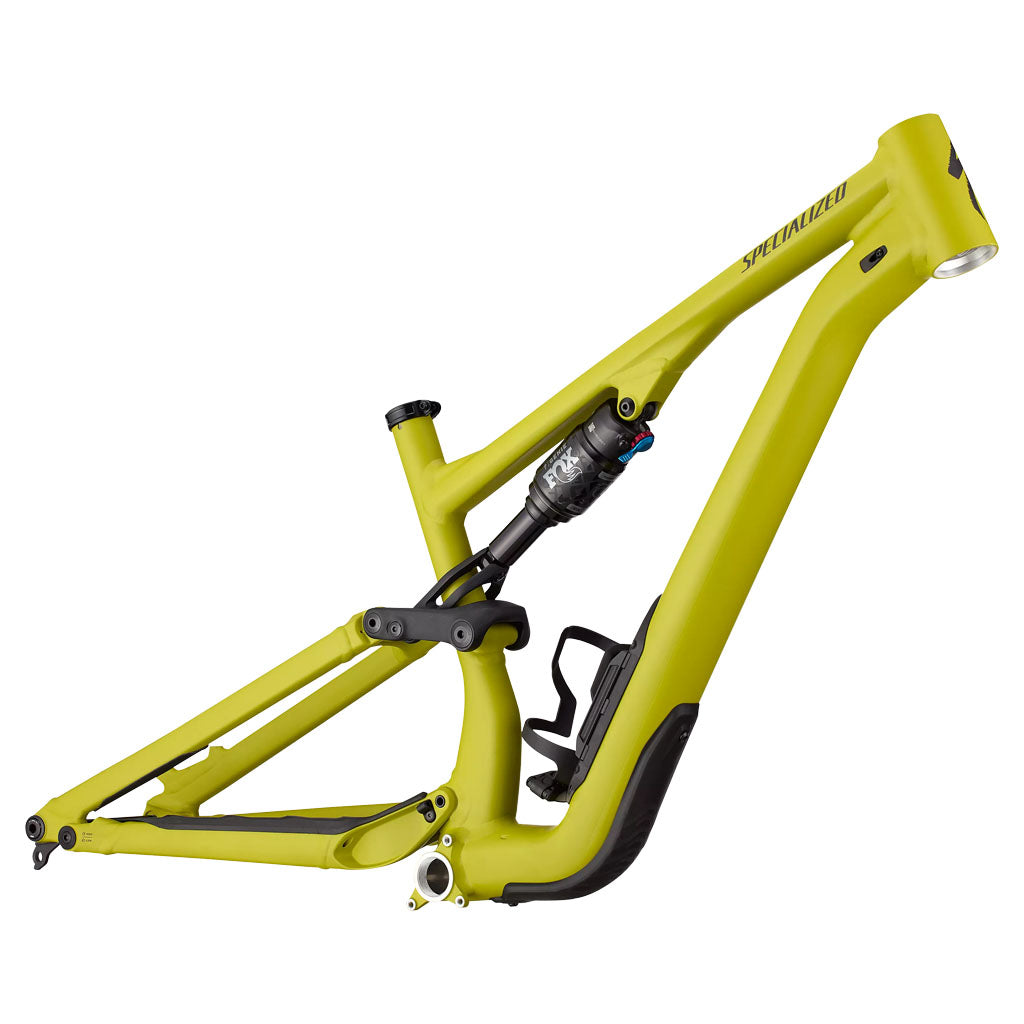

Specialized Stumpjumper 15 Cadre en alliage
Specifications
SWAT Stockage interne du tube de descente SWAT
Cadre Châssis en alliage M5 et arrière avec 145 mm de débattement
Amortisseur arrière FOX FLOAT Performance avec la technologie de choc Specialized GENIE, réglage de la dynamique de conduite Trail Tune, levier à 2 positions avec réglage LSR, S1:210x52,5mm, S2-S6:210x55mm
Poids 4,31 kg (9 lb, 8,0 oz) - Taille S4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 425 | 450 | 475 | 500 | 530 |
| B | Stack | 608 | 618 | 627 | 640 | 654 | 667 |
| C | Angle du tube de direction | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| D | Longueur du tube de selle | 385 | 385 | 405 | 425 | 445 | 465 |
| E | Longueur de la base avant | 720 | 751 | 780 | 812 | 843 | 879 |
| F | Hauteur du boitier de pédalier | 334 | 337 | 337 | 337 | 337 | 337 |
| G | Hauteur du boitier de pédalier | 41 | 38 | 38 | 38 | 38 | 38 |
| H | Empattement | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
| I | Longueur bases | 430 | 432 | 435 | 435 | 445 | 445 |
| J | Longueur du tube de direction | 95 | 100 | 110 | 125 | 140 | 155 |
| K | Longueur du tube horizontal | 541 | 573 | 595 | 624 | 647 | 677 |
| L | Angle du tube de selle | 77° | 76.5° | 77° | 76.9° | 77.3° | 77.6° |
| M | Hauteur de surplomb | 738 | 751 | 745 | 745 | 745 | 751 |
| Toutes les mesures en degrés ou millimètres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Part Numbers
| Size | Model Number | Satin Obsidian | Satin Olive Green |
|---|---|---|
| S1 | 73325-7001 | 73325-7201 |
| S2 | 73325-7002 | 73325-7202 |
| S3 | 73325-7003 | 73325-7203 |
| S4 | 73325-7004 | 73325-7204 |
| S5 | 73325-7005 | 73325-7205 |
| S6 | 73325-7006 | 73325-7206 |
