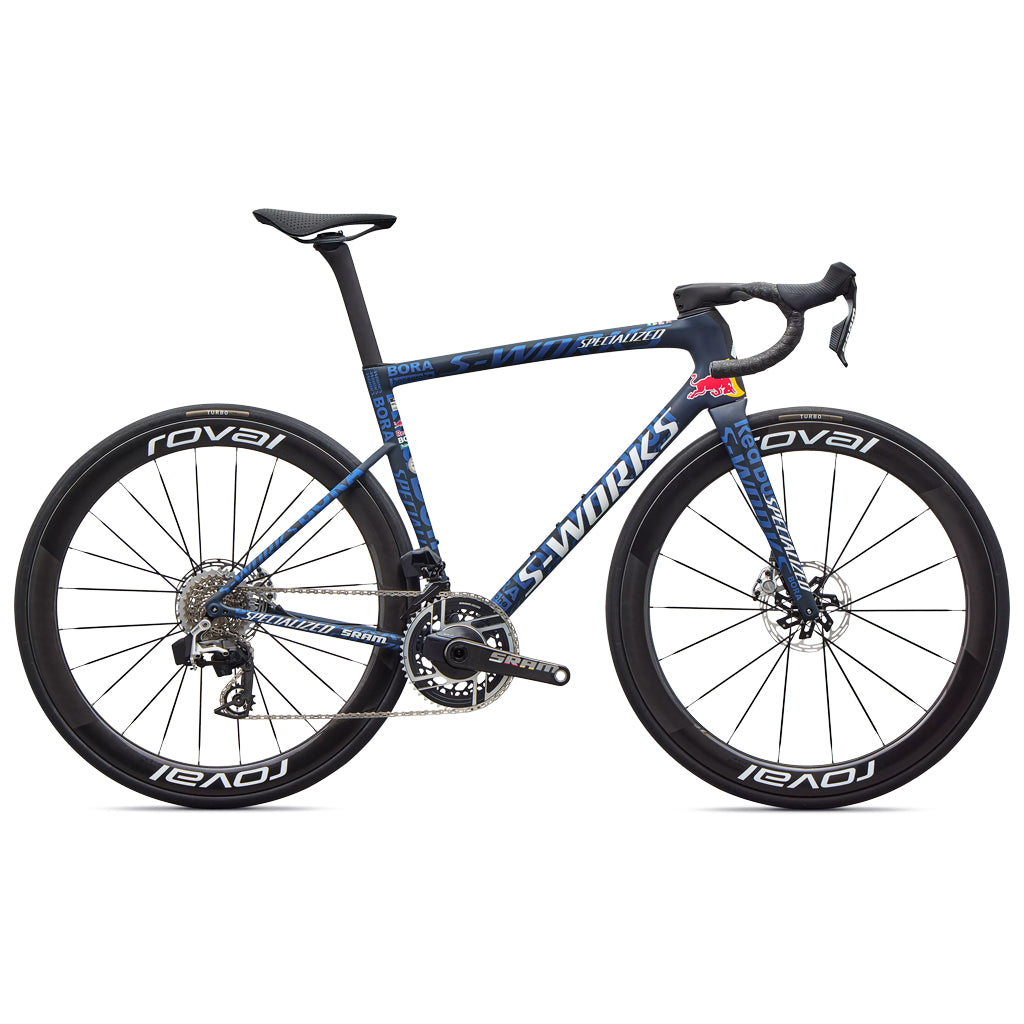

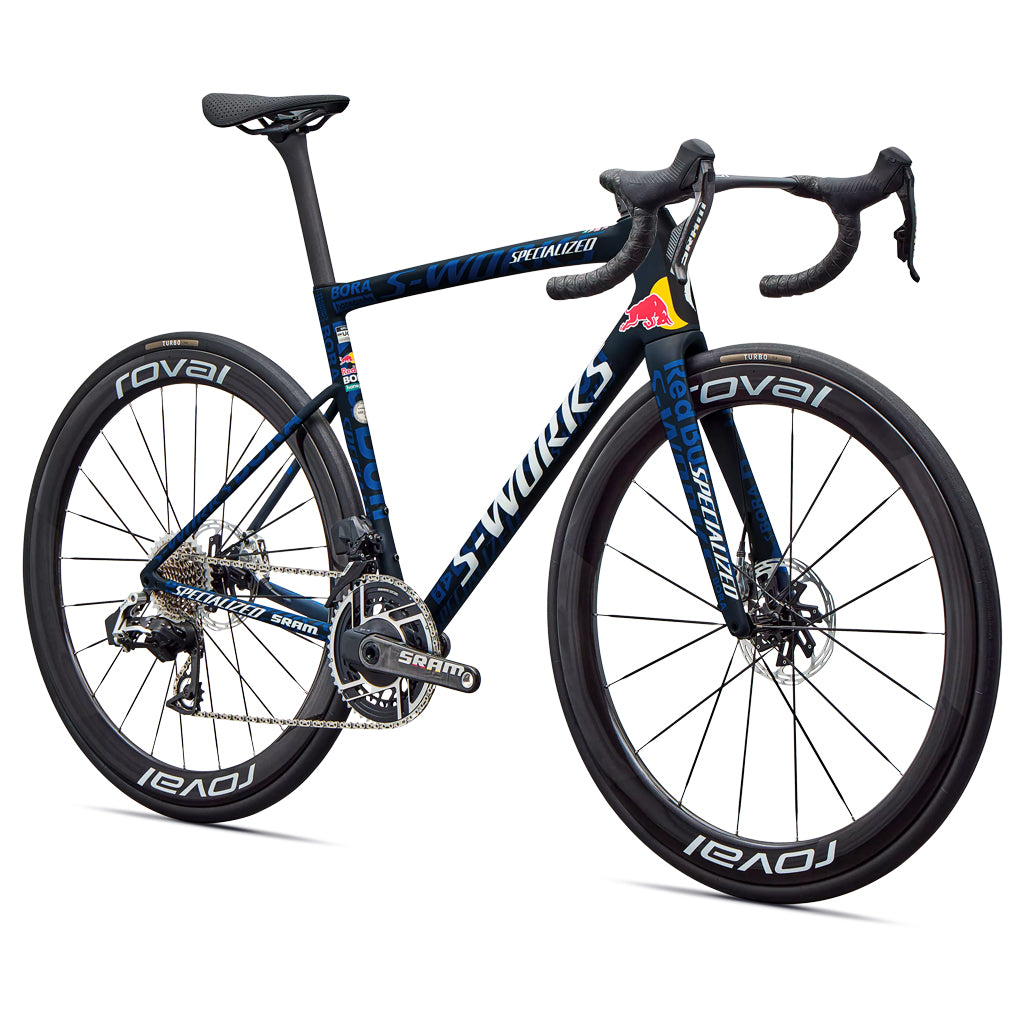

Specialized S-Works Tarmac SL8 LTD Red Bull 2025 TdF
Specifications
Cadre S-Works Tarmac SL8 FACT 12r Carbone, conçu pour le cycliste en premier, conçu en soufflerie, routage propre, BB fileté, axe traversant 12x142mm, disque à montage plat
Fourche S-Works FACT 12r Carbone, 12x100mm axe traversant, disque à montage plat
Guidons Cockpit Roval Rapide, Bar/Stem intégré avec support d'accessoire inclus
Potence Inclus dans le guidon
Ruban Supacaz Super Sticky Kush
Selle S-Works Power avec Miroir
Tige de selle Tige de selle S-Works Tarmac SL8 en carbone, carbone FACT, décalage de 15 mm
Frein avant SRAM RED AXS, disque hydraulique
Frein arrière SRAM RED AXS, disque hydraulique
Collier de selle coin intégré Tarmac
Leviers de changement SRAM RED AXS, disque hydraulique
Dérailleur avant SRAM RED AXS, à souder
Dérailleur arrière SRAM RED XG-1290, 12 vitesses
Cassette SRAM RED XG-1290, 12 vitesses, 10-33t
Chaîne SRAM RED 12 vitesses
Pédalier SRAM RED AXS Power Meter, 48/35t
Boîtier de pédalier SRAM DUB BSA 68
Roue avant Roval Rapide CLX III, Tubeless, jante en carbone de 21 mm de largeur interne, profondeur de 51 mm, conçu en soufflerie, moyeu Roval LF18F, 18h, rayons Arris MTO-255 Straight Pull (renforcés en fibre de carbone BioNylon, embouts en Ti), Logo blanc
Roue arrière Roval Rapide CLX III, Tubeless, jante en carbone de 21 mm de largeur interne, profondeur de 48,5 mm, conçu en soufflerie, moyeu Roval LF19R, 24h, rayons Arris MTO-255 Straight Pull (renforcés en fibre de carbone BioNylon, embouts en Ti), Logo blanc
Pneu avant S-Works Turbo TLR Race Tire, 700x28c
Pneu arrière S-Works Turbo TLR Race Tire, 700x28c
Chambres à air Valve Presta standard 80mm
Poids 6,64 kg (14 lb, 10,2,3 oz) Poids Taille 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Angle de direction | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Longueur de la base avant | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Hauteur du boitier de pédalier | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Empattement | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Longueur bases | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Hauteur de direction | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Longueur du tube horizontal | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Angle du tube de selle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Hauteur de surplomb | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| Toutes les mesures en degrés ou millimètres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Red Bull 2025 TdF |
|---|---|
| 44 | 94926-0944 |
| 49 | 94926-0949 |
| 52 | 94926-0952 |
| 54 | 94926-0954 |
| 56 | 94926-0956 |
| 58 | 94926-0958 |
| 61 | 94926-0961 |
