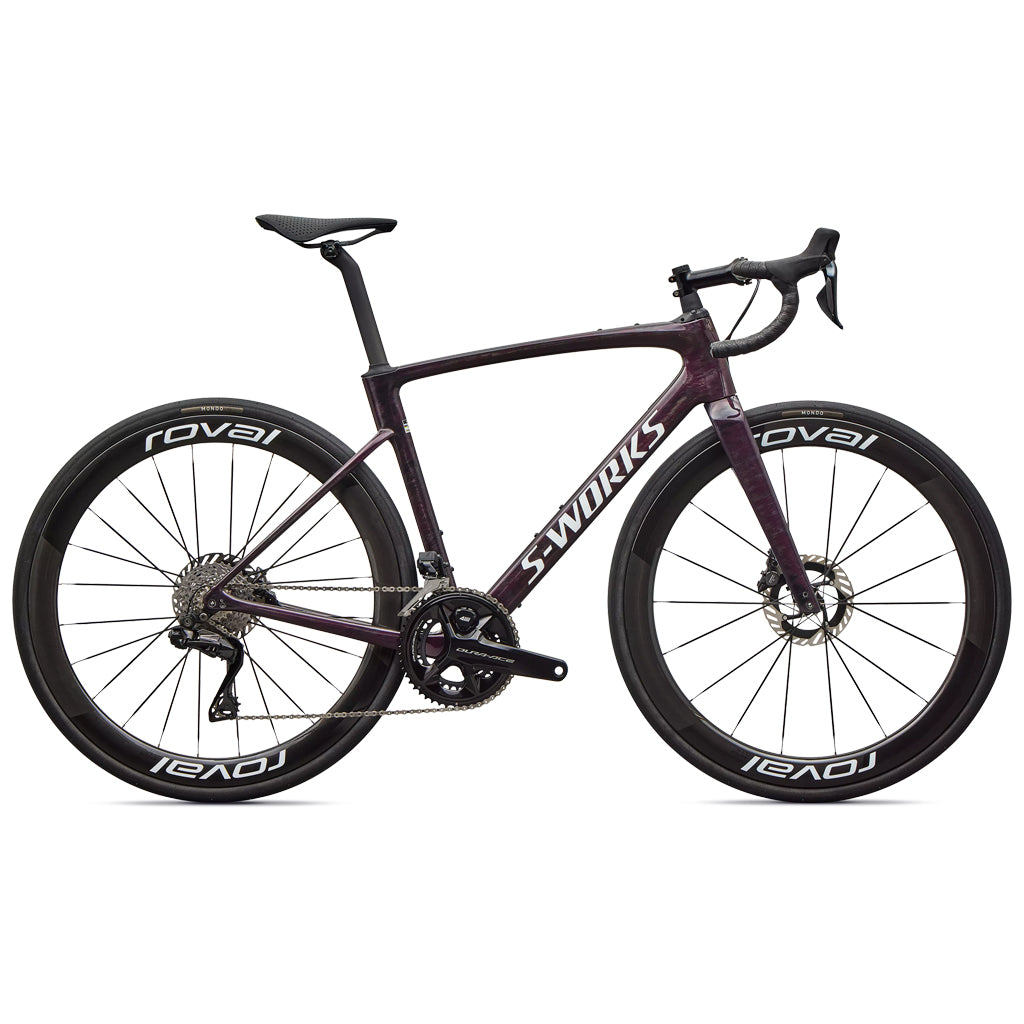

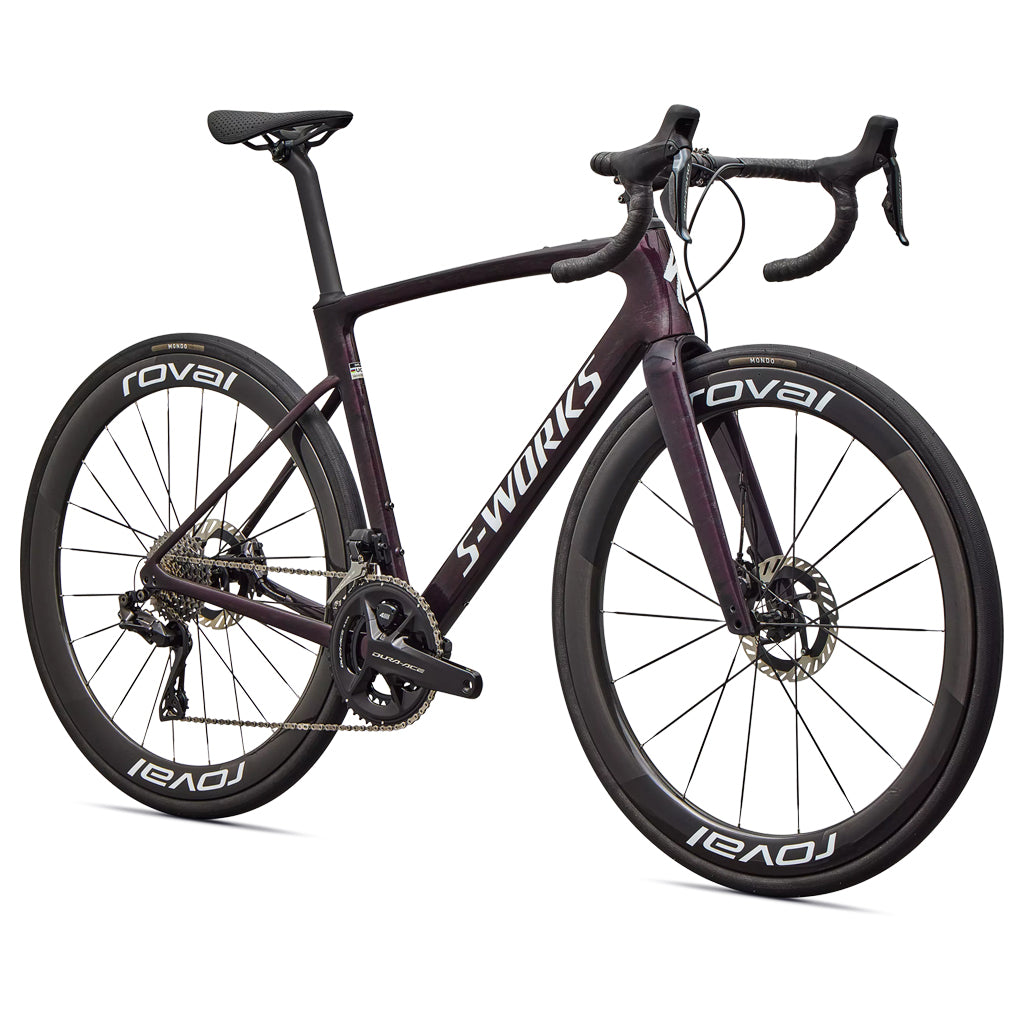

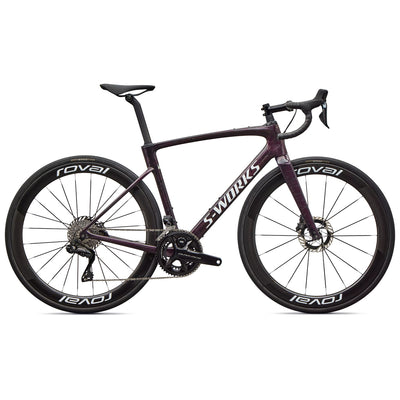

Specialized S-Works Roubaix SL8 Shimano Dura-Ace Di2
Specifications
Cadre FACT 12R, Rider First Engineered™ (RFE), tubes de la bibliothèque de formes FreeFoil, BB fileté, axe traversant 12x142mm, disque à montage plat
Fourche Future Shock 3.3 avec Smooth Boot, FACT Carbon 12x100mm, axe traversant, montage plat disque
Frein avantShimano Dura-Ace BR-R9270 disque hydraulique
Frein arrièreShimano Dura-Ace BR-R9270 disque hydraulique
Leviers de changementShimano Dura-Ace R9270, disque hydraulique
Dérailleur avantShimano Dura-Ace R9250, à souder
Dérailleur arrièreShimano Dura-Ace R9250, 12 vitesses
Pédalier Shimano Dura-Ace R9200, HollowTech II, 12 vitesses avec capteur de puissance double face 4iiii Precision Pro 50/34t
CassetteShimano Dura-Ace, 12 vitesses, 11-34t
Boîtier de pédalierShimano Dura-Ace, BB-R9100
ChaîneShimano XTR M9100, 12 vitesses avec maillon rapide
Pneus avant et arrièrePneu Mondo TLR Endurance, 700x32c, GRIPTON T2/T5
Roue avant Roval Rapide CLX III, Tubeless, jante en carbone de 21 mm de largeur interne, 51 mm de profondeur, conçu en tunnel à vent, moyeu Roval LF18-F avec roulements DT Ceramic Sinc, 18h, rayons en carbone
Roue arrière Roval Rapide CLX III, Tubeless, jante en carbone de 21 mm de largeur interne, 48 mm de profondeur, conçu en tunnel à vent, moyeu Roval LF19-R avec roulements DT Ceramic Sinc, 24h, rayons en carbone
Chambres à air700x28/42mm, valve Presta de 60mm
Ruban Supacaz Super Sticky Kush
Collier de selle Collier de serrage caché
Selle S-Works Power avec Miroir
Guidons Guidon en carbone Roval Alpinist, 125 mm de chute, 75 mm de portée
Potence Potence Roval Alpinist, alliage, boulons en titane, élévation de 6 degrés
Tige de selle S-Works Pave
Poids 7,61 kg (16 lb, 12,4 oz) Taille - 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 353 | 363 | 370 | 381 | 389 | 397 | 403 | 409 |
| B | Stack | 543 | 549 | 566 | 585 | 605 | 630 | 665 | 685 |
| C | Angle de direction | 69.3° | 70.8° | 71.5° | 72.3° | 73° | 73° | 73.5° | 73.5° |
| D | Longueur de la base avant | 589 | 587 | 593 | 598 | 604 | 620 | 631 | 634 |
| E | Hauteur du boitier de pédalier | 80 | 80 | 80 | 78 | 78 | 78 | 78 | 78 |
| F | Empattement | 994 | 992 | 998 | 1005 | 1012 | 1031 | 1042 | 1054 |
| G | Longueur bases | 418 | 418 | 418 | 420 | 420 | 423 | 423 | 423 |
| H | Hauteur de direction | 90 | 90 | 105 | 122 | 140 | 168 | 202 | 222 |
| I | Longueur du tube horizontal | 503 | 523 | 534 | 550 | 569 | 584 | 600 | 618 |
| J | Angle du tube de selle | 75° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| K | Hauteur de surplomb | 686 | 719 | 747 | 766 | 787 | 809 | 847 | 865 |
| Toutes les mesures en degrés ou millimètres | |||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Carbon |
|---|---|
| 44 | 94426-0244 |
| 49 | 94426-0249 |
| 52 | 94426-0252 |
| 54 | 94426-0254 |
| 56 | 94426-0256 |
| 58 | 94426-0258 |
| 61 | 94426-0261 |
