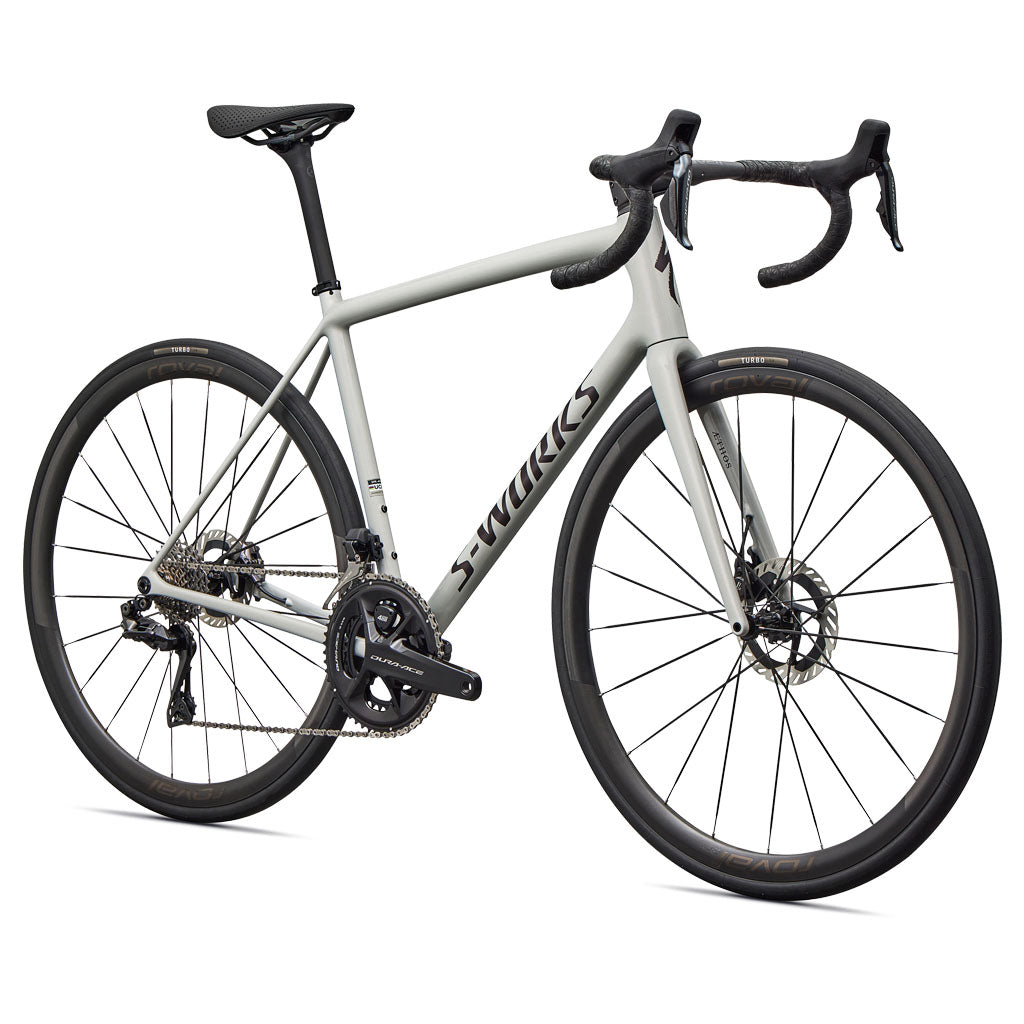

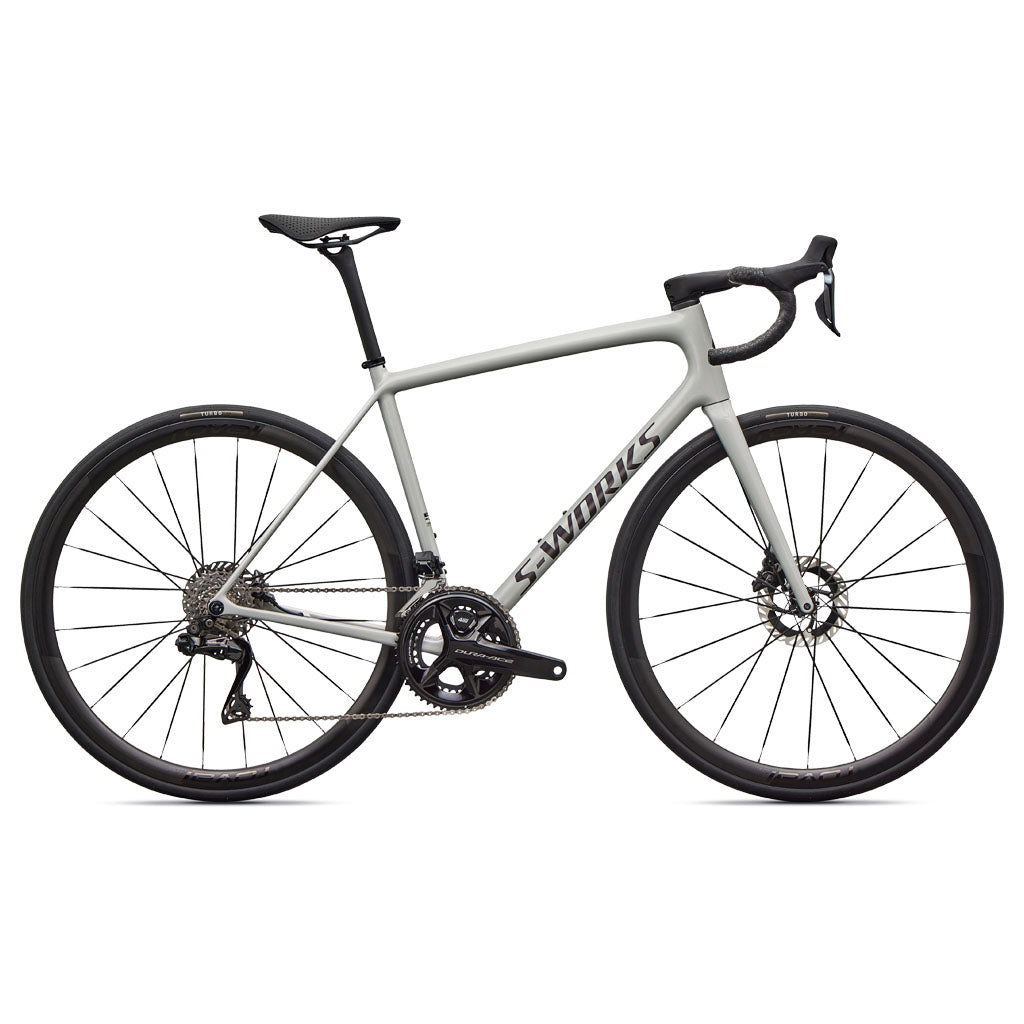

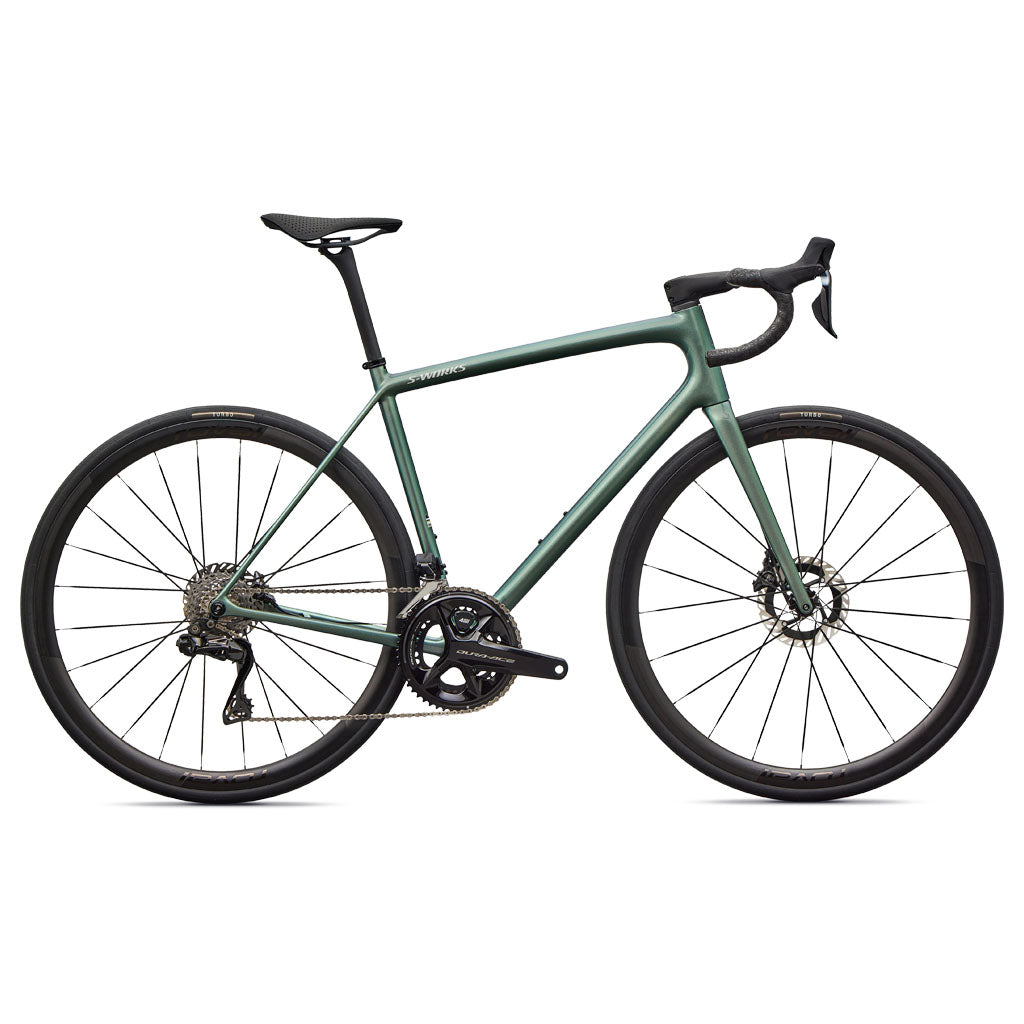

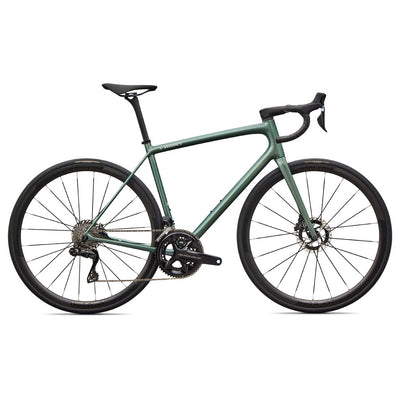

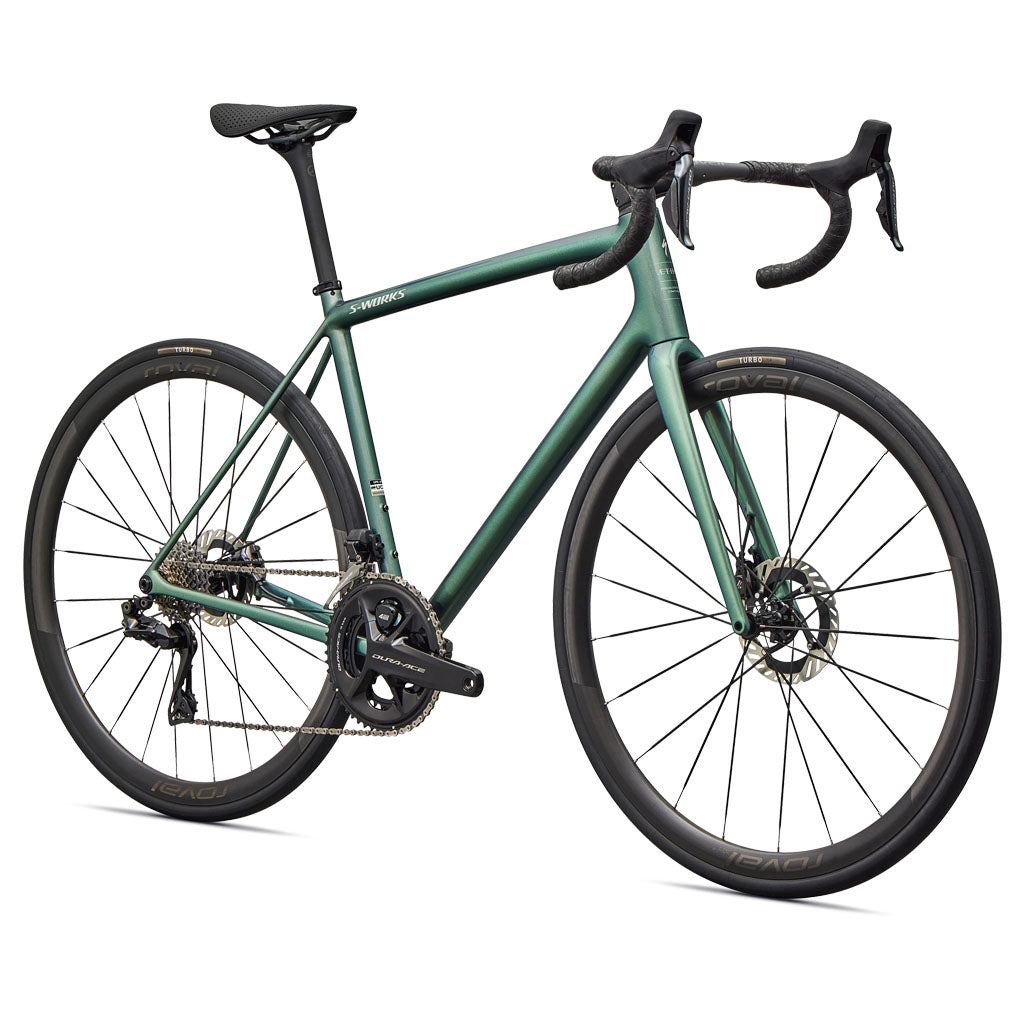

Specialized S-Works Aethos 2 Dura-Ace Di2
Specifications
Cadre S-Works Aethos 2 FACT 12r Carbone, Rider First Engineered™, BB fileté, routage de câbles caché, axe traversant 12x142 mm, disque à montage plat
Fourche S-Works Aethos 2 FACT 12r Carbone, axe traversant 12x100 mm, disque à montage plat
Guidons Roval Alpinist Cockpit II, Guidon/intégré
Leviers de changement Shimano Dura-Ace Di2 R9270, disque hydraulique
Frein avant Shimano Dura-Ace BR-R9270 frein hydraulique
Frein arrière Shimano Dura-Ace BR-R9270 frein hydraulique
Dérailleur avant Shimano Dura-Ace Di2 R9250, à souder
Dérailleur arrière Shimano Dura-Ace Di2 R9250, 12 vitesses
Cassette Shimano Dura-Ace, 12 vitesses, 11-30t
Chaîne Shimano XTR M9100, 12 vitesses avec maillon rapide
Pédalier Shimano Dura-Ace R9200, HollowTech II, 12 vitesses avec capteur de puissance dual-sided 4iiii Precision Pro, 52/36t
Boîtier de pédalier Shimano Dura-Ace, BB-R9100
Roue avant Roval Alpinist CLX III, Tubeless, jante en carbone de 33 mm de profondeur, 26,5 mm de largeur et 21 mm de largeur interne, moyeu Roval LF21-F 21H avec roulements en céramique Sinc, rayon aérodynamique composite Roval par ARRIS avec embouts en Ti
Roue arrière Roval Alpinist CLX III, Tubeless, jante en carbone de 33 mm de profondeur, 26,5 mm de largeur et 21 mm de largeur interne, moyeu Roval LF19-R 24H avec roulements en céramique Sinc, rayon aérodynamique composite Roval par ARRIS avec embouts en Ti
Pneus avant et arrière S-Works Turbo TLR Pneu de course, 700x28c
Chambres à air 700x25-35, Valve Presta 50 mm, TPU
Ruban Supacaz Super Sticky Kush
Selle S-Works Power avec Miroir
Tige de selle Roval Alpinist Tige de selle en carbone, pince légère
Collier de selle Alliage Specialized, 30,0 mm, boulon en titane
Poids 6,05 kg (13 lb, 5,4 oz) Taille - 56 cm
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 373 | 377 | 384 | 391 | 398 | 404 |
| B | Stack | 522 | 538 | 559 | 580 | 606 | 627 |
| C | Angle de direction | 71.4° | 72.1° | 72.5° | 73° | 73° | 73.5° |
| D | Longueur de la base avant | 581 | 584 | 594 | 599 | 614 | 621 |
| E | Hauteur du boitier de pédalier | 76.5 | 76.5 | 75 | 75 | 73.5 | 73.5 |
| F | Empattement | 978 | 981 | 992 | 998 | 1013 | 1020 |
| G | Longueur bases | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Hauteur de direction | 114 | 128 | 150 | 169 | 198 | 218 |
| I | Longueur du tube horizontal | 508 | 526 | 544 | 557 | 572 | 584 |
| J | Angle du tube de selle | 74° | 74° | 74° | 74° | 75.5° | 74.5° |
| K | Hauteur de surplomb | 719 | 737 | 759 | 779 | 805 | 834 |
| Toutes les mesures en degrés ou millimètres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Premium Fjord Metallic | Gloss Dolomite Metallic |
|---|---|---|---|
| 49 | 97226-0049 | 97226-0149 | |
| 52 | 97226-0052 | 97226-0152 | |
| 54 | 97226-0054 | 97226-0154 | |
| 56 | 97226-0056 | 97226-0156 | |
| 58 | 97226-0058 | 97226-0158 | |
| 61 | 97226-0061 | 97226-0161 | |
