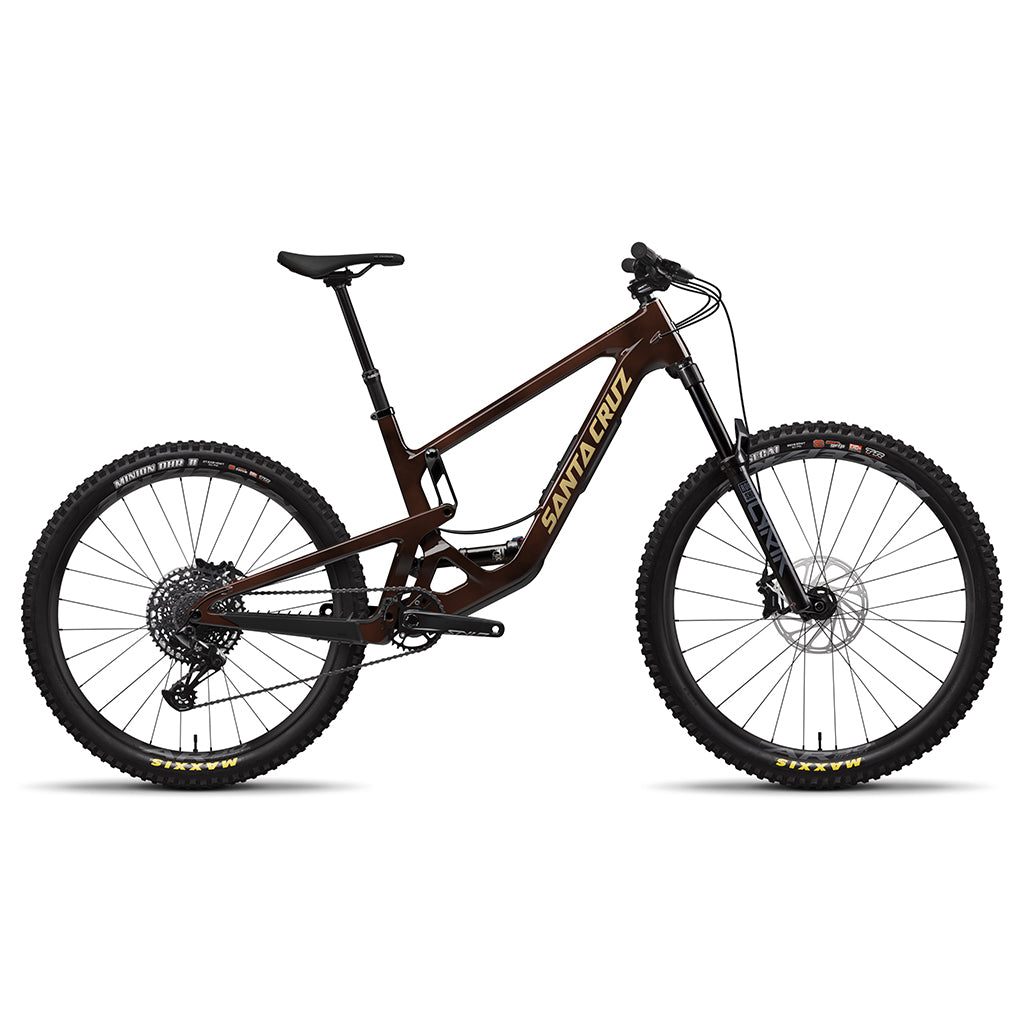

Santa Cruz Bronson 5 C R
Specifications
CADRE Carbone C MX 150mm de débattement VPP™
AMORTISSEUR ARRIÈRE FOX Float Rhythm, 230x57.5
FOURCHE RockShox Lyrik Base, 160mm
DÉRAILLEUR ARRIÈRE SRAM NX Eagle, 12 vitesses
DÉRAILLEUR SRAM NX Eagle, 12 vitesses
CASSETTE SRAM PG1230, 12 vitesses, 11-50t
CHAÎNE SRAM NX Eagle, 12 vitesses
BOÎTIER DE PÉDALES SRAM DUB 68/73mm BB Fileté
POTENCE FSA IS-2/47/42 ACB ou Cane Creek 10 IS Intégré
PNEU ARRIÈRE Maxxis Minion DHR II 27.5”x2.4”, 3C MaxxTerra, EXO+
PNEU AVANT Maxxis Assegai 29”x2.5”, 3C, MaxxGrip, EXO+
MOYEU AVANT SRAM MTH 716, 15x110, 6-Bolt, 32h
JANTE AVANT Reserve 30|TR AL -ou- Raceface AR30 29"
MOYEU ARRIÈRE SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
JANTE ARRIÈRE Reserve 30|TR AL -ou- Raceface AR30 27.5"
ROTOR AVANT Avid Centerline, 200mm
ROTOR ARRIÈRE Avid Centerline, 200mm
FREINS SRAM DB8 Stealth
PÉDALIER SRAM Descendant Eagle 148 DUB 32t
GUIDON Barre en alliage Burgtec
POTENCE OneUp Stem, 42mm -ou- Burgtec Enduro Stem, 42mm
SELLE Fizik Monte -ou- SDG Bel-Air V3, Acier
TIGE DE SELLE SDG Tellis Dropper, 31.6
POIGNÉES/ RUBAN DE GUIDON Poignées de maison Santa Cruz Bicycles
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach | 435 | 432 | 460 | 457 | 480 | 478 | 500 | 498 | 525 | 523 |
| B | Stack | 623 | 625 | 632 | 634 | 641 | 643 | 659 | 661 | 668 | 670 |
| C | Angle de direction | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 |
| D | Longueur du tube de selle | 380 | 380 | 405 | 405 | 430 | 430 | 460 | 460 | 500 | 500 |
| E | Longueur de la base avant | 742 | 771 | 801 | 801 | 825 | 825 | 854 | 854 | 883 | 883 |
| F | Hauteur du boitier de pédalier | 344 | 341 | 344 | 341 | 344 | 341 | 344 | 341 | 344 | 341 |
| G | F/R Hauteur du boitier de pédalier | 29/10 | 32/13 | 29/10 | 32/13 | 29/10 | 32/13 | 29/10 | 32/13 | 29/10 | 32/13 |
| H | Empattement | 1209 | 1209 | 1240 | 1240 | 1267 | 1268 | 1299 | 1299 | 1331 | 1332 |
| I | Longueur de la base arrière | 437 | 438 | 439 | 440 | 442 | 443 | 445 | 446 | 448 | 449 |
| J | Hauteur de direction | 110 | 110 | 120 | 120 | 130 | 130 | 150 | 150 | 160 | 160 |
| K | Longueur du tube horizontal | 527 | 573 | 596 | 596 | 614 | 615 | 637 | 638 | 663 | 664 |
| L | Angle du tube de selle | 77.6 | 77.3 | 77.9 | 77.6 | 78.2 | 77.9 | 78.3 | 78.0 | 78.4 | 78.1 |
| M | Hauteur de surplomb | 722 | 722 | 723 | 719 | 726 | 721 | 727 | 723 | 731 | 722 |
| Toutes les mesures sont en degrés ou en millimètres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| XS | 4'8" - 5'1" | 142 - 155cm |
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'5" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'1" | 175 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'4" - 6'7" | 193 - 201cm |
