Be in your Element.

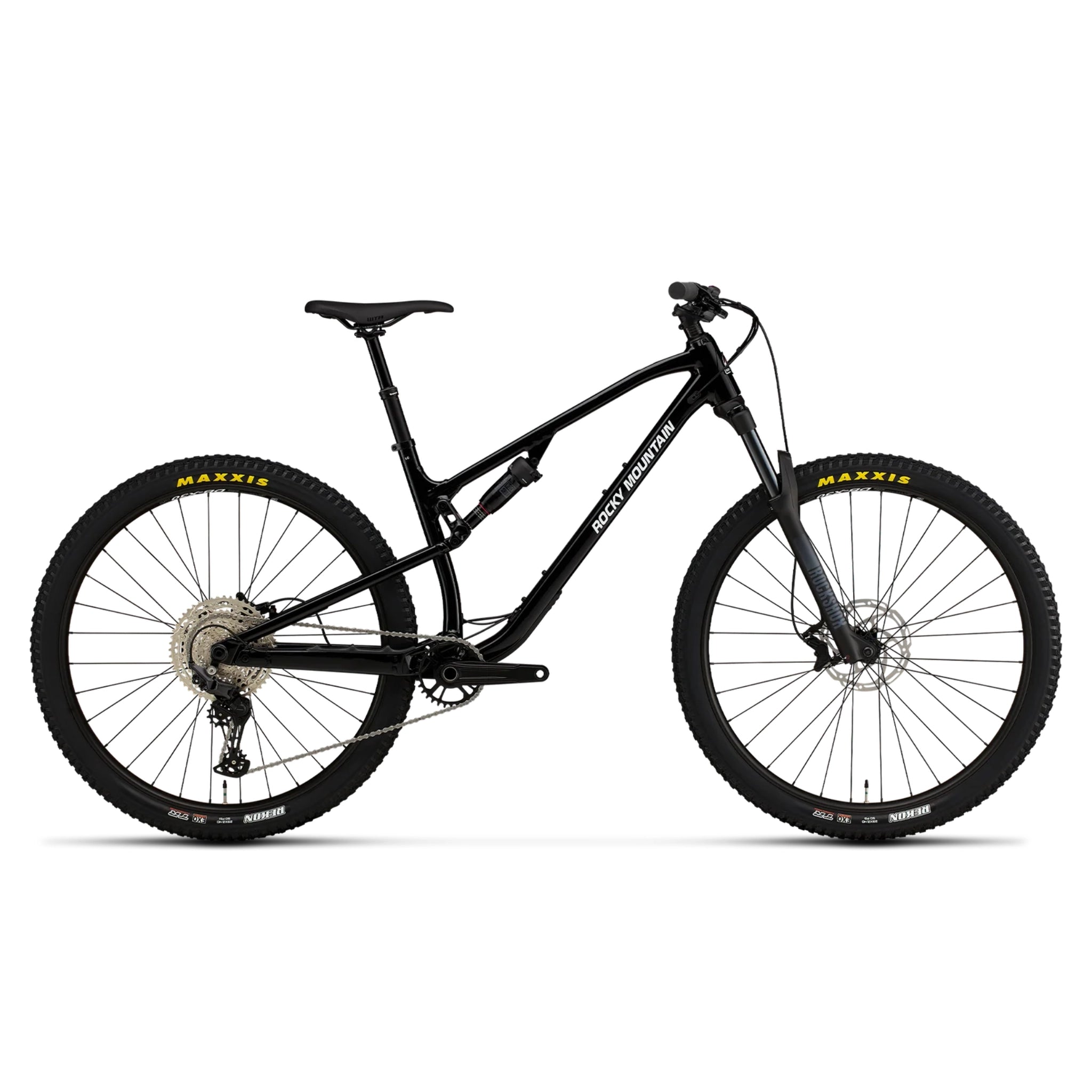

Rocky Mountain Element Alloy
Contact For Availability
Rocky Mountain Element Alloy
$2,999.00
Conçu spécifiquement pour atteindre le juste équilibre entre les performances de grimpe en cross-country et la précision technique, l'Element offre le meilleur des deux mondes, et bien plus encore.
Points forts
- Fourche RockShox Recon Silver
- Freins Tektro HD_M3120
- Transmission Shimano Deore
210000132079
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
RIDE-4 Geometry Adjustment
Smoothlink SL
Accessories Mount
Specifications
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel. | FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Recon Silver RL 130mm | Motion Control Damper | 27.5 = 37mm Offset | 29 = 42mm Offset |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm |
| Handlebar | Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Tektro HD-M3120 | Shimano Pad Compatible |
| Shifters | Shimano Deore 12spd |
| Crankset | Rocky Mountain Microdrive 2PC | 32T | SRAM Direct Mount | 24mm Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Spokes | 2.0 Stainless |
| Rims | Rocky Mountain TR30 | 32H |
| Tires | F: Maxxis Rekon 2.4 EXO Tubeless Ready | R: Maxxis Rekon 2.4 EXO Tubeless Ready |
| Seatpost | Xfusion Manic| Plastic lever w/ bar clamp || 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy Clamp GL Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Saddle | WTB Silverado Race 142 | Steel Rails |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XS - 27.5" | SM | MD | LG | XL | ||
|---|---|---|---|---|---|---|
| Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | ||
| A | Reach | 397 | 405 | 425 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 561 | 566 | 606 | 610 | 615 | 619 | 624 | 628 | 633 | 637 |
| C | Angle de direction | 64.7° | 65.5° | 65.0° | 65.8° | 65.0° | 65.8° | 65.0° | 65.8° | 65.0° | 65.8° |
| D | Hauteur du boitier de pédalier | 28 | 19 | 47 | 36 | 47 | 36 | 47 | 36 | 47 | 36 |
| E | Empattement | 1127 | 1127 | 1173 | 1173 | 1202 | 1202 | 1231 | 1231 | 1265 | 1265 |
| F | Longueur de la base arrière | 426 | 425 | 436 | 435 | 436 | 435 | 436 | 435 | 436 | 435 |
| G | Hauteur de direction | 90 | 105 | 115 | 125 | 135 |
| H | Longueur du tube horizontal | 542 | 541 | 577 | 575 | 605 | 603 | 632 | 630 | 664 | 662 |
| I | Angle du tube de selle | 75.7° | 76.5° | 76.0° | 76.8° | 76.0° | 76.8° | 76.0° | 76.8° | 76.0° | 76.8° |
| J | Hauteur de surplomb | 769 | 772 | 810 | 813 | 808 | 811 | 806 | 810 | 804 | 808 |
| Toutes les mesures en degrés ou millimètres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | |
|---|---|---|
| Impérial | Métrique | |
| XS | 4'8" - 5'2" | 142.5 - 157.5cm |
| S | 5'2" - 5'7" | 157.5 - 170cm |
| M | 5'6" - 5'10" | 167.5 - 177.5cm |
| L | 5'9" - 6'2" | 175 - 188cm |
| XL | 6'1" - 6'6" | 185.5 - 198cm |
