Chargez plus fort. Allez plus vite.

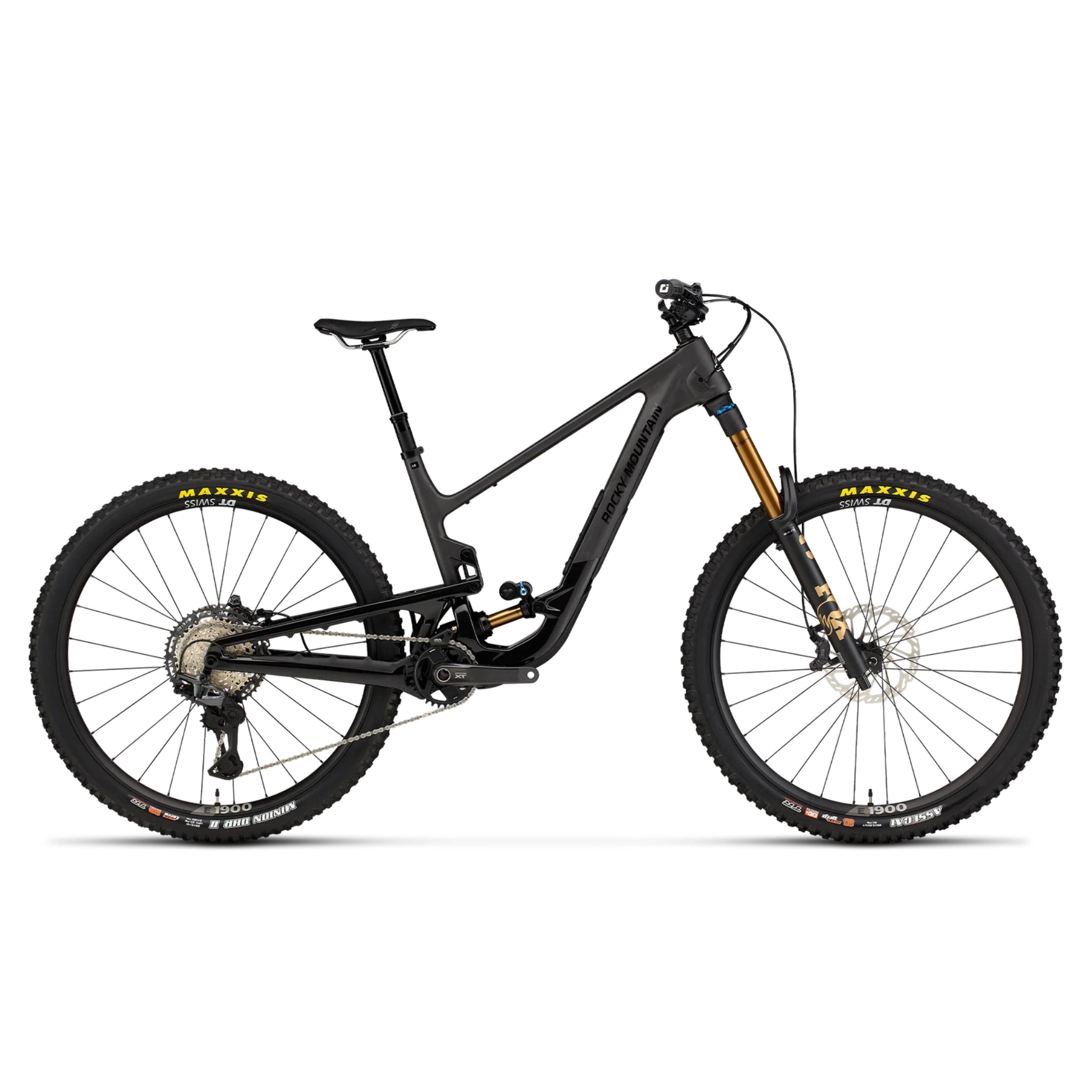

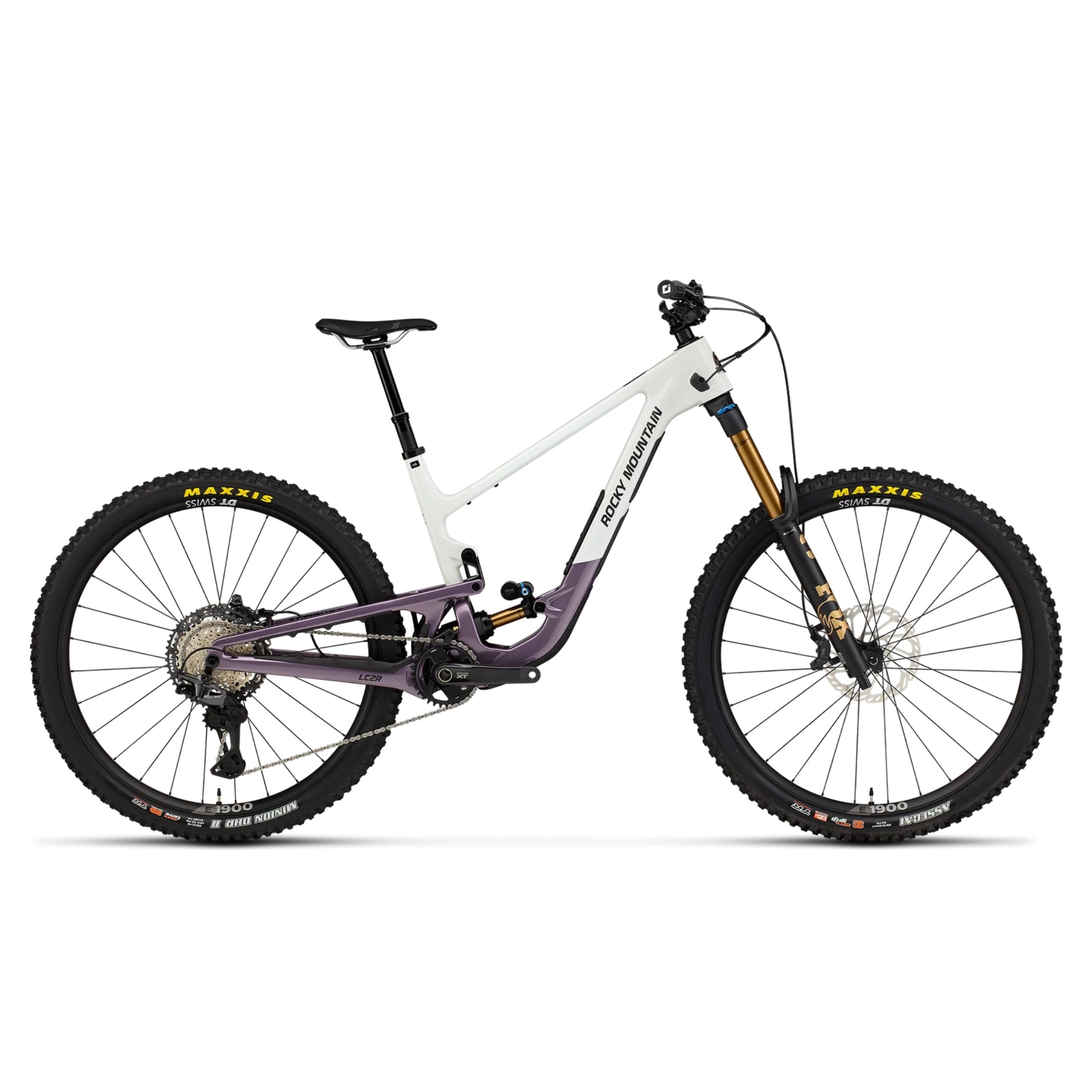

Rocky Mountain Altitude Carbon 70
Contact For Availability
Rocky Mountain Altitude Carbon 70
$8,499.00
Circuits de course ou descentes du dimanche, l’Altitude répond à tous vos besoins. Conçu spécifiquement pour la course et éprouvé en compétition, c’est l’arme d’enduro ultime pour dévaler les sentiers escarpés et gagner en vitesse à chaque session.
Points forts
- Suspension Fox Factory
- Transmission Shimano XT
- Freins Shimano XT à 4 pistons
210000132096
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
Ajustement de la géométrie RIDE-4
Ajuster le Jeu de direction Reach
Rangement sur tube diagonal PenaltyBox™ 2.0
Specifications
| Frame | SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage |Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 38 Float EVOL GRIP X2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40mm |
| Handlebar | Race Face Turbine | 780mm Width | 40mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Shimano XT Trail 4 Piston | Metal Pads |
| Shifters | Shimano XT |
| Crankset | Shimano XT | 32T | 24mm Spindle | 176mm Q-Factor | Crankarm Length: SM -MD = 165mm | L - XL = 170mm |
| Cassette | Shimano XT 10-51T |
| Chain | Shimano M8100 |
| Tires | F: Maxxis Assegai 2.5 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 3C MaxxTerra DD Tubeless Ready |
| Seatpost | OneUp V3 Dropper 30.9mm | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm |
| Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S - 27.5 | M | L | XL | ||
|---|---|---|---|---|---|
| Détendu | Raide | Détendu | Raide | Détendu | Raide | Détendu | Raide | ||
| A | Reach | 424 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 599 | 599 | 630 | 630 | 639 | 640 | 653 | 653 |
| C | Angle de direction | 63° | 63,8° | 63° | 63,8° | 63° | 63,8° | 63° | 63,8° |
| D | Hauteur du boitier de pédalier | 24 | 13 | 38 | 27 | 38 | 27 | 38 | 27 |
| E | Empattement | 1189 | 1188 | 1244 | 1242 | 1283 | 1282 | 1319 | 1319 |
| F | Longueur de la base arrière | 427 | 440 | 450 | 450 |
| G | Hauteur de direction | 100 | 105 | 115 | 130 |
| H | Longueur du tube horizontal | 553 | 584 | 610 | 642 |
| I | Angle du tube de selle | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° |
| J | Hauteur de surplomb | 760 | 768 | 792 | 798 | 798 | 806 | 809 | 817 |
| Toutes les mesures sont en degrés ou en millimètres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'0" - 6'6" | 183 - 198cm |
