Built for Speed

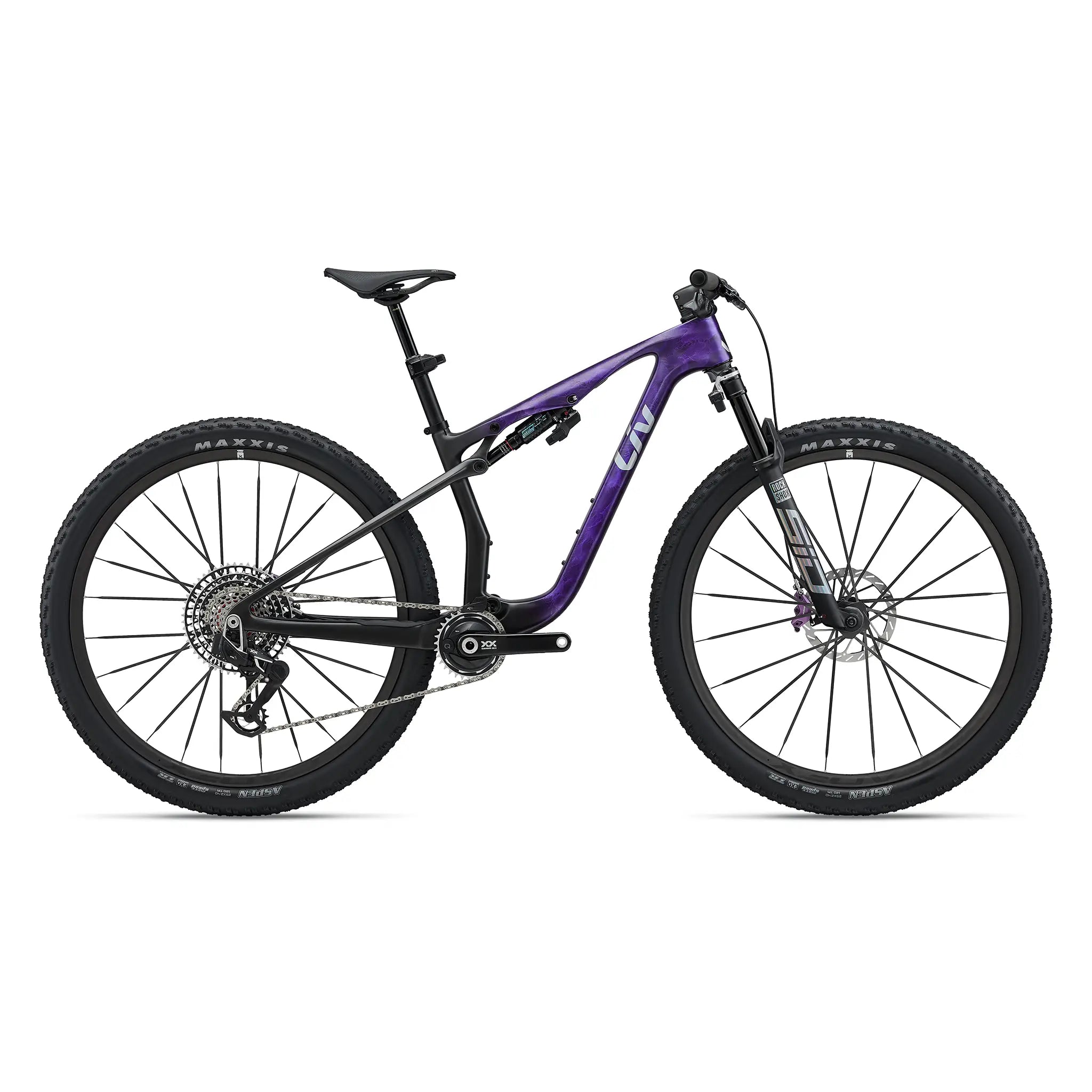

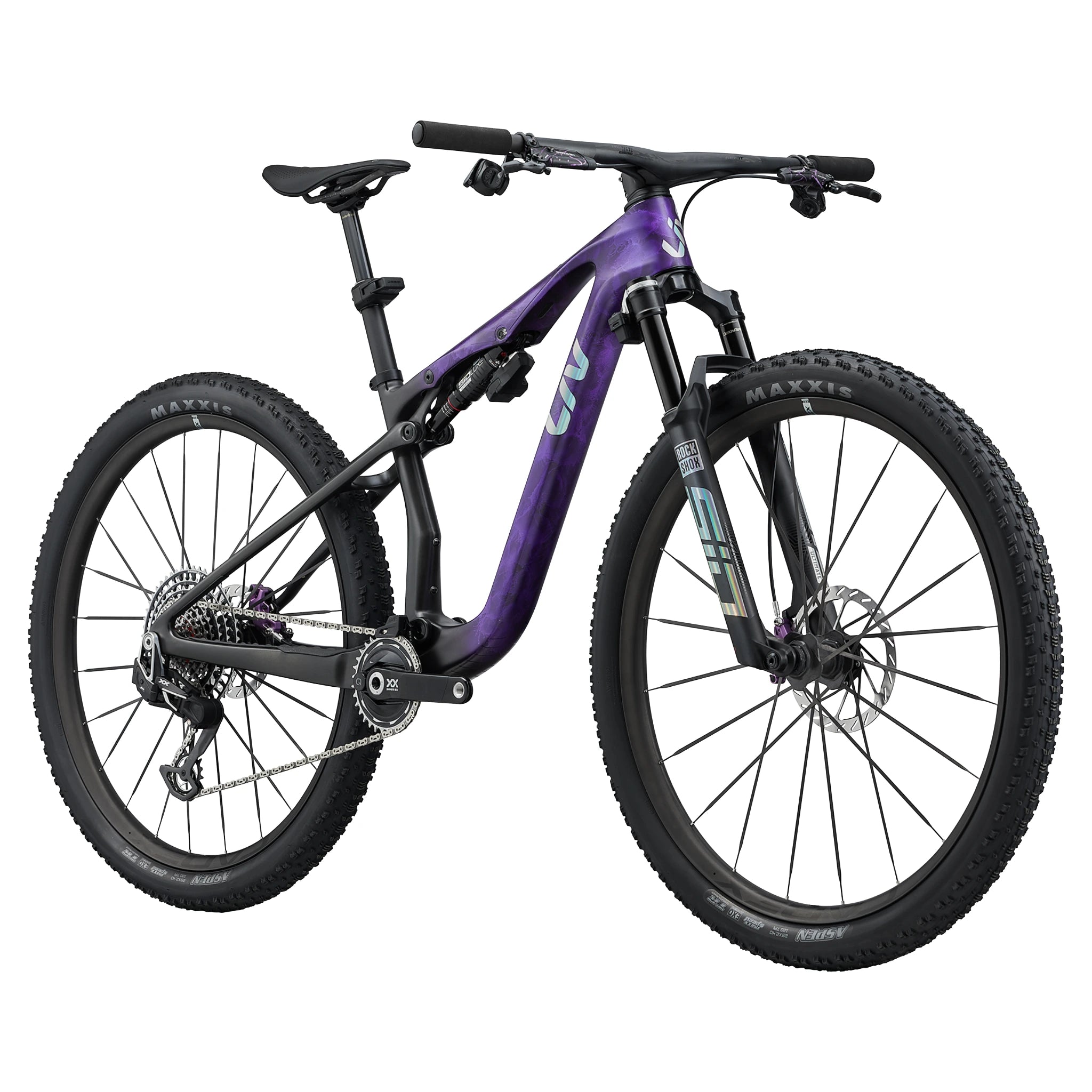

Liv Pique Advanced SL Special Edition
Local Pickup Only
Contact For Availability
Liv Pique Advanced SL Special Edition
$16,499.00

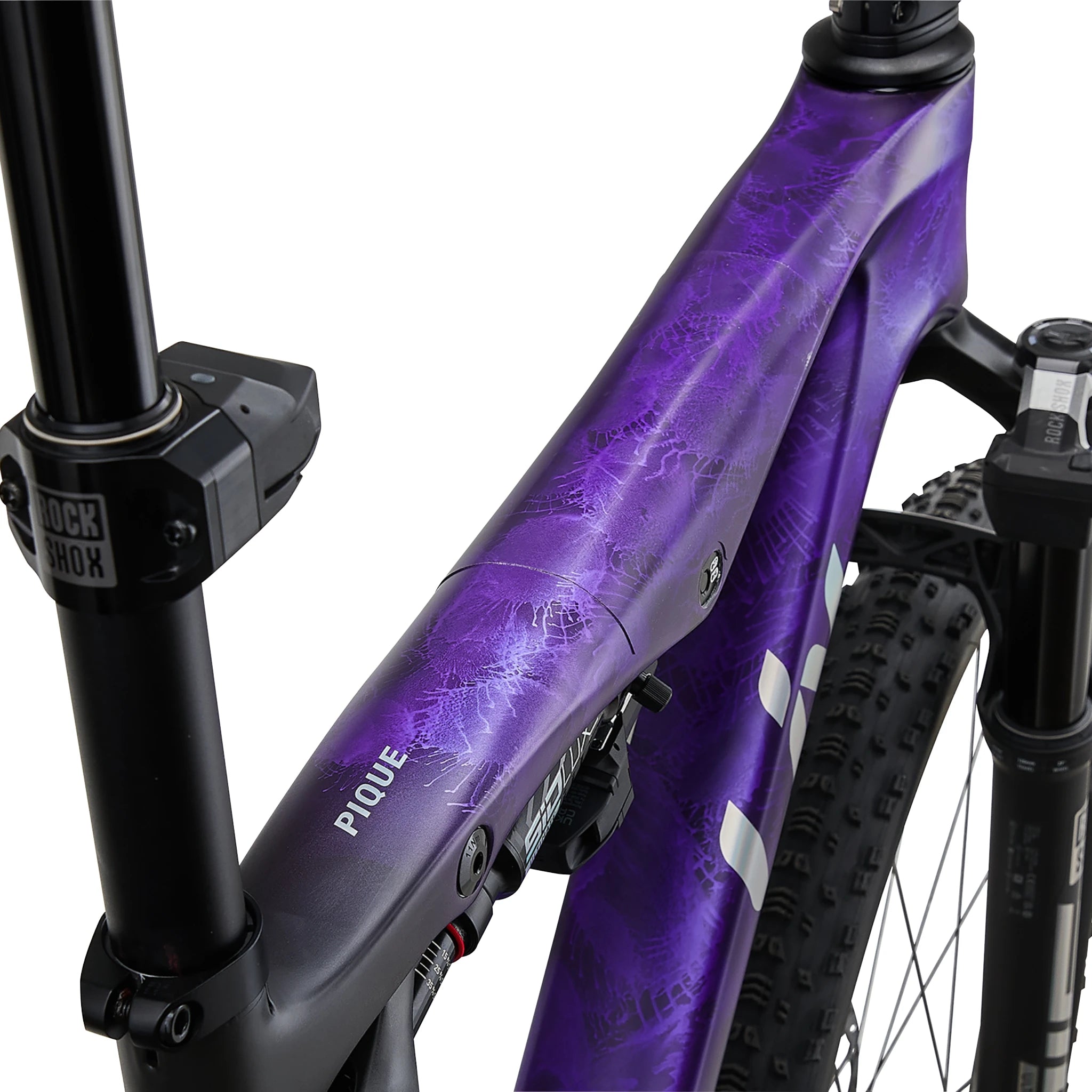

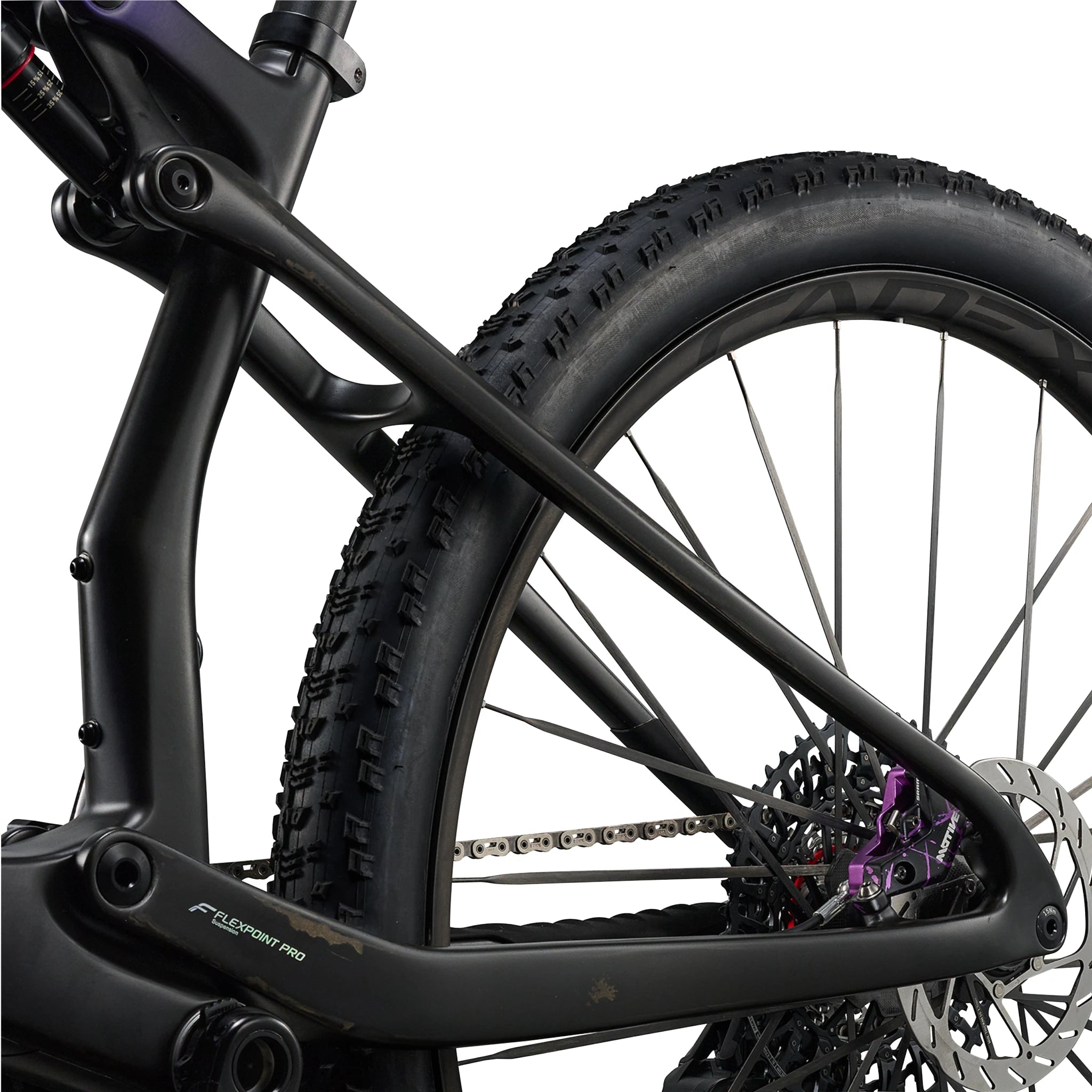

Conçu pour les coureurs obsédés par la vitesse, les performances et le contrôle, le nouveau Pique Advanced SL est conçu pour être à la hauteur. Les composants sont conçus pour fonctionner ensemble de manière fluide, comme un système optimisé unique. La suspension arrière FlexPoint Pro à pivot unique de 120 mm est désormais semi-intégrée au tube supérieur pour une conduite plus légère et plus efficace. Et le flip chip vous permet d’ajuster votre géométrie en fonction du parcours à venir et du feu intérieur.
Points forts
- Transmission SRAM XX SL
- Freins SRAM Motive personnalisés
- Roues en carbone Giant XCR
210000129756
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | XS, S, M |
|---|---|

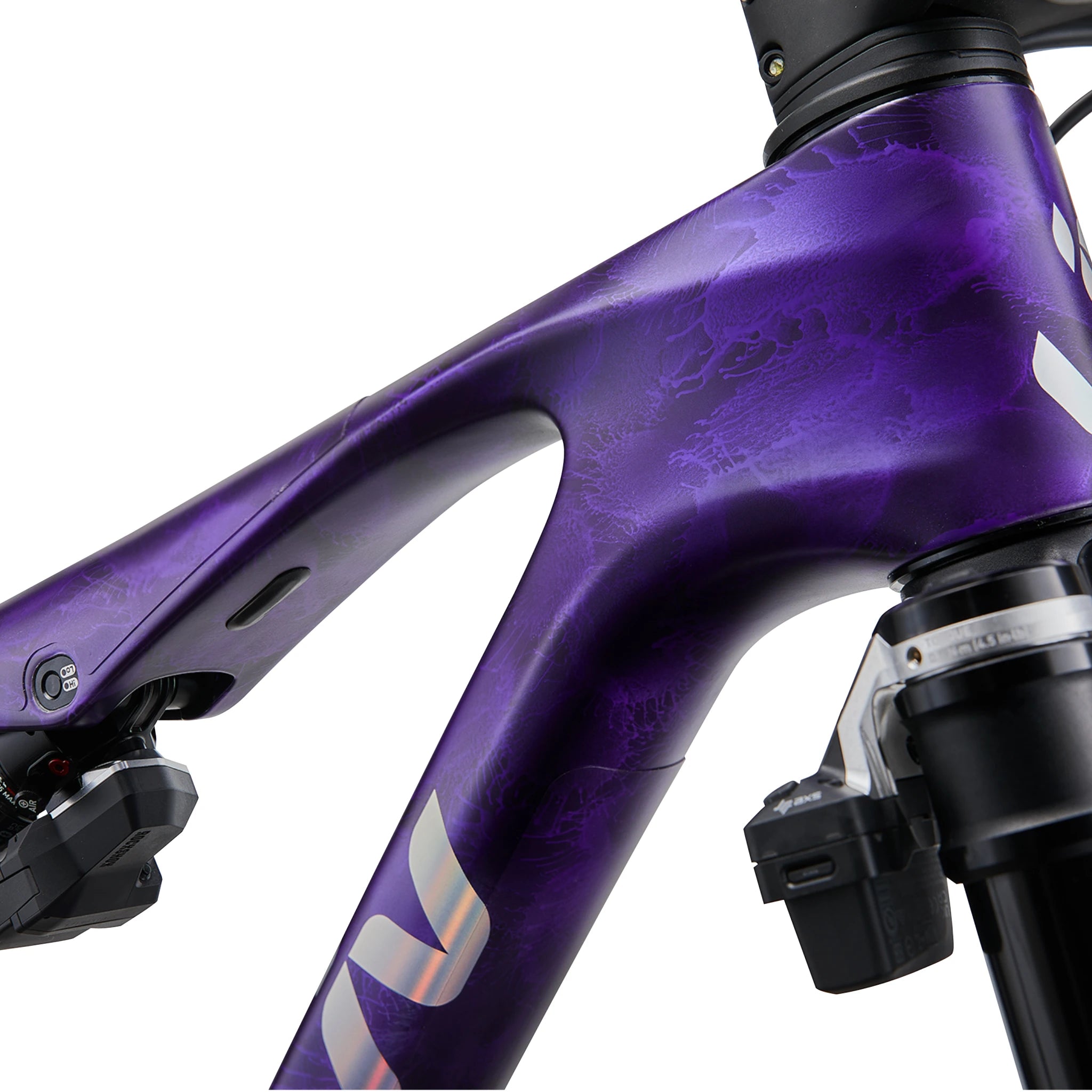

| Colour | Stella Storm |
| Frame | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle |

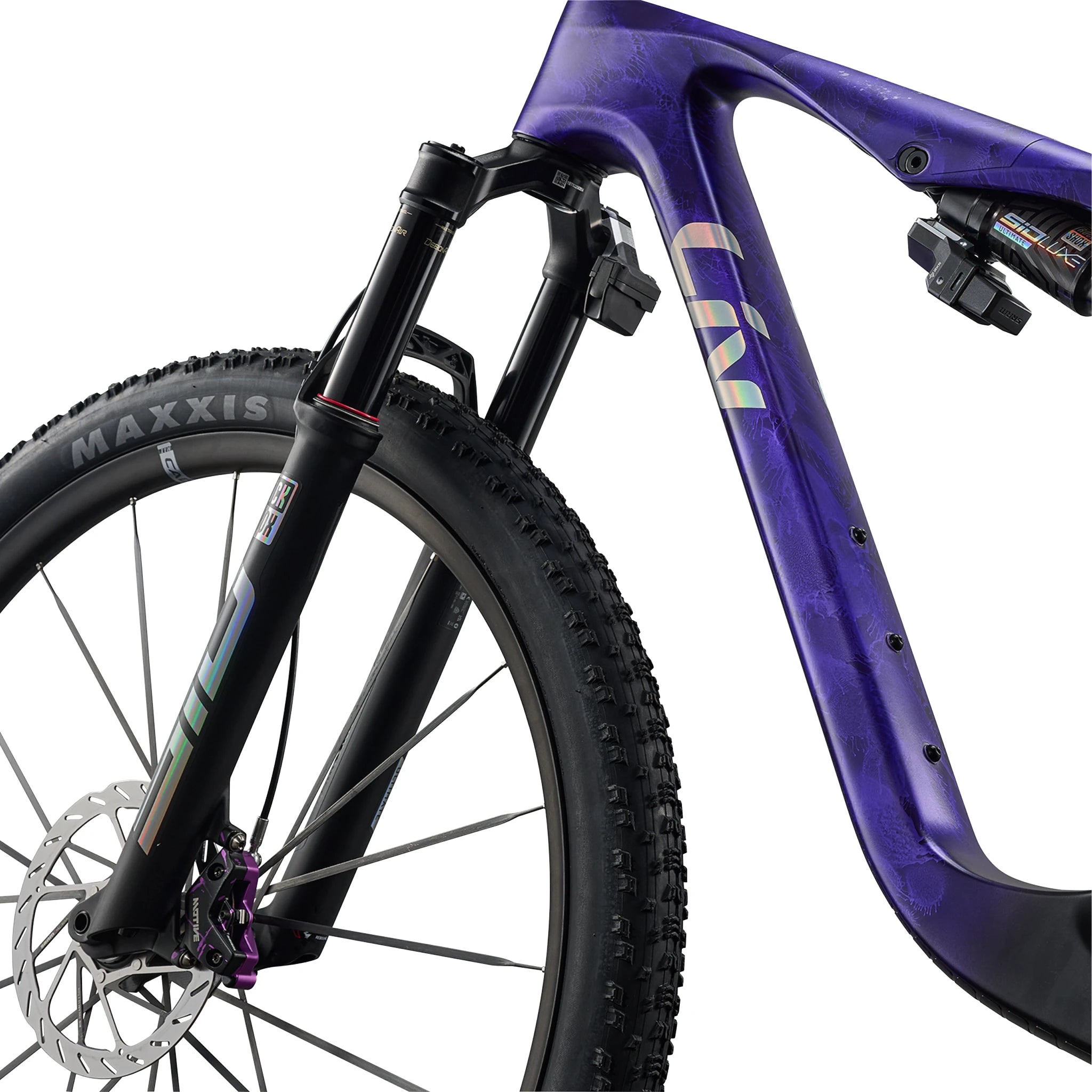

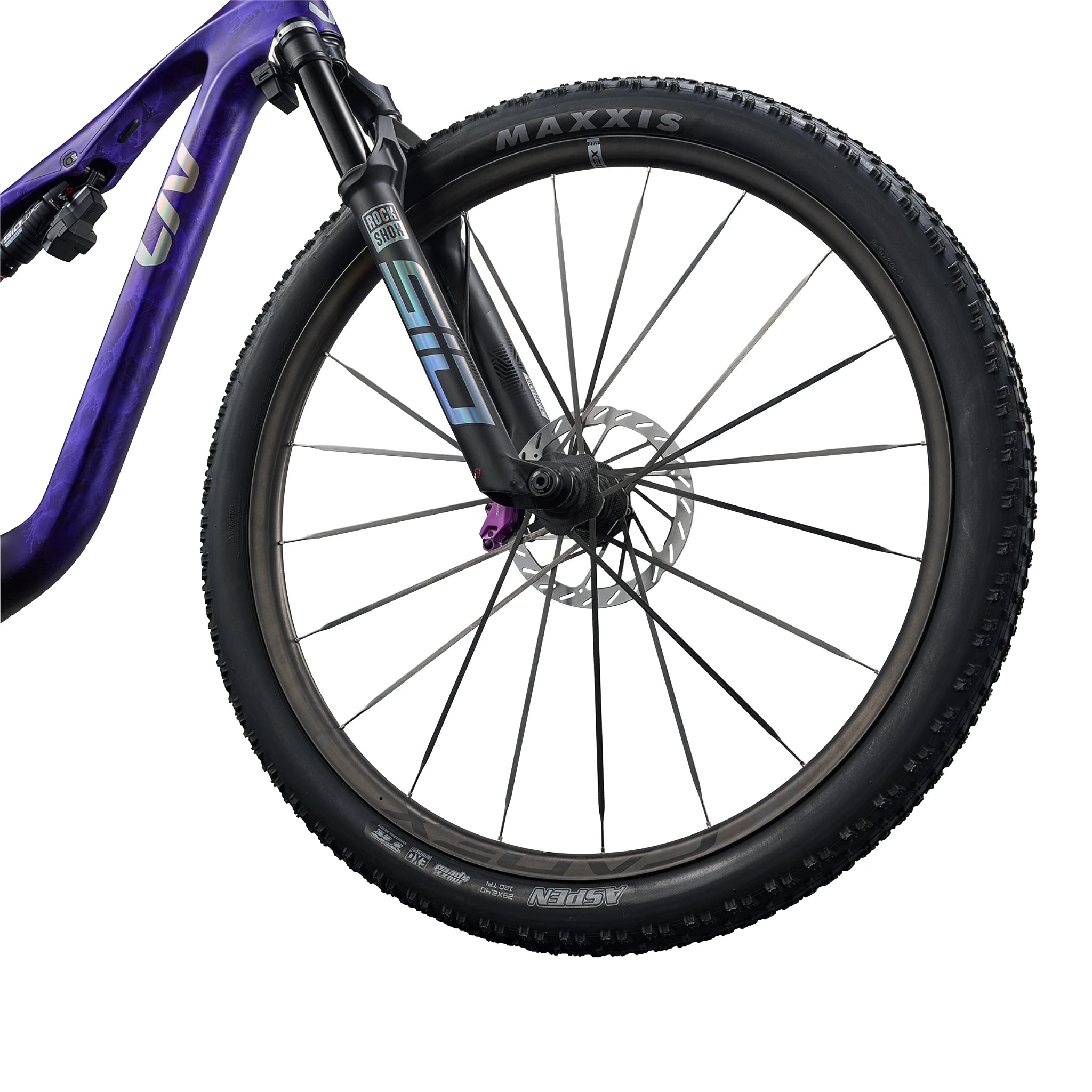

| Fork | RockShox Sid Flight Attendant XC, 120mm, Flight Attendant Race Day damper, 44mm offset, Boost 15x110mm |

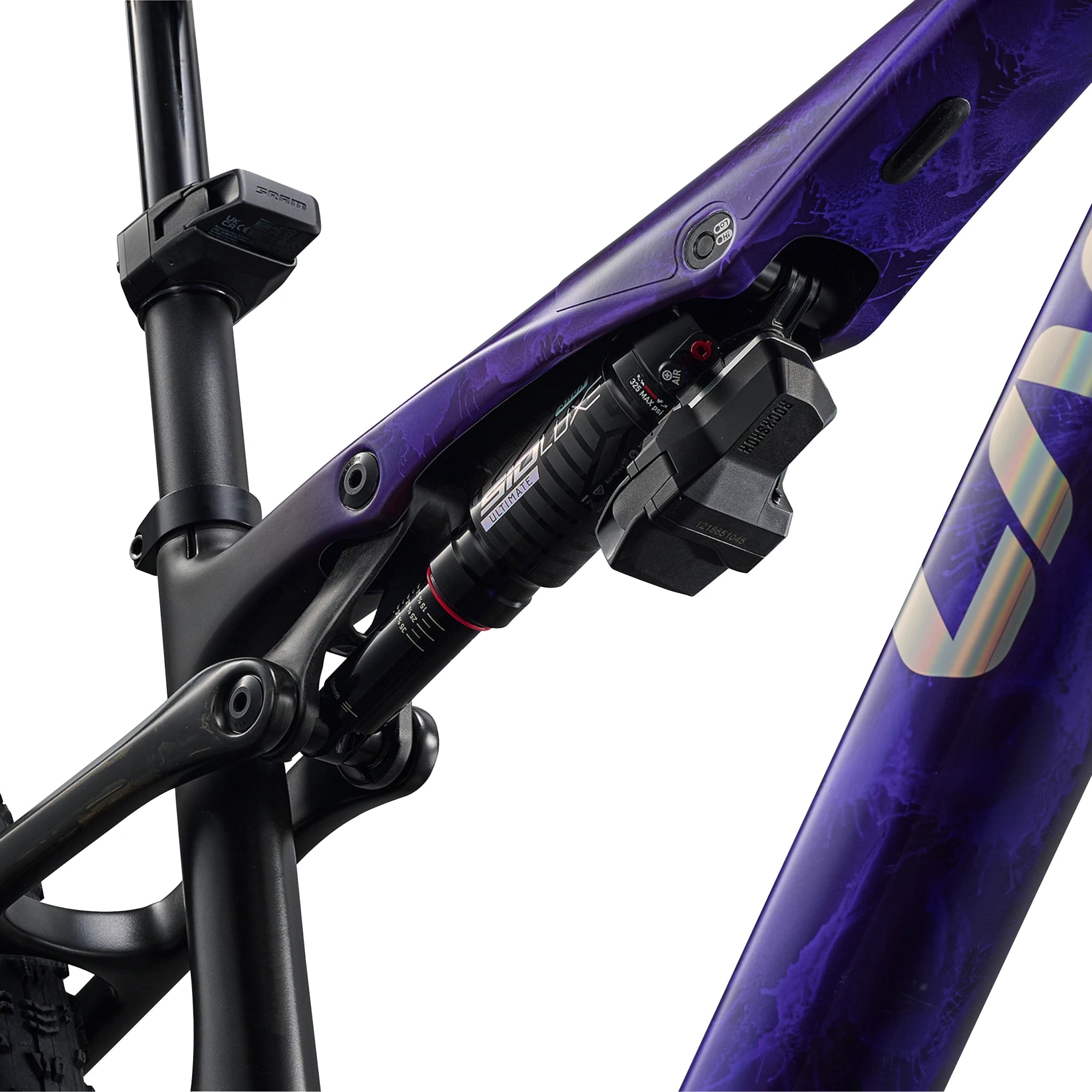

| Shock | RockShox SidLuxe Flight Attendant, RL3 damper, Solo Air, 210/50 |

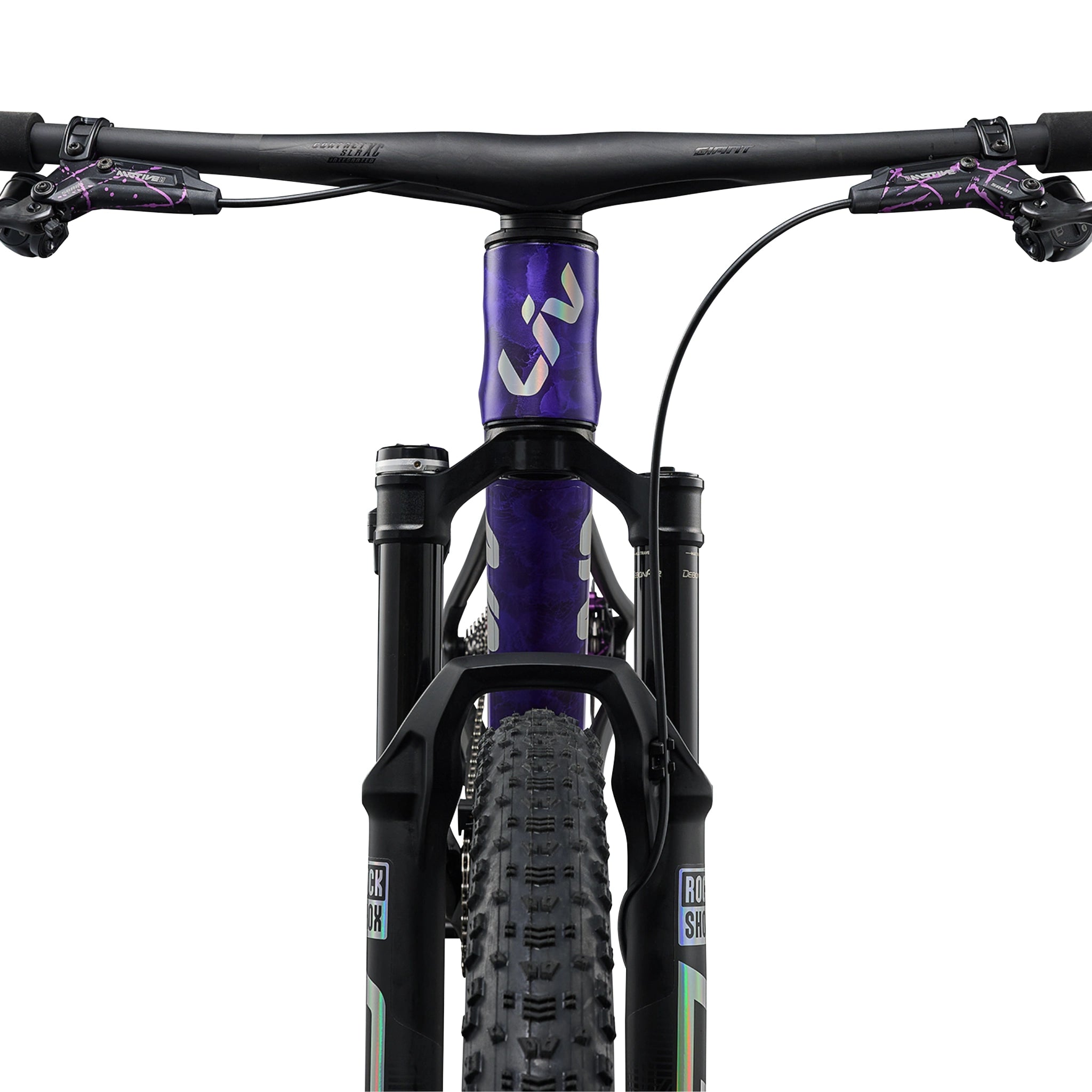

| Handlebar | Giant Contact SLR XC Integrated, composite, 9-degree backsweep, 2-degree upsweep |
| Grips | Liv XC Pro, silicone |
| Stem | Giant Contact SLR XC Integrated, composite, -8 degree |
| Seatpost |
RockShox Reverb AXS, pod controller remote XS-M: 100mm travel / 30.9 x 337mm |
| Saddle | Liv Grit SLR |
| Shifters | SRAM AXS Pod, 1x12 |
| Rear Derailleur | SRAM XX SL Eagle Transmission |
| Brakes |
SRAM Motive ULT, 4-piston, hydraulic SRAM HS2 rotors [F] 180mm, [R] 160mm |
| Brake Levers | SRAM Motive ULT |
| Cassette | SRAM XS-1299 Eagle Transmission, 12-speed, 10x52 |
| Chain | SRAM XX SL Eagle Transmission |

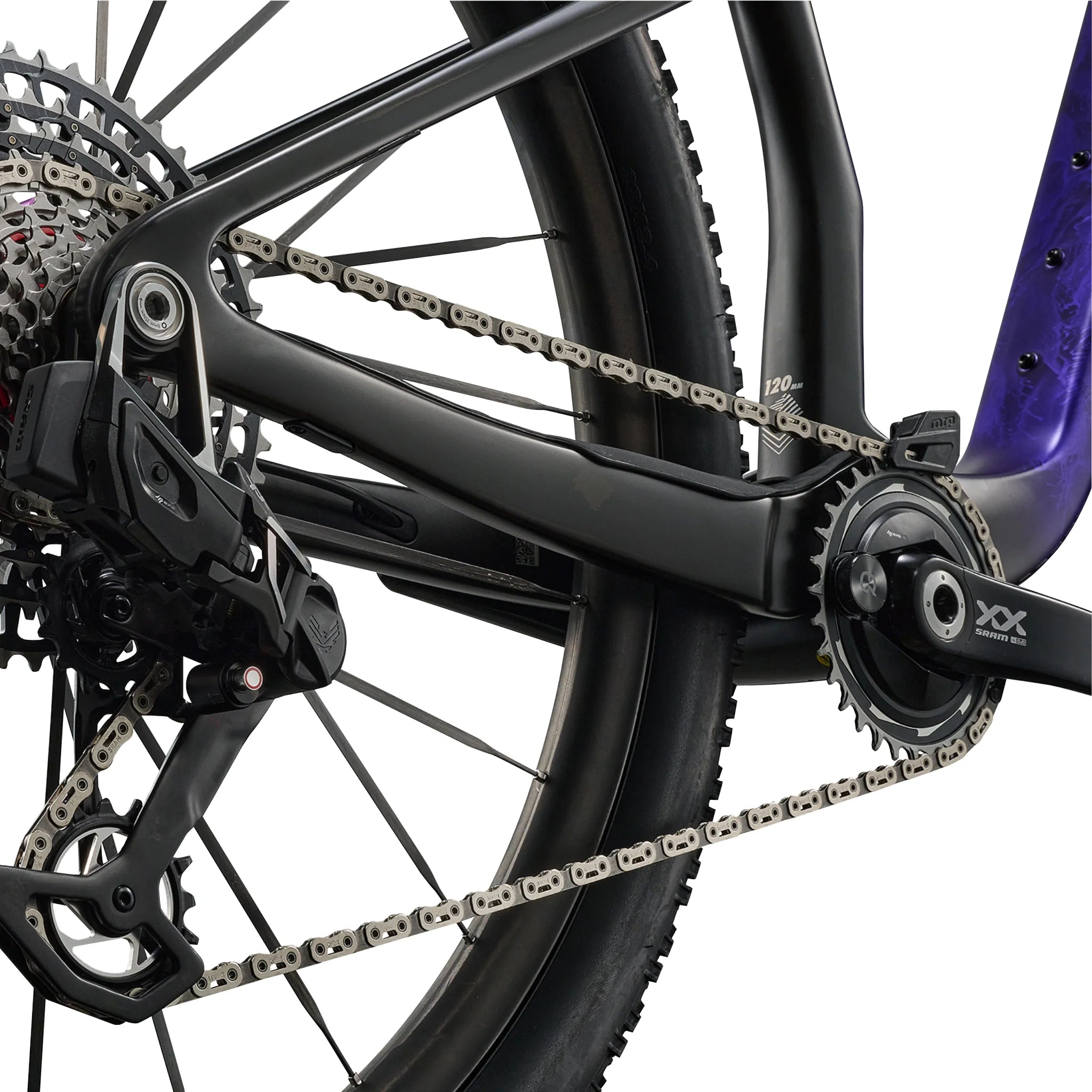

| Crankset | SRAM XX SL Eagle Transmission with power meter, 32t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Rims |
Giant XCR Carbon WheelSystem, 30mm IW, 40mm OW, 29mm H, Wide Guard
technology [F] 29, [R] 29 |
| Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 120t POE, Helical-Bevel Ratchet Driver, 6-bolt, sealed |
| Spokes | Giant Carbon Spoke |
| Tires | Maxxis Aspen 29x2.4", folding, MaxxSpeed, EXO, tubeless, 120TPI |
| Extras |
MRP SL TR2 1x chain guide Computer mount Tubeless prepared, 2.4" max tire size 34t max chainring size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LO | HI | LO | HI | LO | HI | LO | HI | ||
| A | Reach | 394 | 400 | 410 | 416 | 430 | 436 | 445 | 450 |
| B | Stack | 605 | 602 | 610 | 607 | 620 | 616 | 629 | 625 |
| C | Head Tube Angle | 66.0° | 66.5° | 66.0° | 66.5° | 66.0° | 66.5° | 66.1° | 66.6° |
| D | Bottom Bracket Drop | 48 | 42 | 48 | 42 | 48 | 42 | 48 | 42 |
| E | Wheelbase | 1125 | 1124 | 1143 | 1142 | 1166 | 1166 | 1185 | 1184 |
| F | Chainstay Length | 437 | 435 | 437 | 435 | 437 | 435 | 437 | 435 |
| G | Head Tube Length | 90 | 90 | 95 | 95 | 105 | 105 | 115 | 115 |
| H | Top Tube Length | 557 | 555 | 574 | 572 | 596 | 594 | 613 | 611 |
| I | Seat Tube Angle | 75.0° | 75.5° | 75.0° | 75.5° | 75.0° | 75.5° | 75.1° | 75.6° |
| J | Standover Height | 777 | 784 | 775 | 782 | 770 | 777 | 765 | 771 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'11" - 5'4" | 150 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
| L | 5'7" - 5'11" | 170 - 181cm |
Model Numbers
| Size | Model Number | Stella Storm |
|---|---|
| XS | 1072021103 |
| S | 1072021104 |
| M | 1072021105 |
