Built for Speed
Liv Pique Advanced Pro
Local Pickup Only
Contact For Availability

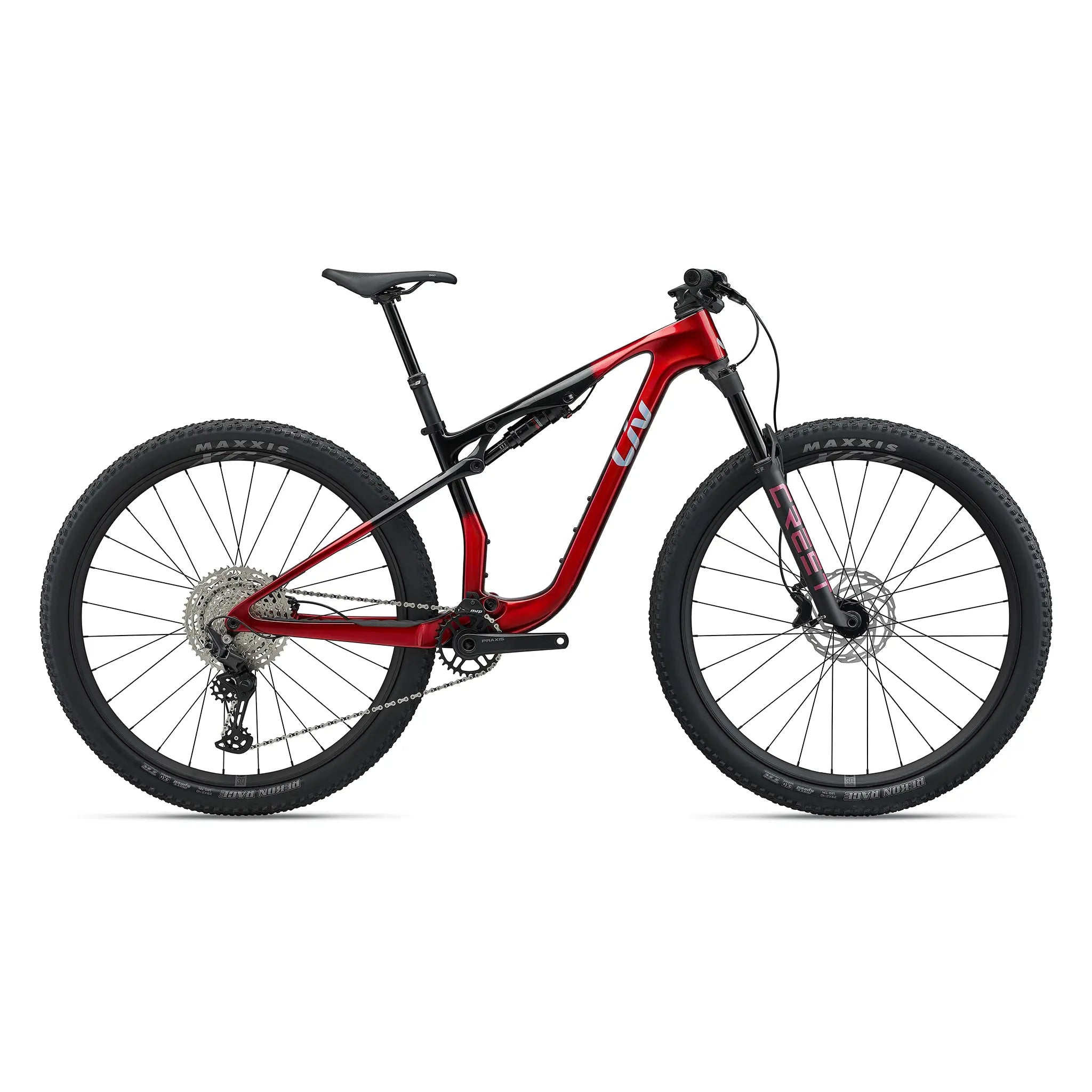

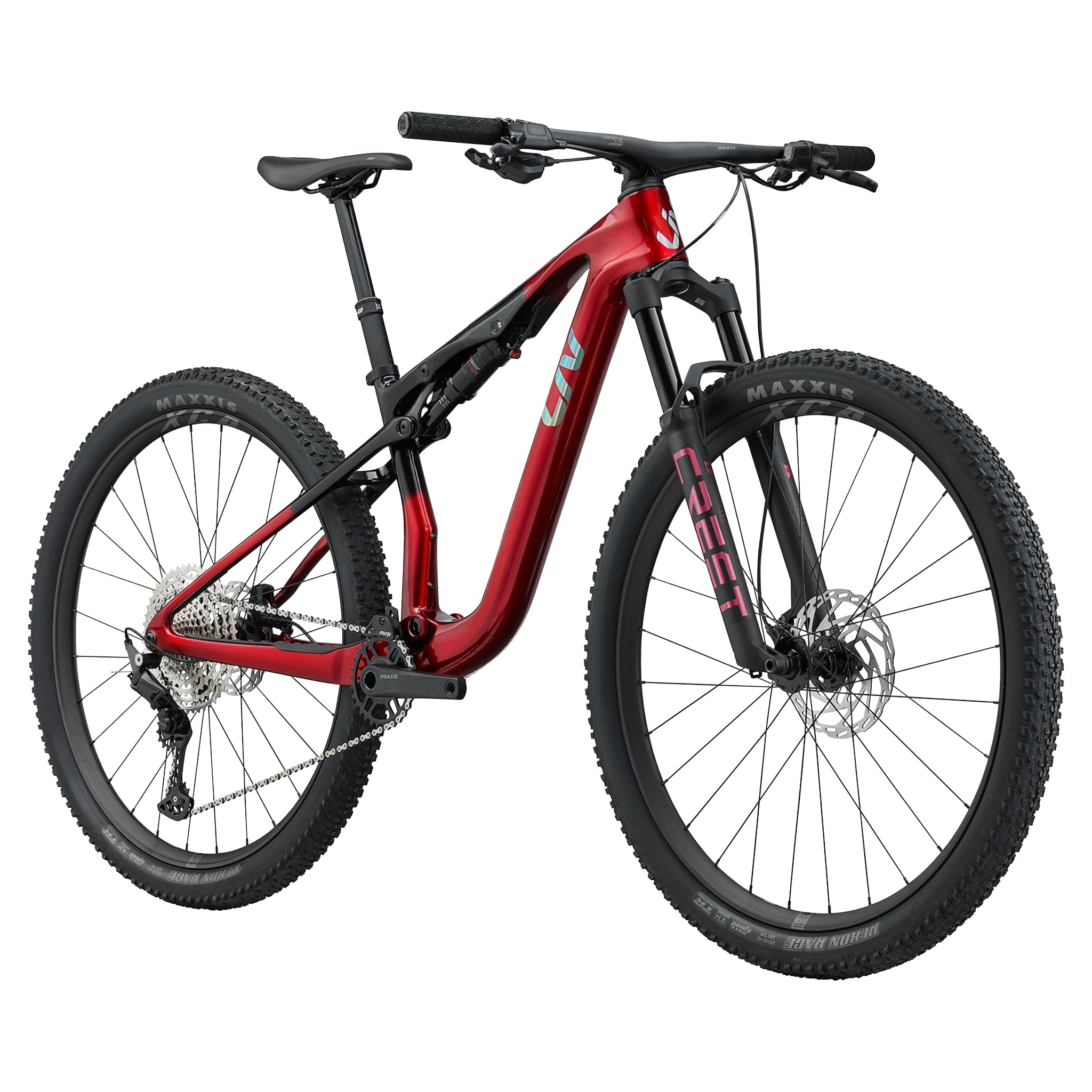

Liv Pique Advanced Pro
$5,299.00
Conçu pour les coureurs passionnés de vitesse, de performance et de contrôle, le nouveau Pique Advanced est fait pour vous offrir tout cela. Ses composants sont conçus pour fonctionner harmonieusement ensemble, comme un système optimisé. La suspension arrière FlexPoint Pro à pivot unique de 120 mm est désormais semi-intégrée à votre tube supérieur, pour une conduite plus légère et plus efficace. Et le flip chip vous permet d’ajuster votre géométrie en fonction du parcours qui vous attend et du feu qui vous anime.
Points forts
- Cadre Advanced en carbone
- Suspension Giant Crest
- Transmission Shimano Deore
210000129763
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | XS, S, M, L |
|---|---|
| Colour | Metallic Red/Black |
| Frame | Advanced Pro-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle |
| Fork | Giant Crest XC Comp, twin air, 120mm, FloTune damper, 44mm offset, Boost 15x110mm |
| Shock | Giant Crest XC Elite, FloTune RL, 210/50 |
| Handlebar | Giant Contact SL XC Integrated, 9-degree backsweep, 2-degree upsweep |
| Grips | Liv Tactal Pro single lock-on |
| Stem | Giant Contact SL XC Integrated, -8 degree |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote XS/S: 110-140mm travel / 30.9 x 395mm M/L: 140-170mm travel / 30.9 x 470mm |
| Saddle | Liv Grit Core |
| Shifters | Shimano Deore, 1x12 |
| Rear Derailleur | Shimano Deore RD-M6200 |
| Brakes | Tektro Orion HD-M6041, 4-piston, hydraulic Tektro rotors [F] 180mm, [R] 180mm |
| Brake Levers | Tektro Orion |
| Cassette | Shimano Deore M6200, 12-speed, 10x51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet HD M24, 30t, 55mm chainline |
| Bottom Bracket | Praxis, press fit |
| Rims |
Giant XCA alloy WheelSystem, 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 29 |
| Hubs |
[F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 6 bolt, 72t POE, 6-pawl, MS-driver |
| Spokes | Sapim Leader j-bend |
| Tires | Maxxis Rekon Race 29x2.4", folding, EXO, tubeless, 120TPI |
| Extras | MRP SL TR2 1x chain guide Computer mount Tubeless prepared 2.4" max tire size 34t max chainring size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LO | HI | LO | HI | LO | HI | LO | HI | ||
| A | Reach | 394 | 400 | 410 | 416 | 430 | 436 | 445 | 450 |
| B | Stack | 605 | 602 | 610 | 607 | 620 | 616 | 629 | 625 |
| C | Head Tube Angle | 66.0° | 66.5° | 66.0° | 66.5° | 66.0° | 66.5° | 66.1° | 66.6° |
| D | Bottom Bracket Drop | 48 | 42 | 48 | 42 | 48 | 42 | 48 | 42 |
| E | Wheelbase | 1125 | 1124 | 1143 | 1142 | 1166 | 1166 | 1185 | 1184 |
| F | Chainstay Length | 437 | 435 | 437 | 435 | 437 | 435 | 437 | 435 |
| G | Head Tube Length | 90 | 90 | 95 | 95 | 105 | 105 | 115 | 115 |
| H | Top Tube Length | 557 | 555 | 574 | 572 | 596 | 594 | 613 | 611 |
| I | Seat Tube Angle | 75.0° | 75.5° | 75.0° | 75.5° | 75.0° | 75.5° | 75.1° | 75.6° |
| J | Standover Height | 777 | 784 | 775 | 782 | 770 | 777 | 765 | 771 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'11" - 5'4" | 150 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
| L | 5'7" - 5'11" | 170 - 181cm |
Model Numbers
| Size | Model Number |
|---|---|
| Metallic Red/Black | |
| XS | 1072027103 |
| S | 1072027104 |
| M | 1072027105 |
| L | 1072027107 |
