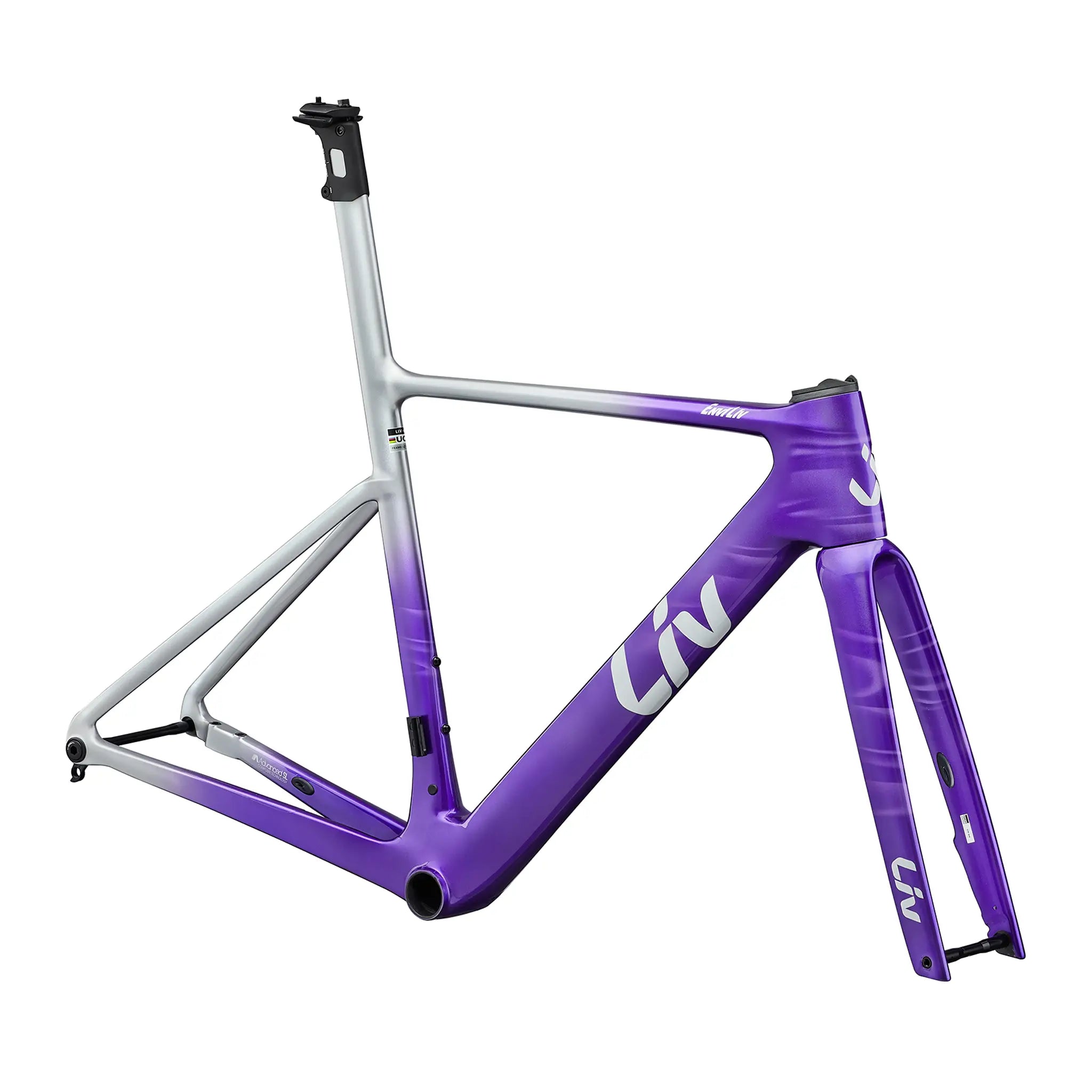

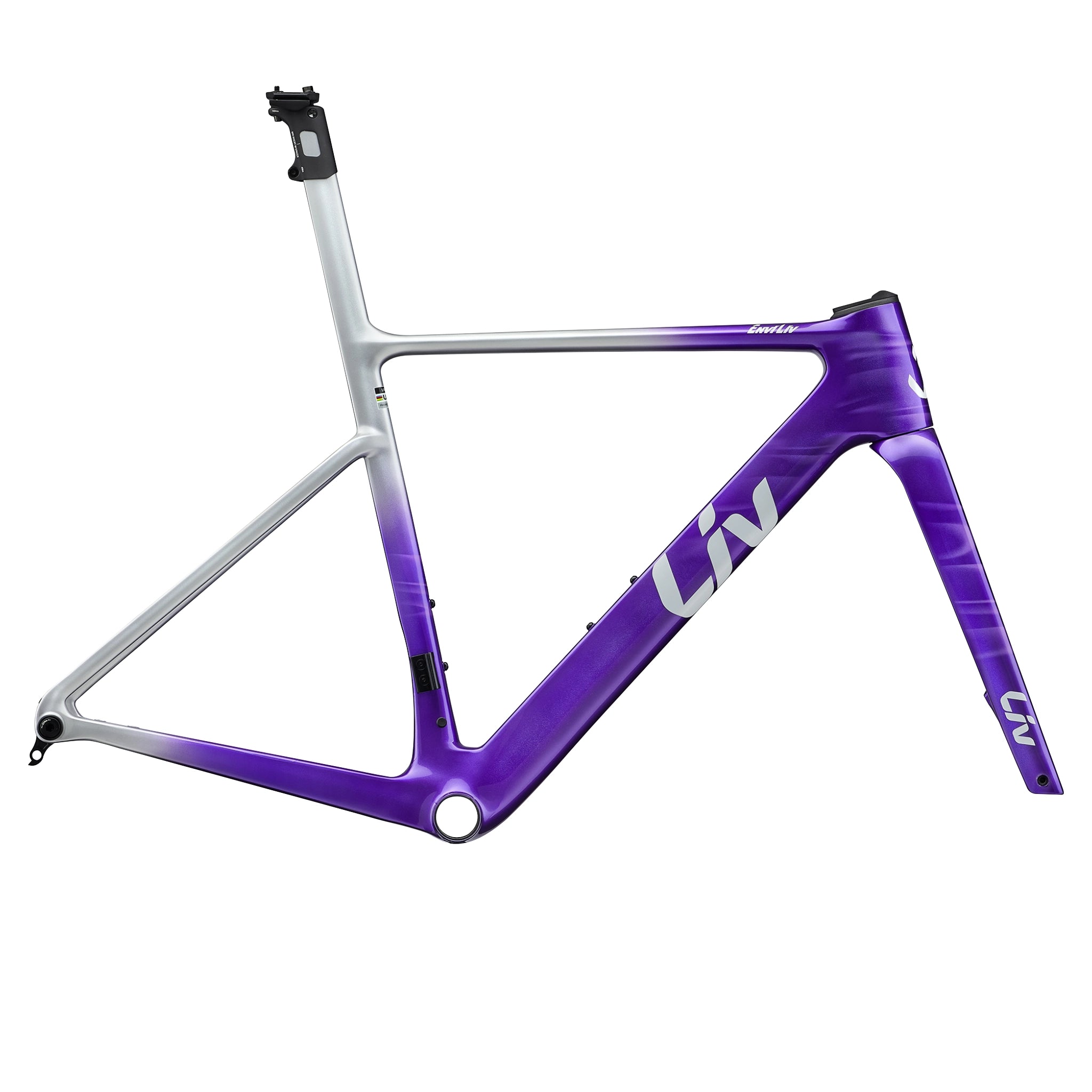

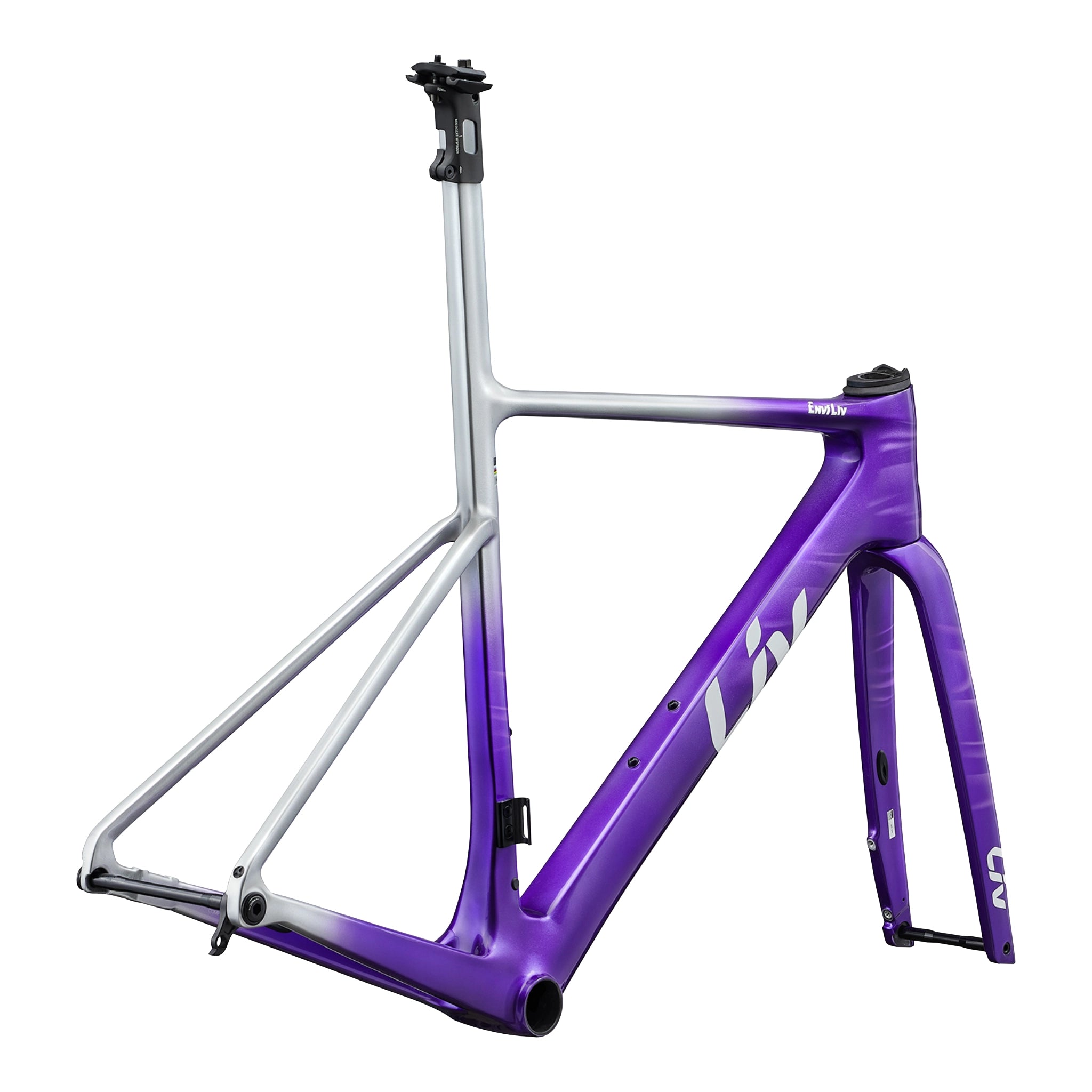

Cadre Liv EnviLiv Advanced SL
Local Pickup Only
Cadre Liv EnviLiv Advanced SL
$5,299.99
Pour les sprinteuses du WorldTour et les triathlètes de haut niveau qui savent que chaque seconde compte, le kit cadre EnviLiv Advanced SL a été conçu pour dépasser la concurrence, surpasser les attentes et transcender la réalité. Doté d’une intégration complète du système de nouvelle génération pour une aérodynamique affinée et un poids réduit, c’est notre EnviLiv le plus rapide, le plus efficace et le plus ambitieux à ce jour.
210000128451
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, integrated seatpost, disc |
|---|---|
| Fork | Advanced SL-grade composite, full-composite D-shaped OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Seatpost | Advanced SL-grade composite, integrated design, -5/+15mm offset |
| Extras | Computer mount, water bottle cages, tubeless prepared, 32mm max tire size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Reach | 366 | 373 | 378 | 383 | 392 |
| B | Stack | 494 | 512 | 527 | 548 | 567 |
| C | Head Tube Angle | 70.0° | 71.0° | 72.0° | 73° | 73° |
| D | Bottom Bracket Drop | 72 | 72 | 70 | 70 | 70 |
| E | Wheelbase | 970 | 975 | 977 | 984 | 999 |
| F | Chain Stay Length | 405 | 405 | 405 | 405 | 405 |
| G | Head Tube Length | 100 | 115 | 130 | 150 | 170 |
| H | Top Tube Length | 498 | 510 | 524 | 540 | 560 |
| I | Seat Tube Angle | 75.0° | 75.0° | 750° | 74.0° | 74.0° |
| J | Standover Height | 715 | 733 | 761 | 787 | 814 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XXS | 4'9" - 5'2" | 145 - 157cm |
| XS | 5'0" - 5'4" | 152 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 176cm |
| L | 5'7" - 6'0" | 170 - 182cm |
Model Numbers
| Size | Model Number |
|---|---|
| Nitro Purple | |
| XXS | 1902002102 |
| XS | 1902002103 |
| S | 1902002104 |
| M | 1902002105 |
