Devoted to Progression
Liv Devote Advanced SL 2
Local Pickup Only

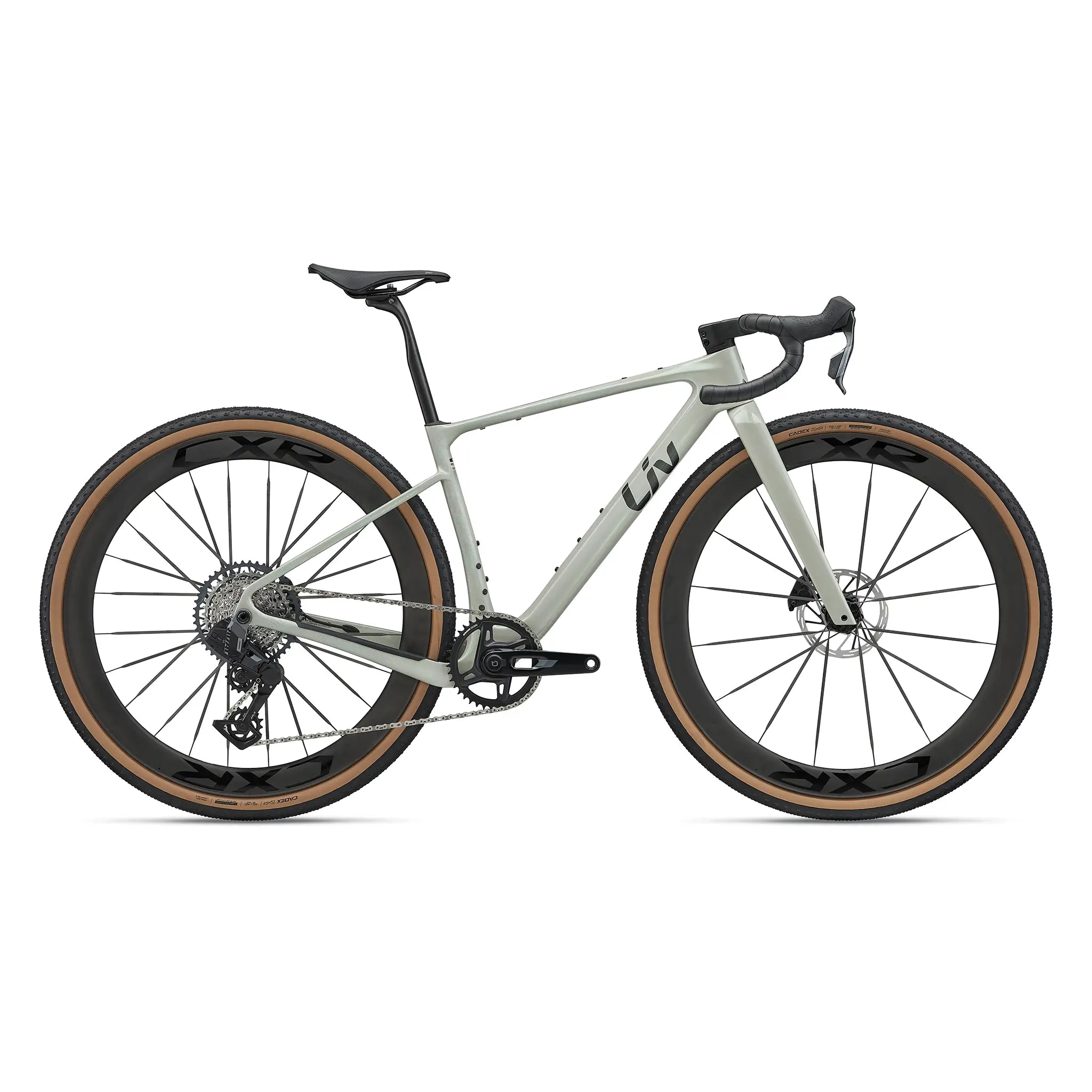

Liv Devote Advanced SL 2
$8,999.00
Le Devote Advanced SL est conçu pour le podium et affiné sur les parcours les plus exigeants au monde. De la série mondiale UCI Gravel, riche en technologies, aux kilomètres d'endurance éprouvants du Life Time Grand Prix, nos athlètes repoussent les limites de ce qui est possible en gravel.
210000124817
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Frame | Advanced SL-grade composite, 12x142mm thru-axle, UDH dropout, disc |
|---|---|
| Fork | Advanced SL-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Brake Levers | SRAM Rival AXS E1 |
| Brakes | SRAM Rival E1 hydraulic |
| Rotors | SRAM Paceline rotors [F] 160mm, [R] 140mm |
| Shifters | SRAM Rival AXS E1, 1x13 |
| Rear Derailleur | SRAM Rival XPLR AXS E1 |
| Crankset | SRAM Rival E1 DUB Wide, 40t with power meter |
| Cassette | SRAM Rival XPLR E1, 13-speed, 10x46 |
| Chain | SRAM Rival E1 |
| Bottom Bracket | SRAM DUB Wide, press fit |
| Rims | Giant CXR 0 Carbon Disc WheelSystem, 25mm IW, 35mm OW, 50mm H, Wide Guard technology |
| Hubs | [F] Giant Low Friction Aero Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Aero Hub, 60t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | Giant Aero Carbon Spoke |
| Tires | CADEX GXR, tubeless, 700x45c, 170 TPI, folding, Race Shield+ puncture protection, X-Shield sidewall protection |
| Handlebars | Liv Contact SLR XR Integrated, composite |
| Stem | Liv Contact SLR XR Integrated, -8-degree |
| Tape | Stratus Lite 3.0 |
| Saddle | Liv Grit SLR |
| Seat Post | Giant D-Fuse SLR XR, composite, +20 offset |
| Extras | Computer mount, chain guide, tubeless prepared, 53mm max tire size, Shimano Road 54-40t, SRAM road 52-39t max chainring size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Reach | 387 | 389 | 394 | 399 |
| B | Stack | 525 | 537 | 557 | 569 |
| C | Head Tube Angle | 70.5° | 71.0° | 71.5° | 72.0° |
| D | Bottom Bracket Drop | 80 | 80 | 80 | 80 |
| E | Wheelbase | 1024 | 1025 | 1031 | 1036 |
| F | Chain Stay Length | 433.0 | 433.0 | 433.0 | 433.0 |
| G | Head Tube Length | 90 | 100 | 120 | 130 |
| H | Top Tube Length | 528 | 538 | 548 | 562 |
| I | Seat Tube Angle | 75.00° | 74.50° | 74.50° | 74.00° |
| J | Standover Height | 663 | 714 | 752 | 801 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'11" - 5'4" | 150 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
Model Numbers
| Size | Model Number |
|---|---|
| Misty Aloe | |
| XS | 1032031103 |
| S | 1032031104 |
| M | 1032031105 |
| L | 1032031107 |
