Liv Avail AR 4

Liv Avail AR 4

$1,499.99

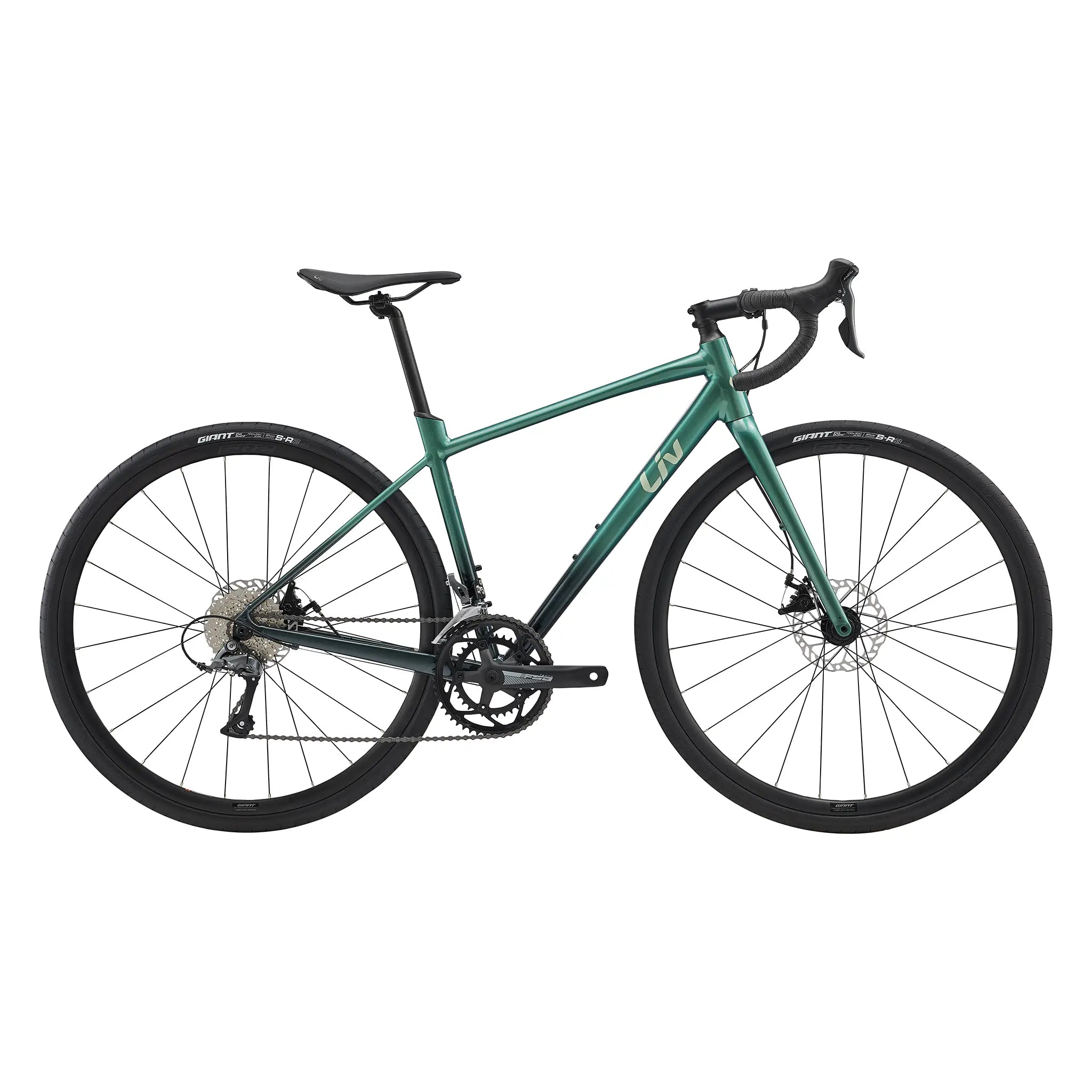

Liv Avail AR 4

The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations. The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.

Specifications

Sizes XXS, XS, S, M
Colour Mineral Green
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar Giant Connect
Grips Liv All Condition
Stem Giant Sport, 7-degree
Seatpost Giant D-Fuse, alloy, 14mm offset
Saddle Liv Approach
Shifters Shimano Claris, 2x8
Front Derailleur Shimano Claris FD-R2000
Rear Derailleur Shimano Claris RD-R2000 GS
Brakes Tektro MD-C550 mechanical
Giant MPH rotors [F] 160mm, [R] 160mm
Brake Levers Shimano Claris
Cassette Shimano HG50, 8-speed, 11x34
Chain KMC Z83
Crankset FSA Tempo, 34/50
Bottom Bracket Cartridge
Rims Giant S-R2 Disc wheelset, alloy, [F] 25mm, [R] 25mm
Hubs Giant S-R2 Disc wheelset, 12mm thru-axle
Spokes Sapim
Tires CST Sprint, 700x33c
Extras Fender mount, 38mm max tire size

*Les spécifications sont susceptibles d’être modifiées sans préavis

Geometry

XXS XS S M
A Reach 362 366 369 373
B Stack 522 538 561 582
C Head Tube Angle 70.5° 70.5° 71.5° 72.0°
D Bottom Bracket Drop 80 80 80 80
E Wheelbase 994 999 1001 1006
F Chainstay Length 422 422 422 422
G Head Tube Length 103 118 138 158
H Top Tube Length 502 515 525 540
I Seat Tube Angle 75.0° 74.5° 74.5° 74.0°
J Stand Over Height 653 681 709 736
*All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
XXS 4'9" - 5'1" 145 - 156cm
XS 5'0" - 5'4" 153 - 162cm
S 5'2" - 5'7" 158 - 169cm
M 5'5" - 5'19 165 - 174cm

Model Numbers

Size Model Number
Mineral Green
XXS 1017027122
XS 1017027123
S 1017027124
M 1017027125
