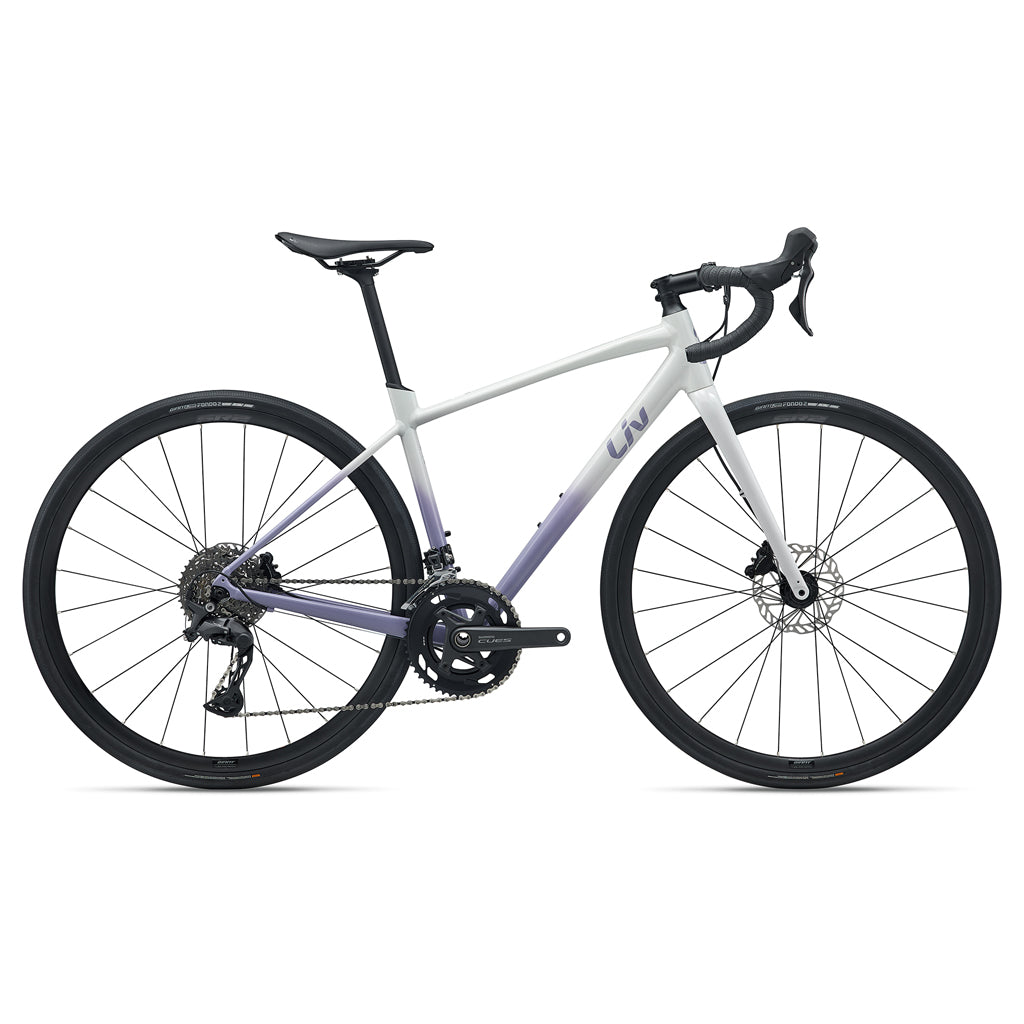

Liv Disponible AR 2
Local Pickup Only
Liv Disponible AR 2
$2,099.00
Que ce soit pour naviguer sur l'asphalte ou s'aventurer à travers un raccourci non pavé, l'Avail AR est fluide sur le plat, agile en montée et confiant en descente.
210000106017
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
Cadre Aluminium de qualité ALUXX, axe traversant 12x142mm, disque
Fourche Composite de qualité avancée, direction OverDrive entièrement en composite, axe traversant 12x100mm, disque
Guidon Liv Connect
Poignées Liv All Condition
Potence Giant Sport, 7 degrés
Tige de selle Giant D-Fuse, composite, 14mm de décalage
Selle Liv Approach
Manettes Shimano CUES U6030, 2x10
Dérailleur avant Shimano CUES FD-U6030
Dérailleur arrière Shimano CUES U6020
Freins Shimano CUES Rotors Giant MPH [F] 160mm, [R] 160mm
Leviers de frein Shimano CUES
Cassette Shimano CUES, 10 vitesses, 11x39
Chaîne KMC X11
Pédalier Shimano CUES, 34/50
Boîtier de pédalier Shimano RS501, fileté
Jantes Giant S-R2 ensemble de roues à disque, alliage, [F] 25 mm, [R] 25 mm
Moyeux Ensemble de roues Giant S-R2 Disc, axe traversant de 12mm
Rayons Sapim Leader
Pneus Giant Gavia Fondo 2, tubeless, 700x32c (34mm)
Extras Montage de Fender, préparé pour tubeless, taille de pneu max 38mm
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XXS | XS | S | M | L | ||
|---|---|---|---|---|---|---|
| A | Reach | 362 | 372 | 372 | 377 | 386 |
| B | Stack | 514 | 530 | 550 | 569 | 588 |
| C | Head Tube Angle | 70.0° | 70.5° | 72.0° | 72.0° | 72.0° |
| D | Bottom Bracket Drop | 70 | 70 | 70 | 70 | 70 |
| E | Wheelbase | 986 | 998 | 990 | 1000 | 1016 |
| F | Chainstay Length | 420 | 420 | 420 | 420 | 420 |
| G | Head Tube Length | 120 | 135 | 150 | 170 | 190 |
| H | Top Tube Length | 500 | 515 | 525 | 540 | 555 |
| I | Seat Tube Angle | 75.0° | 75.0° | 74.5° | 74.0° | 74.0° |
| J | Stand Over Height | 662 | 687 | 716 | 744 | 772 |
| *All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XXS | 4'9" - 5'1" | 145 - 156cm |
| XS | 5'0" - 5'4" | 153 - 162cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'19 | 165 - 174cm |
| L | 5'7" - 6'0" | 171 - 182cm |
Model Numbers
| Size | Model Number |
|---|---|
| Lavender Blush | |
| XXS | 1017035122 |
| XS | 1017035123 |
| S | 1017035124 |
| M | 1017035125 |
| L | 1017035127 |
