Facteur fun

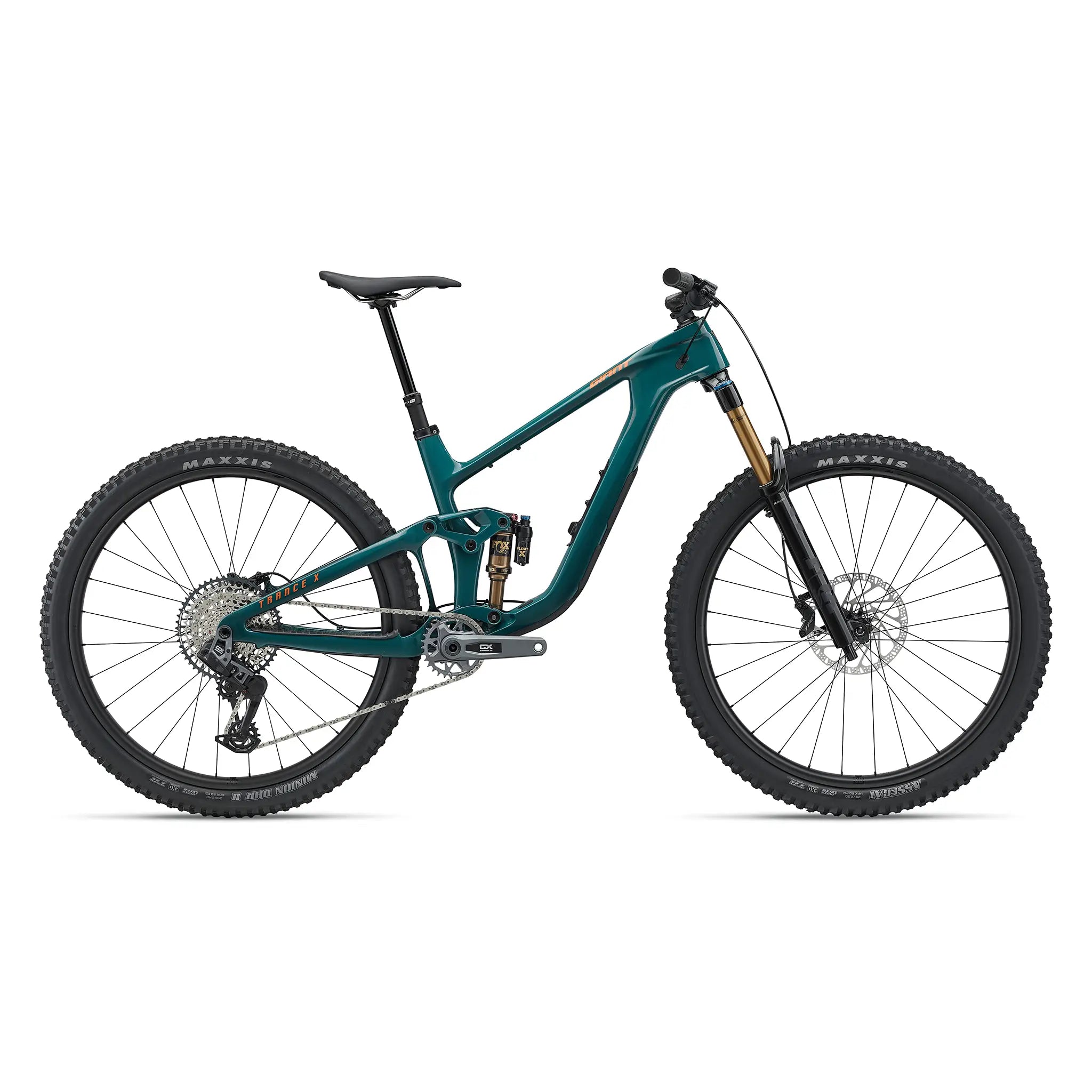

Giant Trance X Advanced 1
Local Pickup Only
Contact For Availability
Giant Trance X Advanced 1
$8,499.00
Franchissez aisément les montées techniques et dévalez les descentes accidentées. Le Trance X est un VTT de trail entièrement en composite qui vous offre 140 mm de suspension arrière Maestro fluide et de nombreuses possibilités de réglage. Vous pouvez ajuster la géométrie du cadre et changer la taille de la roue arrière selon le terrain.
Points forts
- Suspension Fox Factory
- Transmission SRAM GX AXS
- Roues Giant TRX en carbone
210000129572
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | S, M, L, XL |
|---|---|
| Colour | Abyss Teal |
| Frame | Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage |

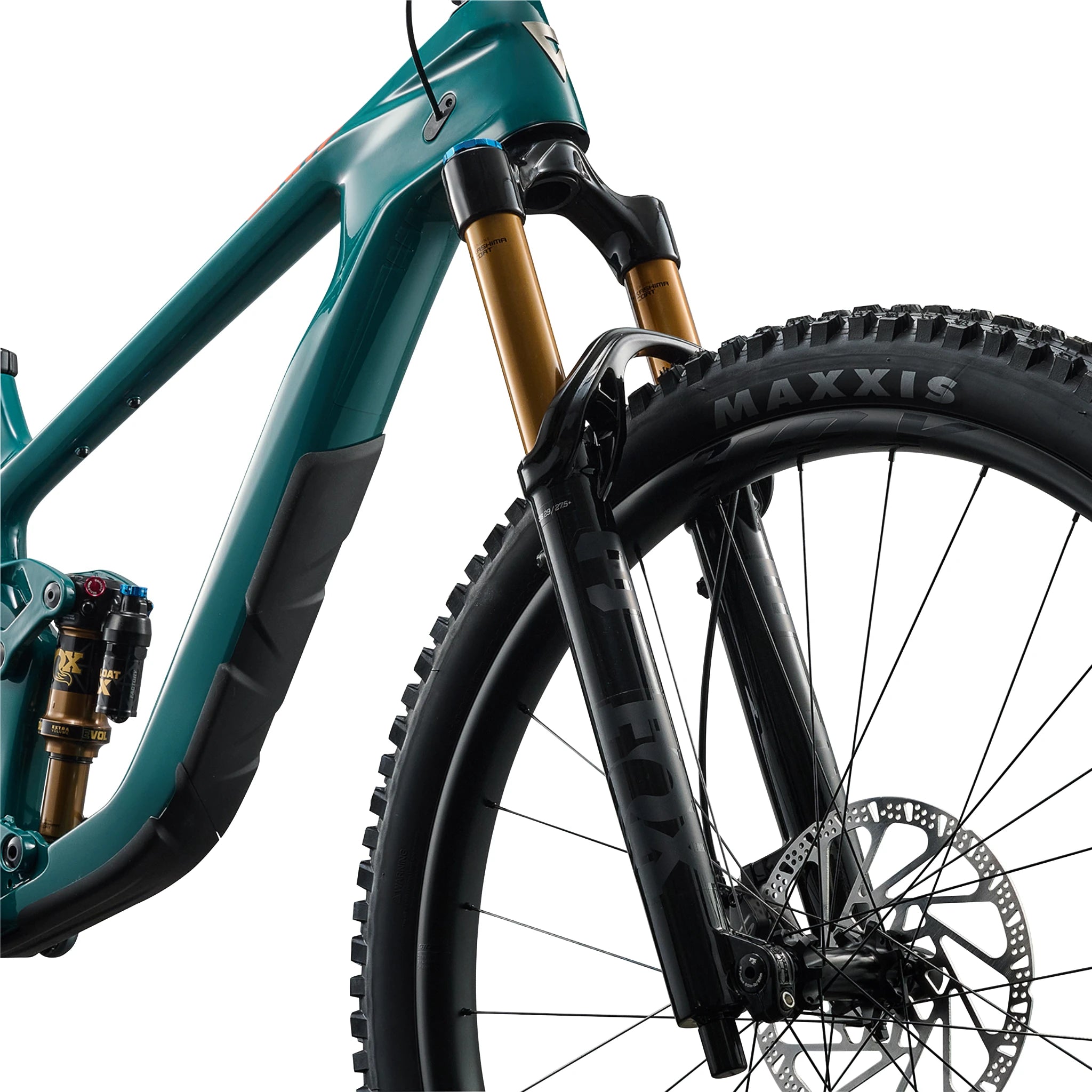

| Fork | Fox 36 Float Factory, 150mm, GRIP X2 damper, 44mm offset, 15x110mm Kabolt X |

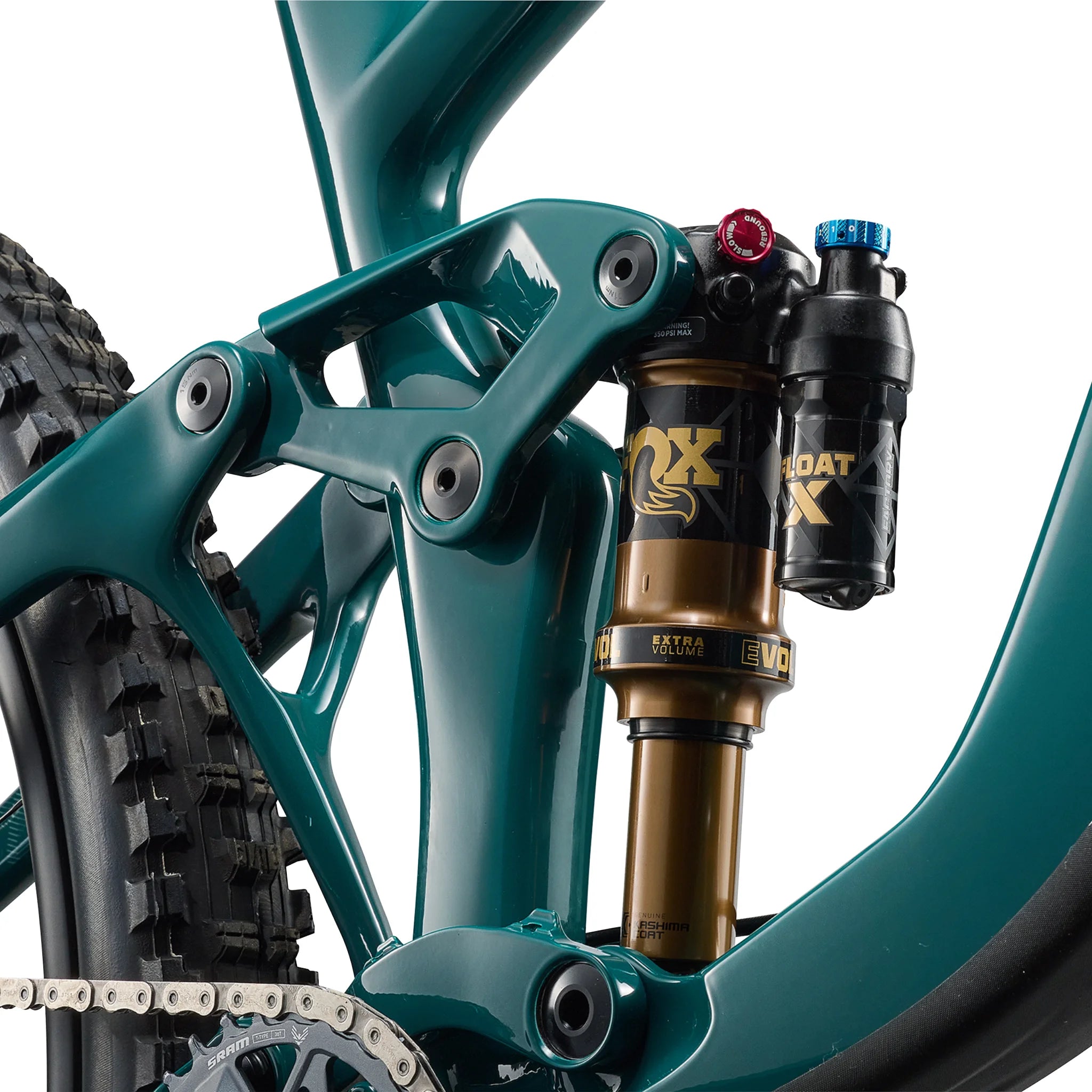

| Shock | Fox Float X Factory, 2-position LSC adjust, 185/52.5 |
| Handlebar | Giant Contact TR35, 20mm rise, 35mm |
| Grips | Giant Tactal Pro single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero SL |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |

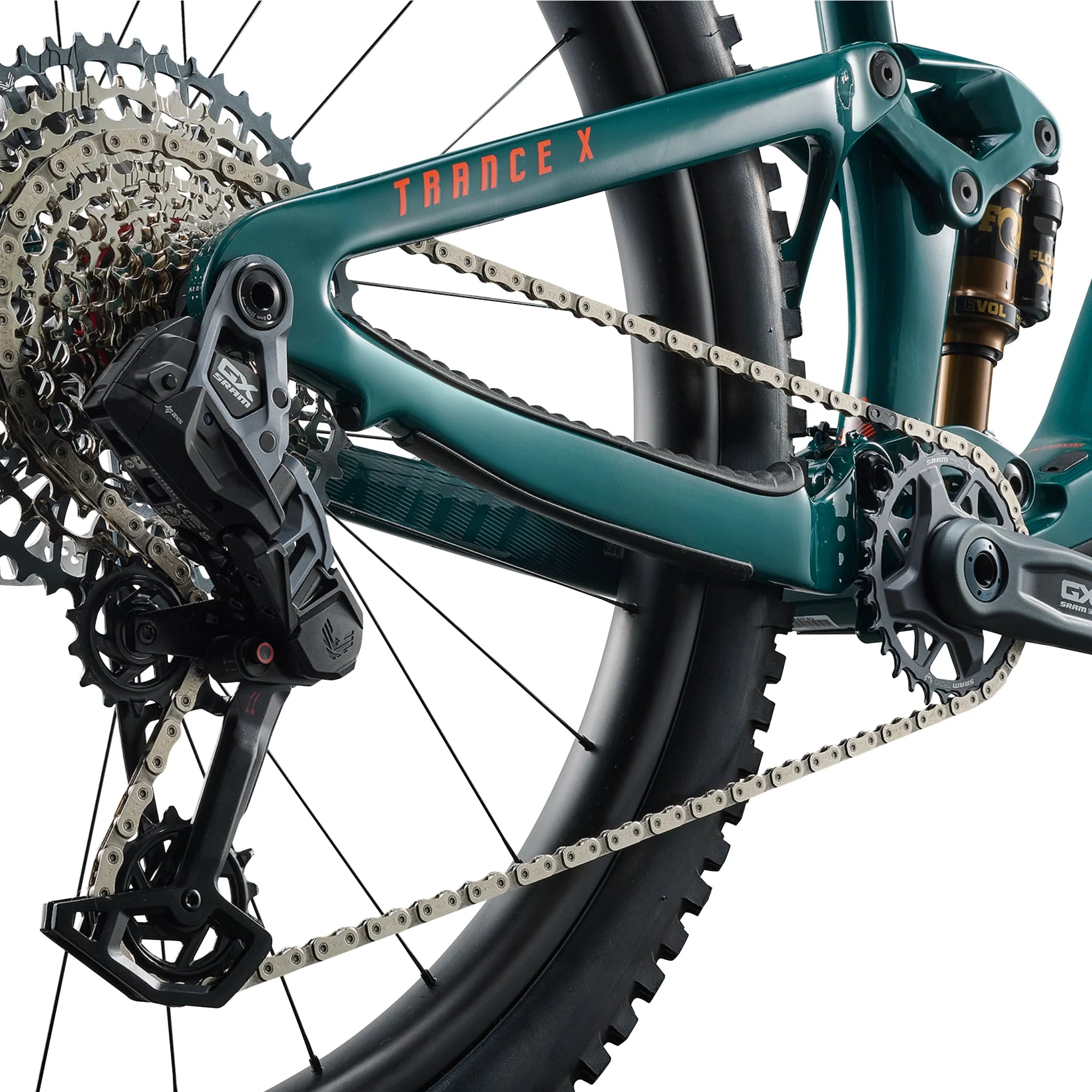

| Rear Derailleur | SRAM GX AXS Transmission |
| Brakes |
TRP EVO Pro HD-M9040, 4-piston, hydraulic TRP SO6E rotors [F] 203mm, [R] 180mm |
| Brake Levers | TRP EVO Pro |
| Cassette | SRAM GX XG-1275 Eagle Transmission, 12-speed, 10x52 |
| Chain | SRAM GX Eagle Transmission |
| Crankset | SRAM GX Eagle Transmission, 32t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX WheelSystem, carbon rim, 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 29 |
| Hubs |
[F] Giant MTB alloy, 6-bolt sealed [R] Giant MTB alloy, 72t POE, 6-bolt, 6-pawl, XD-driver |
| Spokes | Sapim Laser straight pull, DBL technology |
| Tires | [F] Maxxis Assegai 29x2.5" WT, MaxxTerra, EXO, TR, 60TPI, folding [R] Maxxis Minion DHR II 29x2.4" WT, MaxxTerra, EXO, TR, 60TPI, tubeless, folding |
| Extras | 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 34t max chainring size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HI | MD | LO | HI | MD | LO | HI | MD | LO | HI | MD | LO | ||
| A | Reach | 434 | 430 | 426 | 464 | 460 | 456 | 484 | 480 | 476 | 514 | 510 | 507 |
| B | Stack | 611 | 614 | 617 | 616 | 619 | 621 | 625 | 628 | 631 | 634 | 637 | 640 |
| C | Angle de direction | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 | 65.1 | 64.8 | 64.4 |
| D | Hauteur du boitier de pédalier | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 | 30 | 35 | 40 |
| E | Empattement | 1189 | 1189 | 1190 | 1221 | 1222 | 1222 | 1245 | 1246 | 1246 | 1280 | 1280 | 1281 |
| F | Longueur bases | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 | 438 | 439 | 440 |
| G | Hauteur de direction | 100 | 100 | 100 | 105 | 105 | 105 | 115 | 115 | 115 | 125 | 125 | 125 |
| H | Longueur du tube horizontal | 569 | 570 | 571 | 600 | 601 | 602 | 622 | 623 | 624 | 655 | 656 | 656 |
| I | Angle du tube de selle | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 | 77.5 | 77.2 | 76.8 |
| J | Hauteur de surplomb | 742 | 737 | 733 | 746 | 741 | 737 | 763 | 759 | 754 | 762 | 757 | 752 |
| Toutes les mesures en degrés ou millimètres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Hauteur | Impérial | Métrique |
|---|---|---|
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'5" | 187 - 196cm |
Model Numbers
| Size | Model Number | Abyss Teal |
|---|---|
| S | 1111006104 |
| M | 1111006105 |
| L | 1111006107 |
| XL | 1111006108 |
