Amped for Adventure

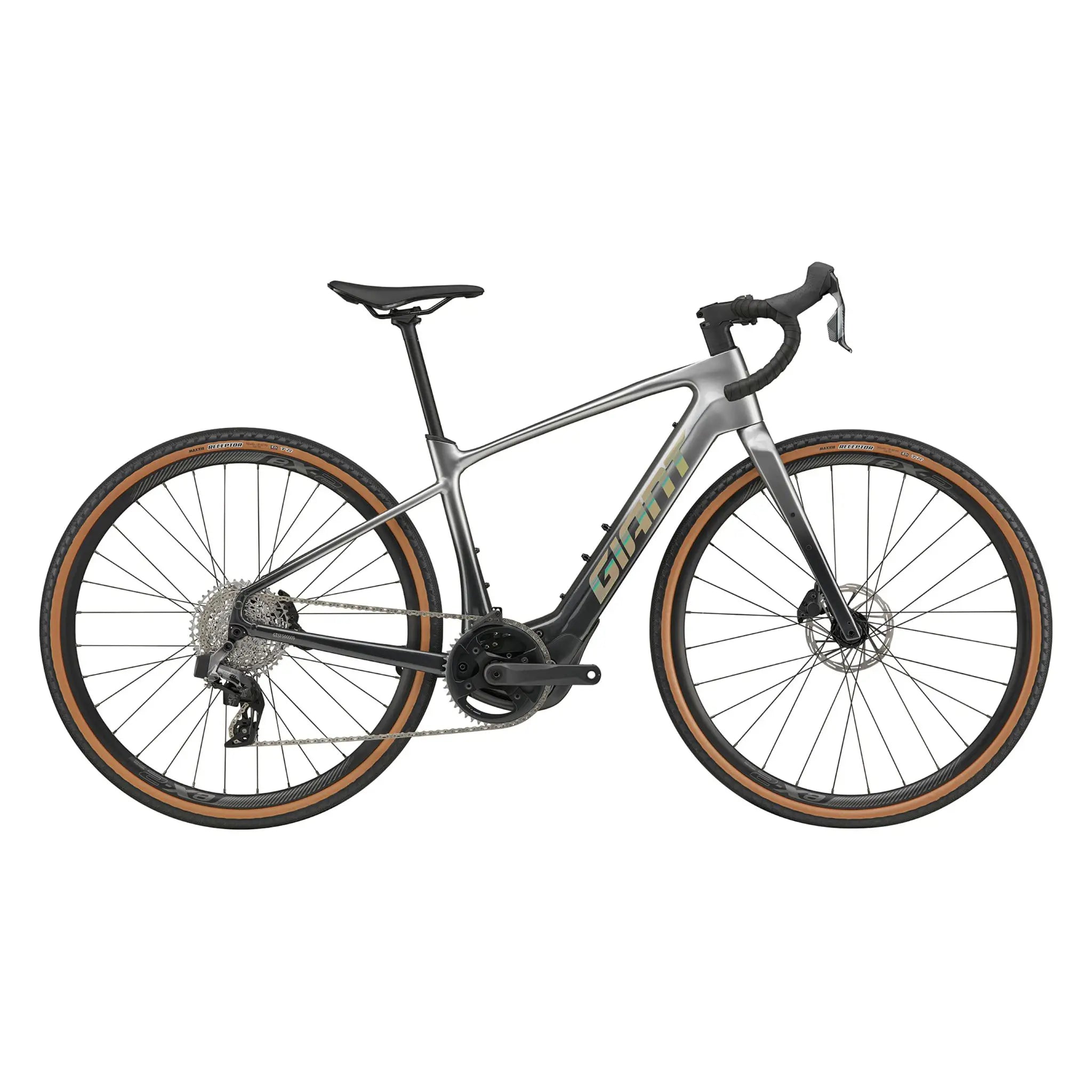

Giant Revolt E+ 1
Local Pickup Only
Giant Revolt E+ 1
$6,499.99
Des routes accidentées aux aventures sur gravier, chemins de terre et terrains mixtes, ce vélo électrique polyvalent à cintre recourbé vous donne la puissance nécessaire pour aller plus loin et plus vite sur tous les itinéraires que vous pouvez imaginer.
210000128501
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Motor | SyncDrive Sport2, 75Nm, powered by Yamaha |
|---|---|
| Controls | Mode support switch from SRAM Blips, 5 power levels plus Smart Assist auto mode |
| Display | RideControl GO, frame integrated LED console - optional ANT+ wireless display compatible |
| Battery | EnergyPak 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible |
| Charger | EnergyPak 4A smart charger, 60% in 1:45h |
| Frame | ALUXX SL-grade aluminum,1.125" - 1.25" head tube, 12x142 thru-axle, KSA18 kickstand mount |
| Fork | Advanced-grade composite, 12x100mm thru-axle |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm |
| Grips | Cork tape with gel |
| Stem | Giant Contact AeroLight, -10 degree |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Approach |
| Rear Derailleur | SRAM Rival XPLR AXS D1 |
| Brakes | SRAM Rival hydraulic SRAM PaceLine rotors [F] 160mm, [R] 160mm |
| Brake Levers | SRAM Rival AXS E1 |
| Cassette | SRAM XPLR XG-1251, 12-speed, 10x44 |
| Chain | SRAM Rival E1 |
| Crankset | FSA E-crank alloy, SRAM X-SYNC chain ring 46t, 107BCD |
| Rims | Giant eX 2 Disc wheelset, alloy, tubeless ready, 22mm IW, 24mm H |
| Hubs | Giant eTracker, [F] 100x12mm thru-axle, [R] 142x12mm thru-axle |
| Spokes | Sapim [F] Race, [R] E-Lite, e-bike optimized |
| Tires | Maxxis Receptor, 700X40c, folding, TLR, EXO, 120TPI |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool), 50mm max tire size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| XS | S | M | ML | ||||
|---|---|---|---|---|---|---|---|
| A | Reach | 399 | 404 | 408 | 410 | ||
| B | Stack | 563 | 563 | 577 | 592 | ||
| C | Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | ||
| D | Bottom Bracket Drop | 75 | 75 | 75 | 75 | ||
| E | Wheelbase | 1069 | 1078 | 1079 | 1090 | ||
| F | Chainstay Length | 455 | 455 | 455 | 455 | ||
| G | Head Tube Length | 135 | 135 | 150 | 165 | ||
| H | Top Tube Length | 550 | 560 | 570 | 580 | ||
| I | Seat Tube Angle | 75° | 75° | 74° | 74° | ||
| J | Standover Height | 702 | 747 | 798 | 810 | 830 | |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'3" - 5'8" | 161 - 172cm |
| S | 5'3" - 5'8" | 161 - 172cm |
| M | 5'6" - 5'10" | 168 - 178cm |
| ML | 5'9" - 6'1" | 175 - 185cm |
Model Numbers
| Size | Model Number |
|---|---|
| Galaxy Silver | |
| XS | 7521008103 |
| S | 7521008104 |
| M | 7521008105 |
| M/L | 7521008106 |
