Régner Suprême
Giant Reign Advanced Frameset
Local Pickup Only
Contact For Availability
Giant Reign Advanced Frameset
$4,299.00
Allez vite, défoulez-vous et maîtrisez de nouvelles trajectoires. Doté d'un châssis entièrement composite, développé avec les professionnels de la course d'enduro de Giant, ce vélo 29/27,5 pouces très performant offre une suspension arrière Maestro de 160 mm, une géométrie réglable et la possibilité de passer à une roue arrière de 29 pouces.
Points forts
- Amortisseur Fox Factory
- Rangement dans le tube diagonal
- Cadre en carbone Advanced
210000128375
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Frame | Advanced-grade composite front and rear triangles, 160mm Maestro suspension, flip chip - Maestro 3, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated down tube storage |
|---|---|

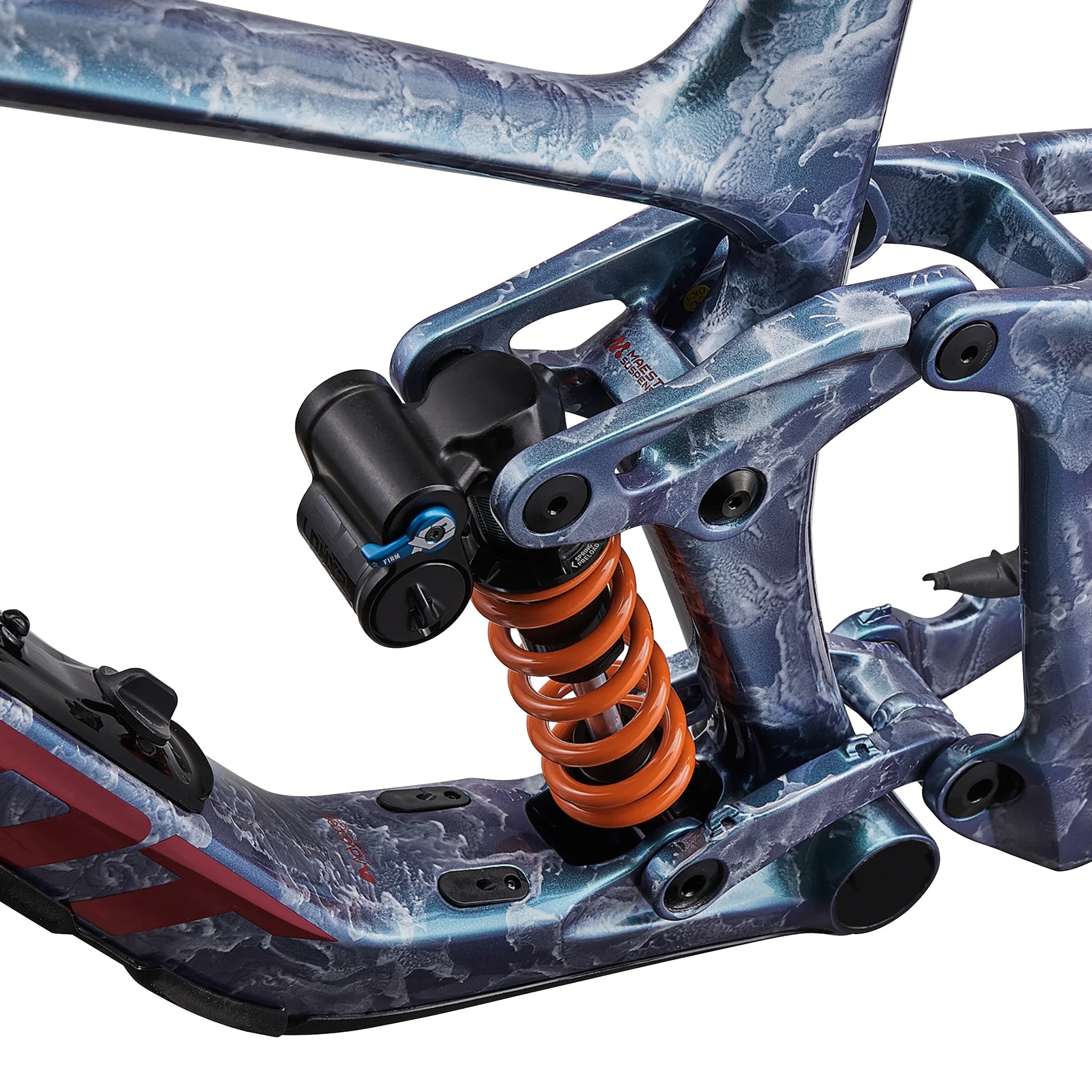

| Shock |
Fox Float DHX2 Factory, 2-position adjust, 205/62.5, custom tuned for
Giant S, M:425#, L:450#, XL:475# |
| Extras | MRP AMG CS chain guide, headset, 12mm rear thru-axle, 3M tailgate protector, 2.5" max tire size, 36t max chainring size |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| HIGH|MID|LOW | HIGH|MID|LOW | HIGh|MID|LOW | HIGH|MID|LOW | ||
| A | Reach | 426 | 430 | 434 | 456 | 460 | 464 | 476 | 480 | 484 | 506 | 510 | 514 |
| B | Stack | 627 | 624 | 622 | 632 | 629 | 626 | 641 | 638 | 635 | 645 | 642 | 639 |
| C | Angle de direction | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| D | Hauteur du boitier de pédalier | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 | 35 | 30 | 25 |
| E | Empattement | 1214 | 1213 | 1212 | 1246 | 1245 | 1244 | 1271 | 1270 | 1269 | 1304 | 1303 | 1302 |
| F | Longueur bases | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 | 445 | 443 | 442 |
| G | Hauteur de direction | 100 | 105 | 115 | 120 |
| H | Longueur du tube horizontal | 556 | 555 | 555 | 587 | 586 | 585 | 620 | 620 | 619 | 652 | 652 | 651 |
| I | Angle du tube de selle | 78.3° | 78.7° | 79.0° | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| J | Hauteur de surplomb | 720 | 724 | 729 | 735 | 739 | 744 | 751 | 756 | 760 | 746 | 751 | 756 |
| Toutes les mesures en degrés ou millimètres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| S | 5'4" - 5'8" | 163- 172cm |
| M | 5'7" - 5'11" | 171 - 188cm |
| L | 5'10" - 6'2" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
Model Numbers
| Size | Model Number |
|---|---|
| Glacier Storm | |
| M | 1907003105 |
| L | 1907003107 |
| XL | 1907003108 |
