Thrill Seeker
Giant Reign Advanced E+ 1
Local Pickup Only
Contact For Availability
Giant Reign Advanced E+ 1
$10,299.00
Le Reign Advanced E+, le vélo qui redéfinit les possibilités en montagne. Né d’une passion pour les sentiers les plus sauvages et les descentes les plus vertigineuses, c’est une machine conçue pour vous permettre de continuer à repousser vos limites lorsque les autres lèvent le pied.
Points forts
- Suspension Fox Performance Elite
- Transmission SRAM 90
- Batterie de 560 Wh avec prolongateur d’autonomie de 280 Wh
210000129838
Colour
Quantité
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
| Sizes | S, M, L, XL |
|---|---|
| Colour | Mars Dust |

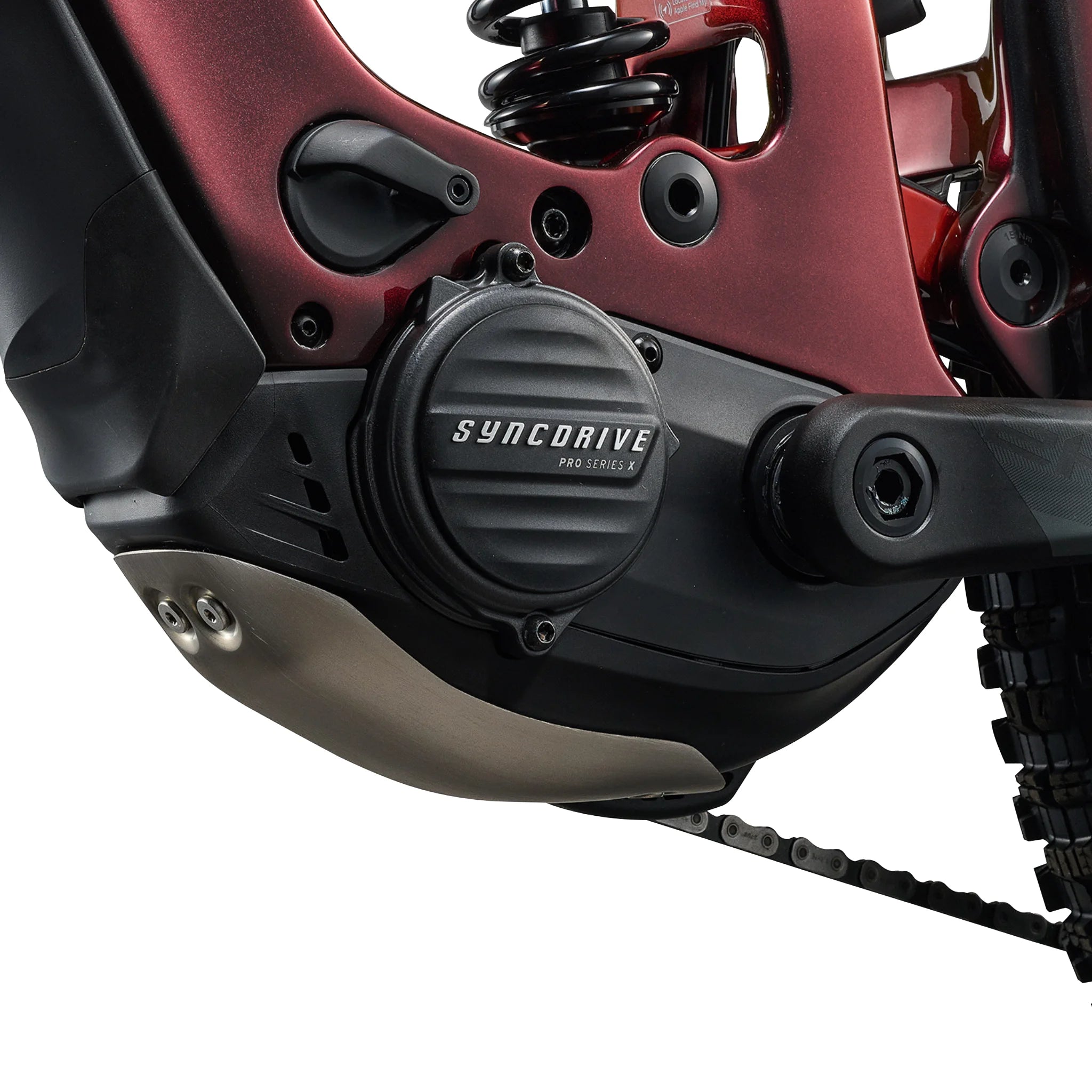

| Motor | SyncDrive Pro3X, 100Nm , powered by Yamaha |
| Controller | RideControl Ergo 4, 5 power levels plus Smart Assist auto mode |

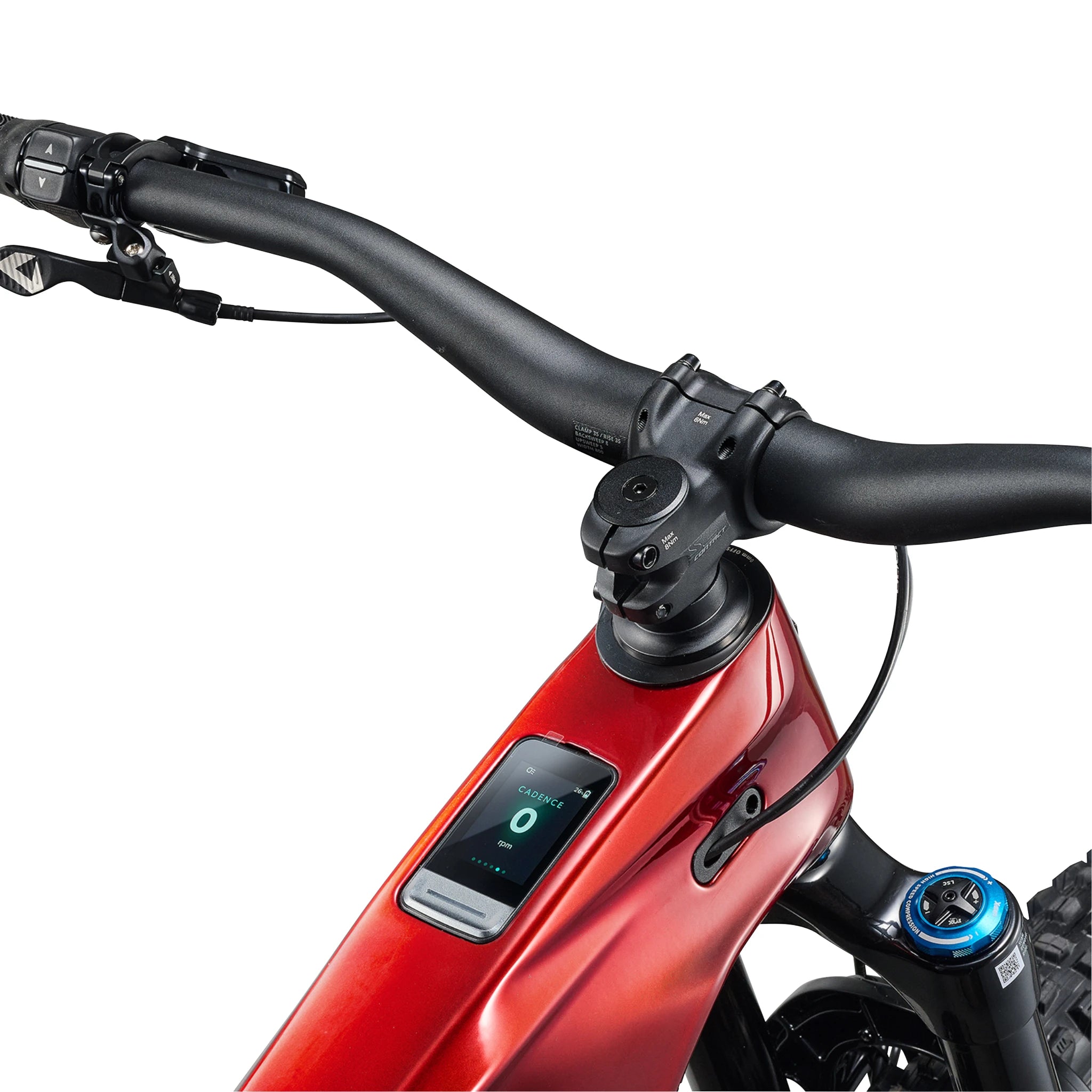

| Display | RideControl GO Lux, full color LCD screen |

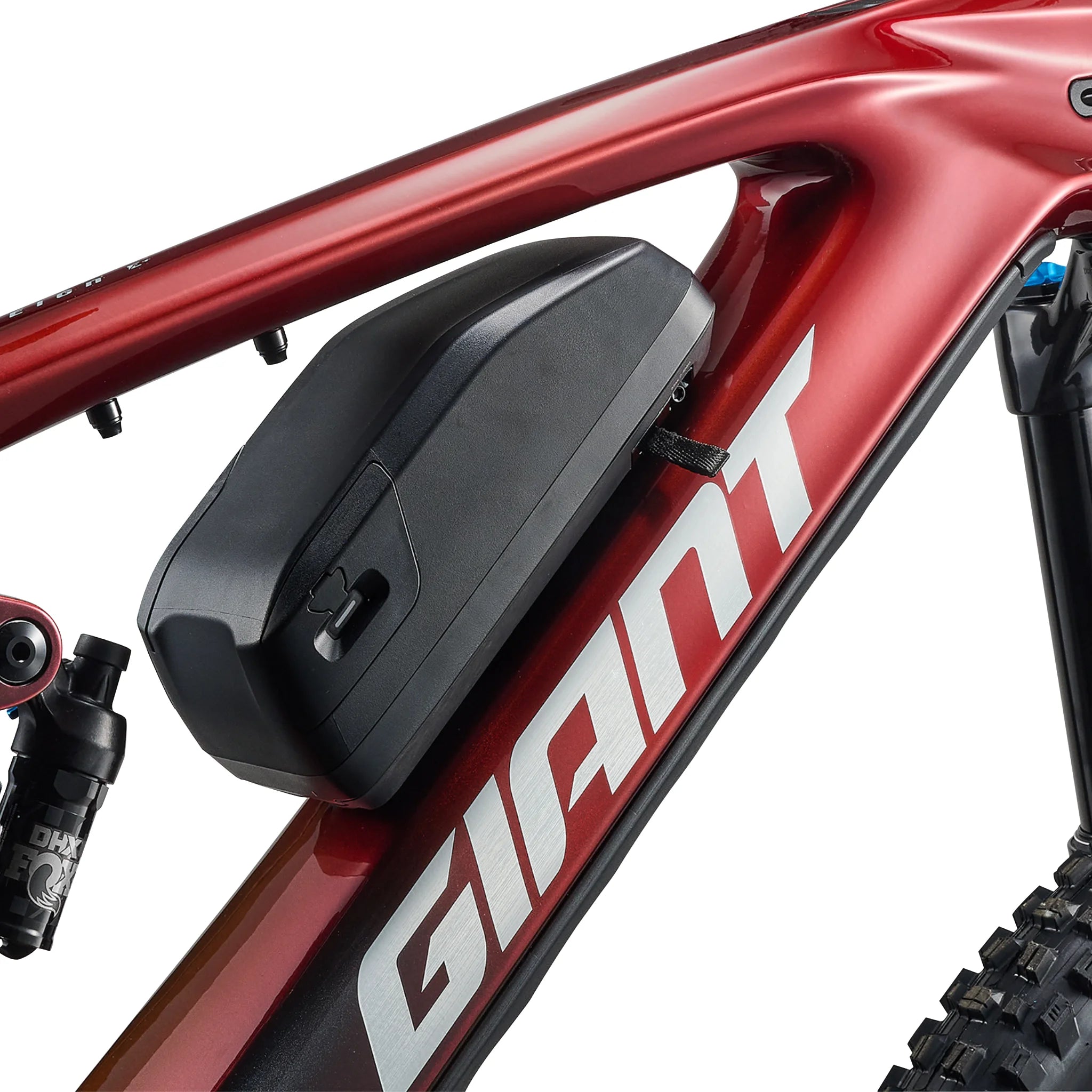

| Battery | EnergyPak Smart 560Wh, integrated, 48V EnergyPak Plus 280Wh range extender included |
| Charger | EnergyPak 4A, 48V smart charger |
| Frame | Advanced-grade composite front and rear triangles, 170mm Maestro suspension, flip chip - Maestro 3, 12x148 thru-axle |

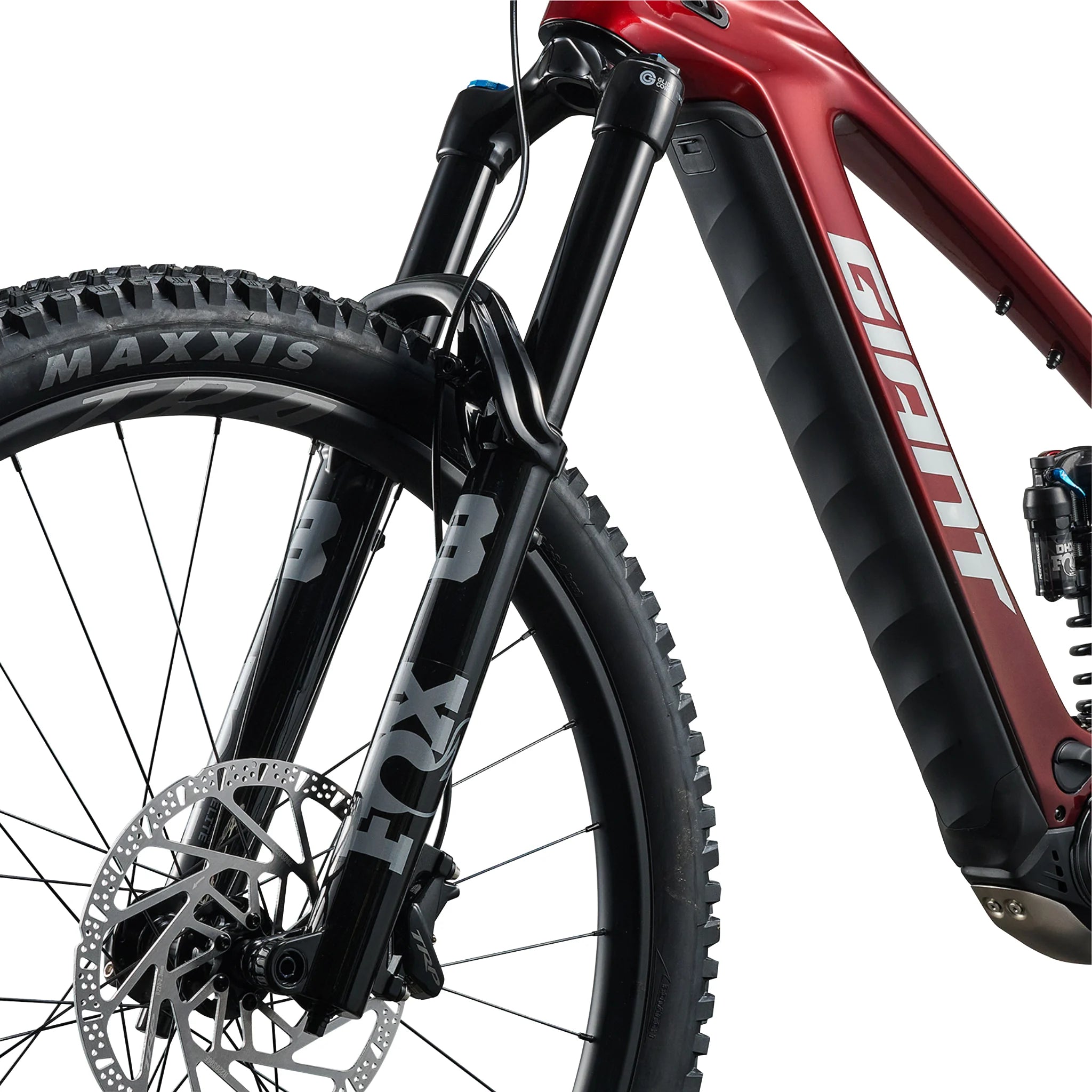

| Fork | Fox Float 38 Performance Elite, 180mm, GRIP X2 damper, 4-way adjust, 44mm offset, 110x15mm, Kabolt X |

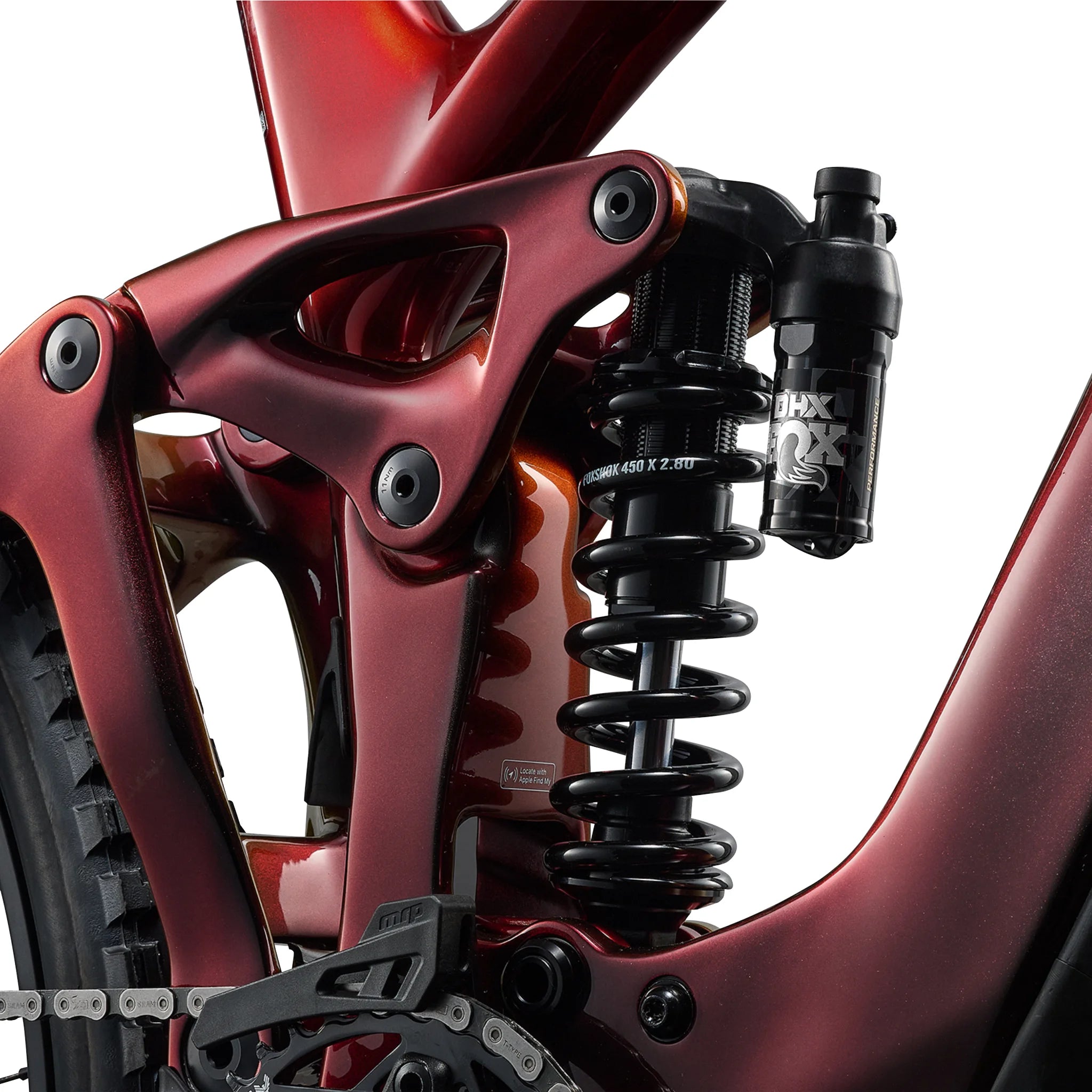

| Shock | Fox DHX Performance Elite, Std steel spring, 205/65, custom tuned for Giant |
| Handlebar | Giant Contact SL TR35, 20mm rise, 35mm |
| Grips | Giant Tactal Pro-E single lock-on |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote S: 110-140mm travel / 30.9 x 395 M: 140-170mm travel / 30.9 x 470mm L/XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero |
| Shifters | SRAM Eagle 90, 1x12 |

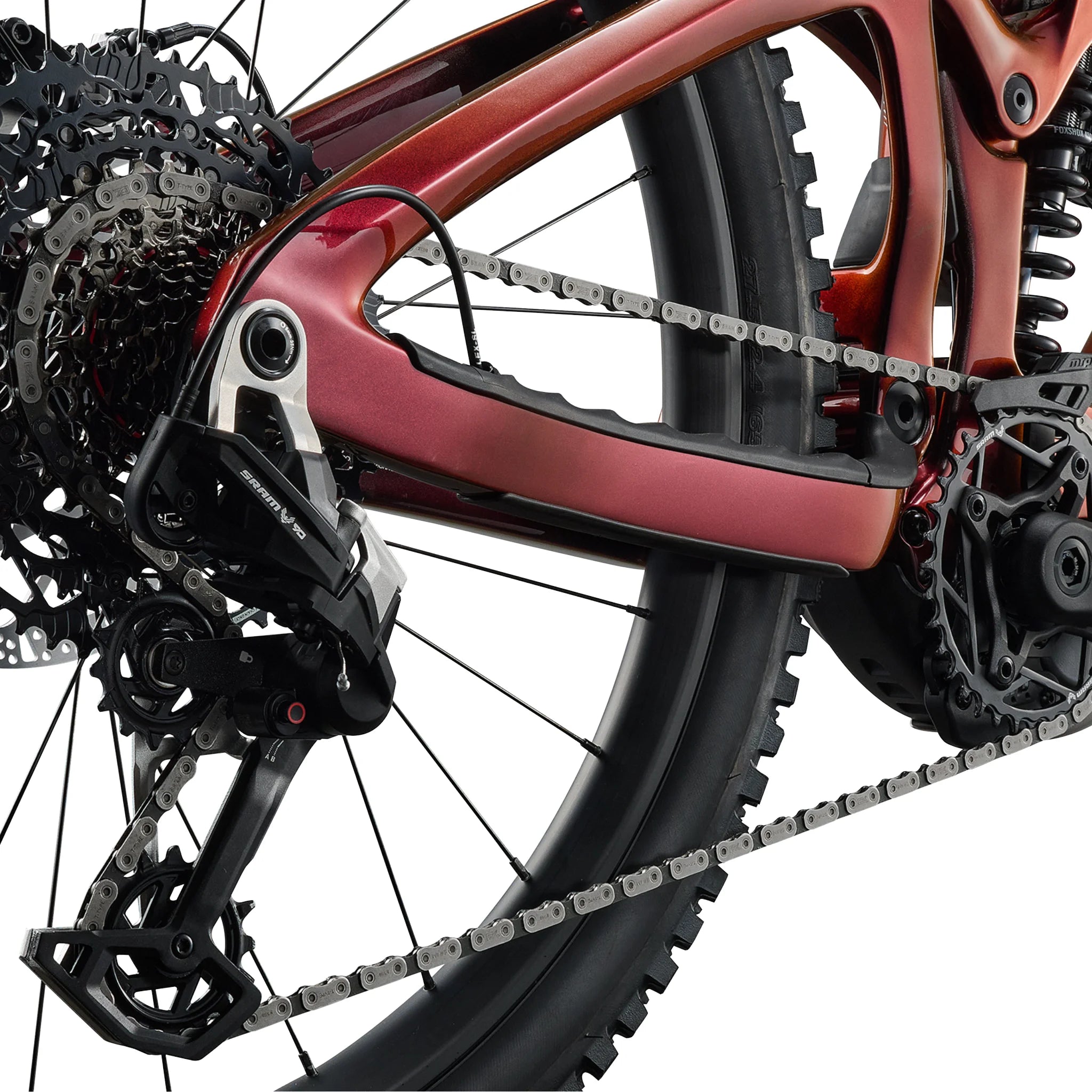

| Rear Derailleur | SRAM Eagle 90 Transmission |
| Brakes | TRP EVO Expert HD-M8040, 4-piston, hydraulic TRP RS05E 2.3mm Race rotors [F] 220mm, [R] 220mm |
| Brakes Levers | TRP EVO Expert |
| Cassette | SRAM XS-1270 V2 Eagle Transmission, 12-speed, 10x52 |
| Chain | SRAM 70 Eagle Transmission |
| Crankset | Praxis e-HD forged alloy crank SRAM Eagle Transmission chain ring, 36t, 104 BCD MRP E-AMg, custom bashguard with integrated damping |
| Rims | Giant TRA 2 6061 alloy, sleevejoint, hookless 30mm IW, 40mm OW, 21mm H, Wide Guard technology [F] 29, [R] 27.5 |
| Hubs | Giant E-Drive 260Nm 6-Pawl Driver, 72t engagement [F] 110x15mm thru-axle [R] 148x2mm thru-axle, e-bike optimized |
| Spokes | Sapim [F] Race, [R] E-Lite, e-bike optimized |
| Tires | [F] Maxxis Assagai 29x2.5", folding, TR, EXO+, 3C MaxxGrip, tubeless, 60TPI [R] Maxxis Minion DHR II 27.5x2.4" WT folding, TR, DD, 3C MaxxGrip, tubeless 60TPI |
| Extras | Tubeless kit (liquid, valves, levers, manual, tool) Inner tube supplied Aegis tire checker |
*Les spécifications sont susceptibles d’être modifiées sans préavis
Geometry
| S | M | L | XL | ||
|---|---|---|---|---|---|
| BAS | MILIEU | HAUT | BAS | MILIEU | HAUT | BAS | MILIEU | HAUT | BAS | MILIEU | HAUT | ||
| A | PORTÉE | 426 | 430 | 435 | 456 | 460 | 465 | 476 | 480 | 485 | 505 | 510 | 514 |
| B | STACK | 647 | 645 | 642 | 656 | 654 | 651 | 669 | 667 | 665 | 683 | 680 | 678 |
| C | ANGLE DE LA TUBE DE DIRECTION | 77.1° | 77.5° | 77.9° | 63,1° | 63,5° | 63,9° | 63,1° | 63,5° | 63,9° | 63,1° | 63,5° | 63,9° |
| D | DÉPORT DE BOÎTIER DE PÉDALIER | 10 | 5 | 0 | 10 | 5 | 0 | 10 | 5 | 0 | 10 | 5 | 0 |
| E | EMPATTEMENT | 1226 | 1226 | 1227 | 1261 | 1261 | 1261 | 1287 | 1288 | 1288 | 1323 | 1323 | 1324 |
| F | LONGUEUR DES BASES | 450 | 450 | 450 | 450 |
| G | LONGUEUR DE LA TUBE DE DIRECTION | 95 | 105 | 110 | 135 |
| H | LONGUEUR DE LA TUBE DE SELLE | 400 | 425 | 450 | 475 |
| I | ANGLE DE LA TUBE DE SELLE | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° | 77.1° | 77.5° | 77.9° |
| Toutes les mesures en degrés ou en millimètres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | Impérial | Métrique |
|---|---|---|
| S | 5'4" - 5'9" | 163- 174cm |
| M | 5'7" - 6'0" | 171 - 188cm |
| L | 5'10" - 6'3" | 179 - 188cm |
| XL | 6'2" - 6'6" | 187 - 198cm |
Model Numbers
| Size | Model Number |
|---|---|
| Mars Dust | |
| S | 5461010104 |
| M | 5461010105 |
| L | 5461010107 |
| XL | 5461010108 |
