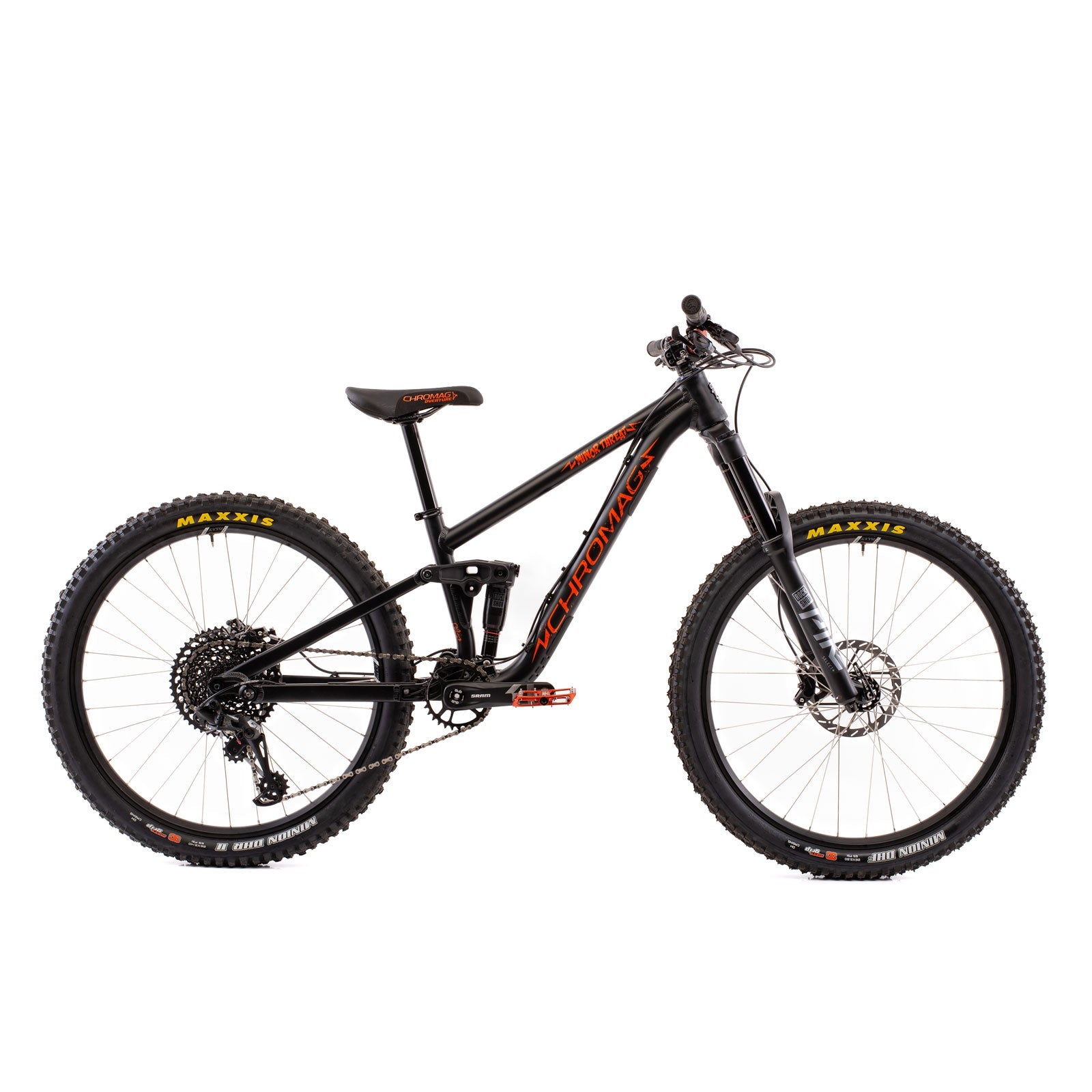

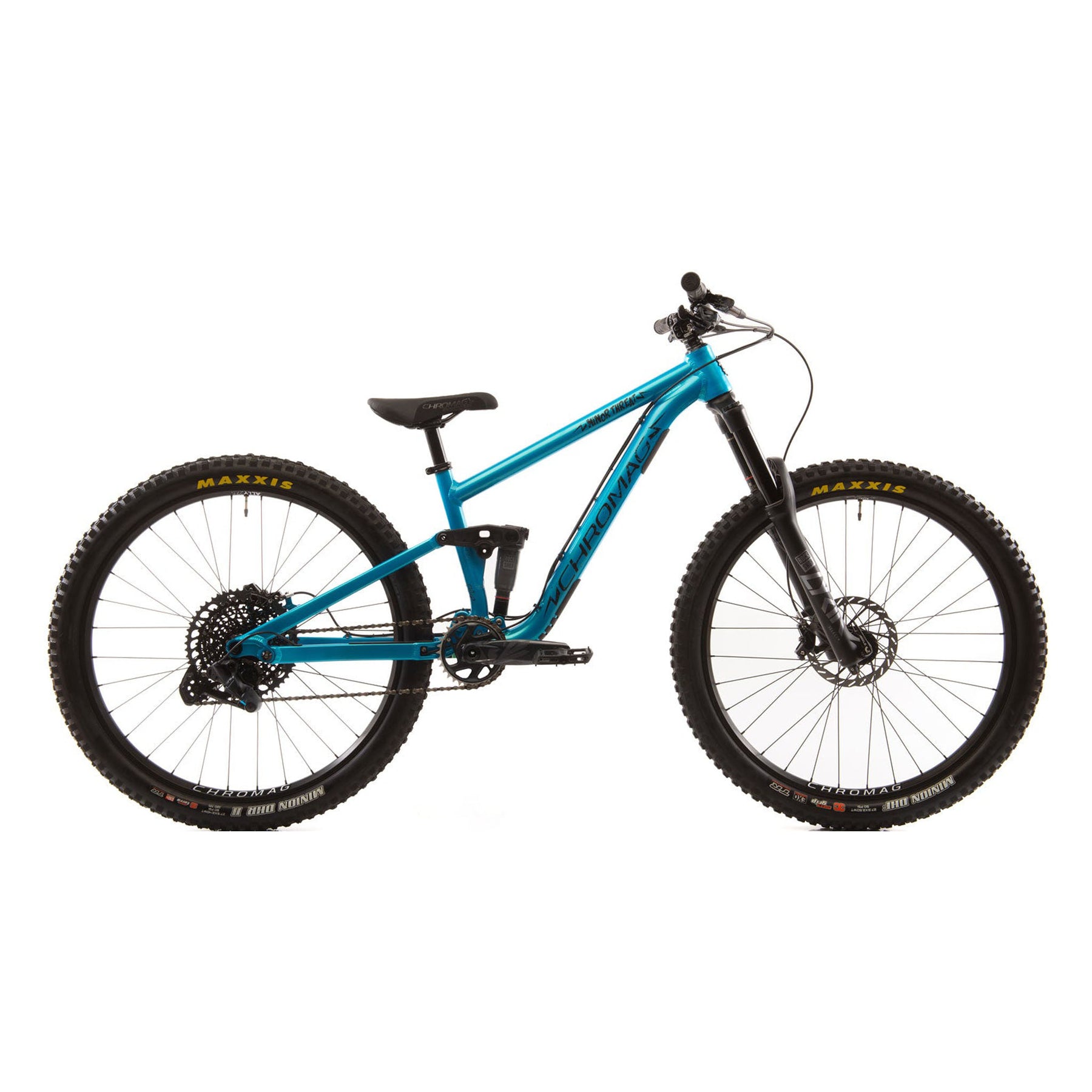

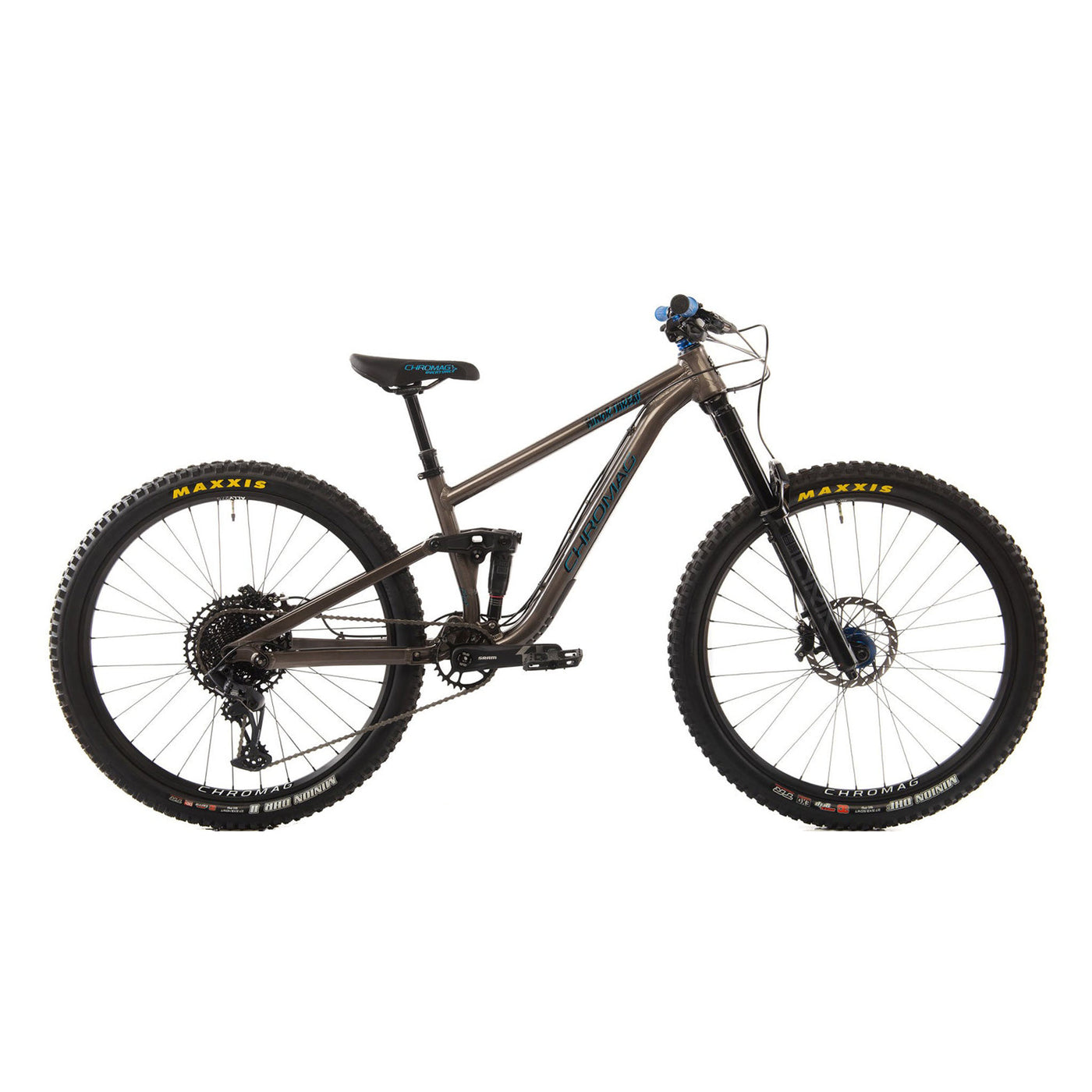

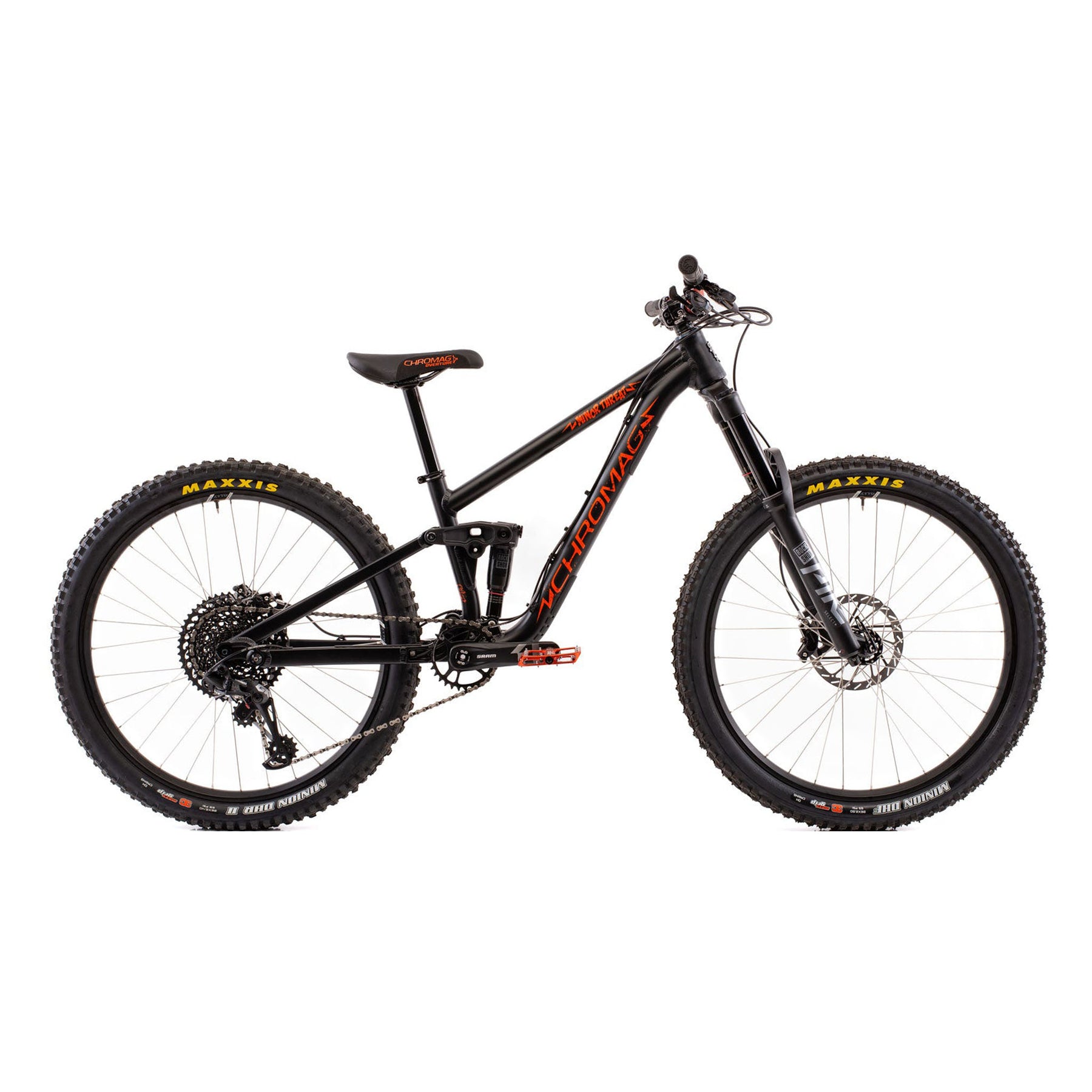

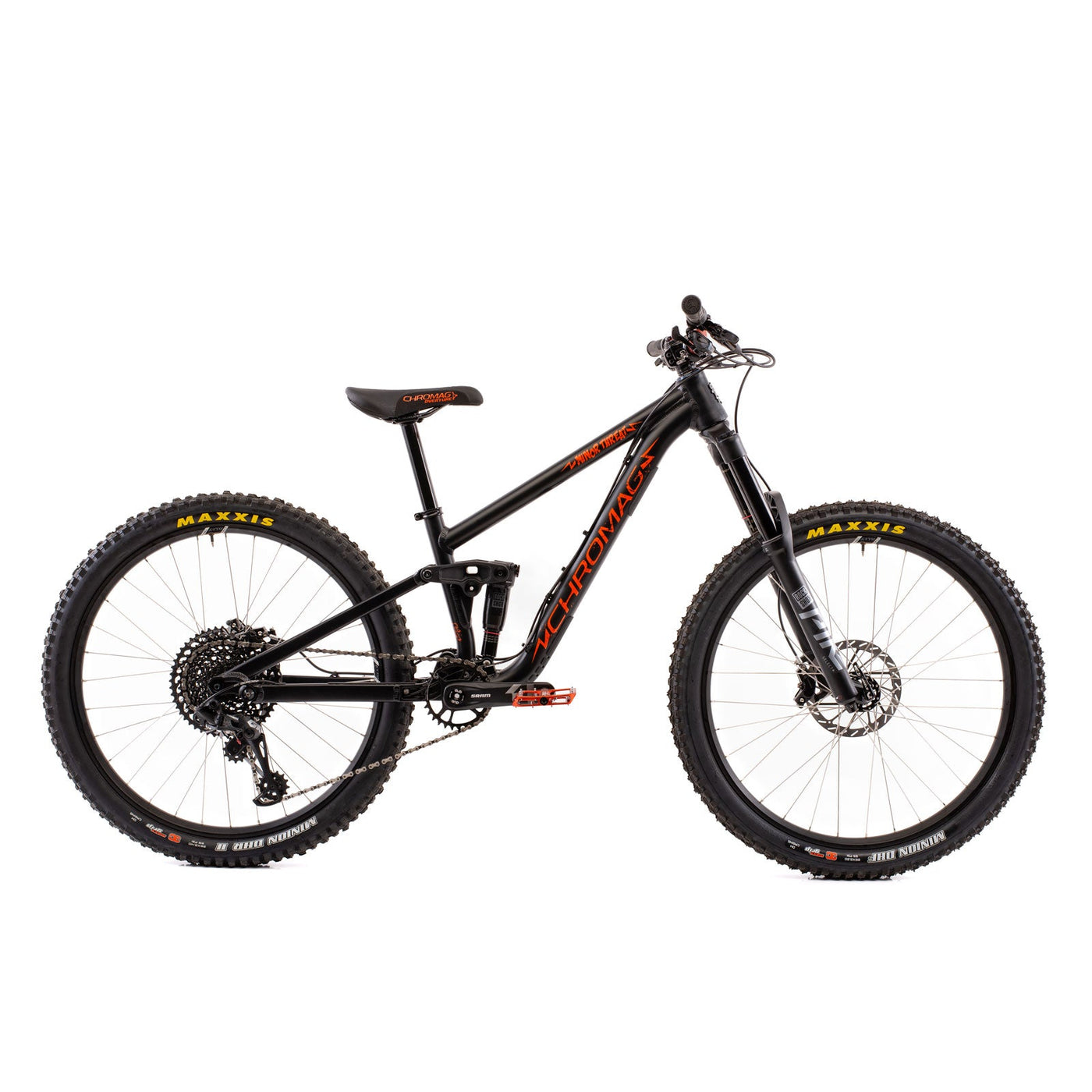

Chromag Menace Mineure V2
Specifications
Fourche Rock Shox Reba 26”, 140mm(24")
Rock Shox Lyrik 27.5”, 150mm (26" & 27.5")

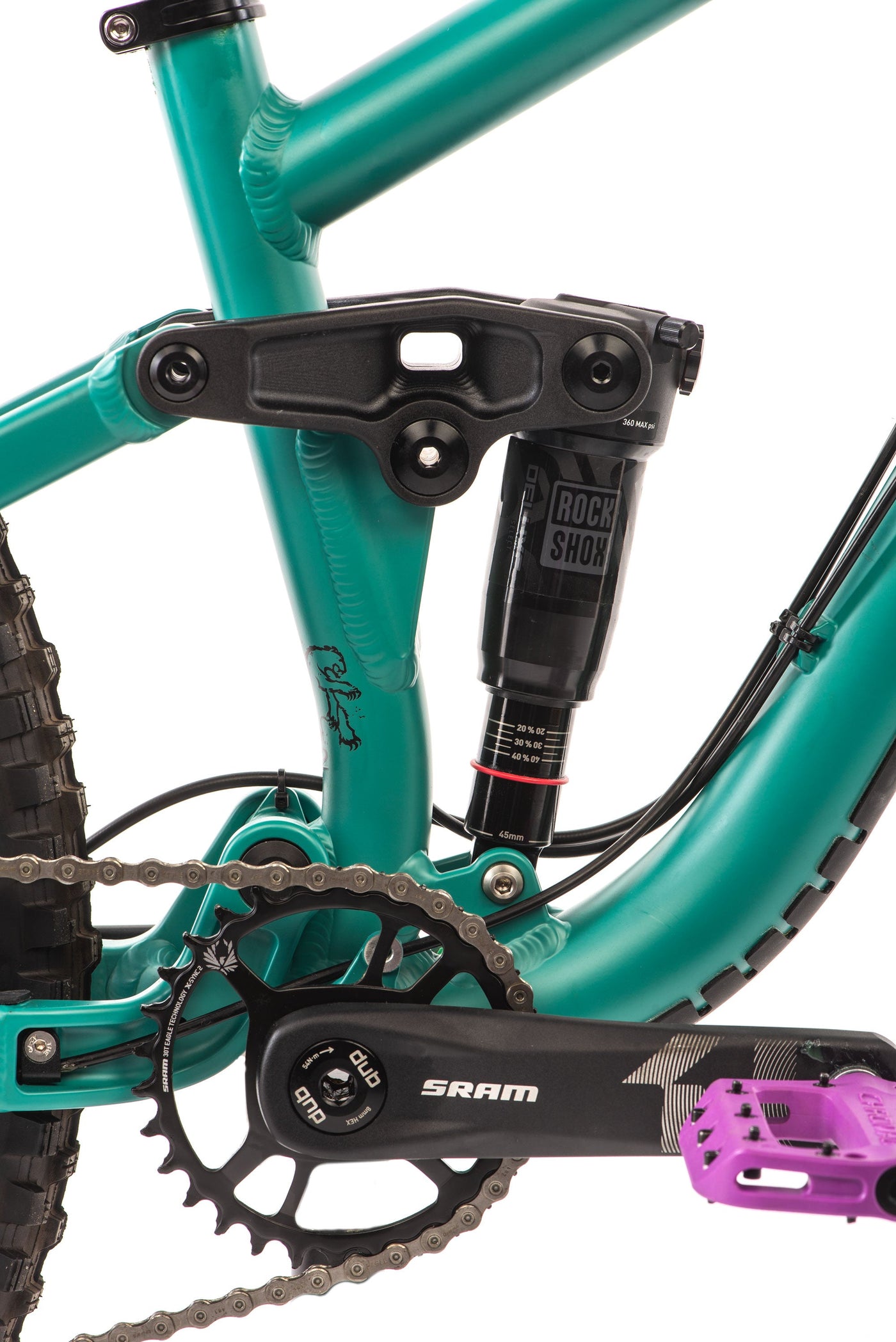

Amortisseur Rock Shox Deluxe Select, 165 x 45mm

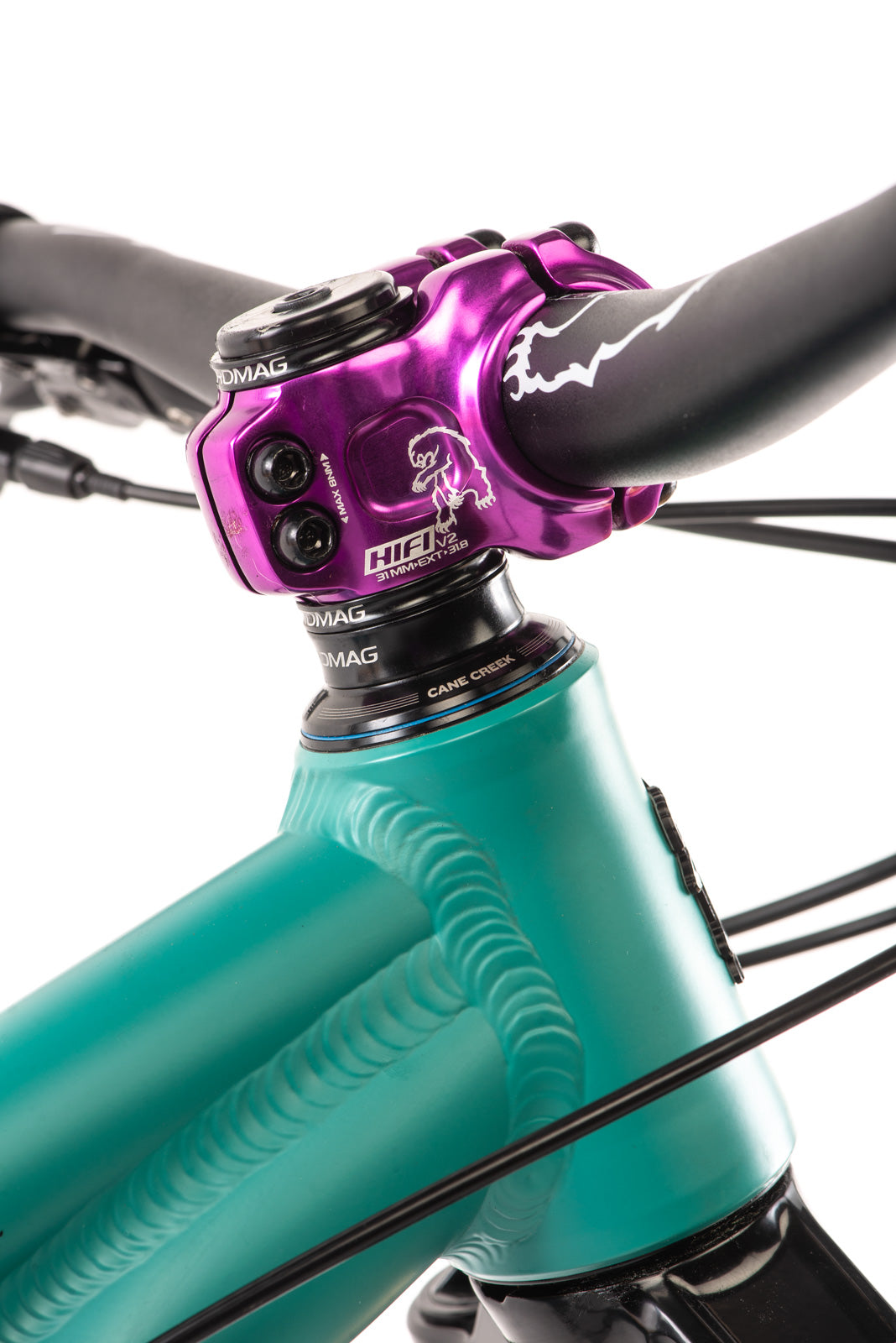

Potence Chromag HiFi BSX 31mm

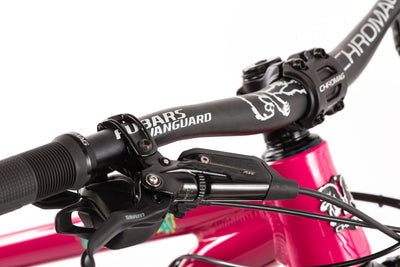

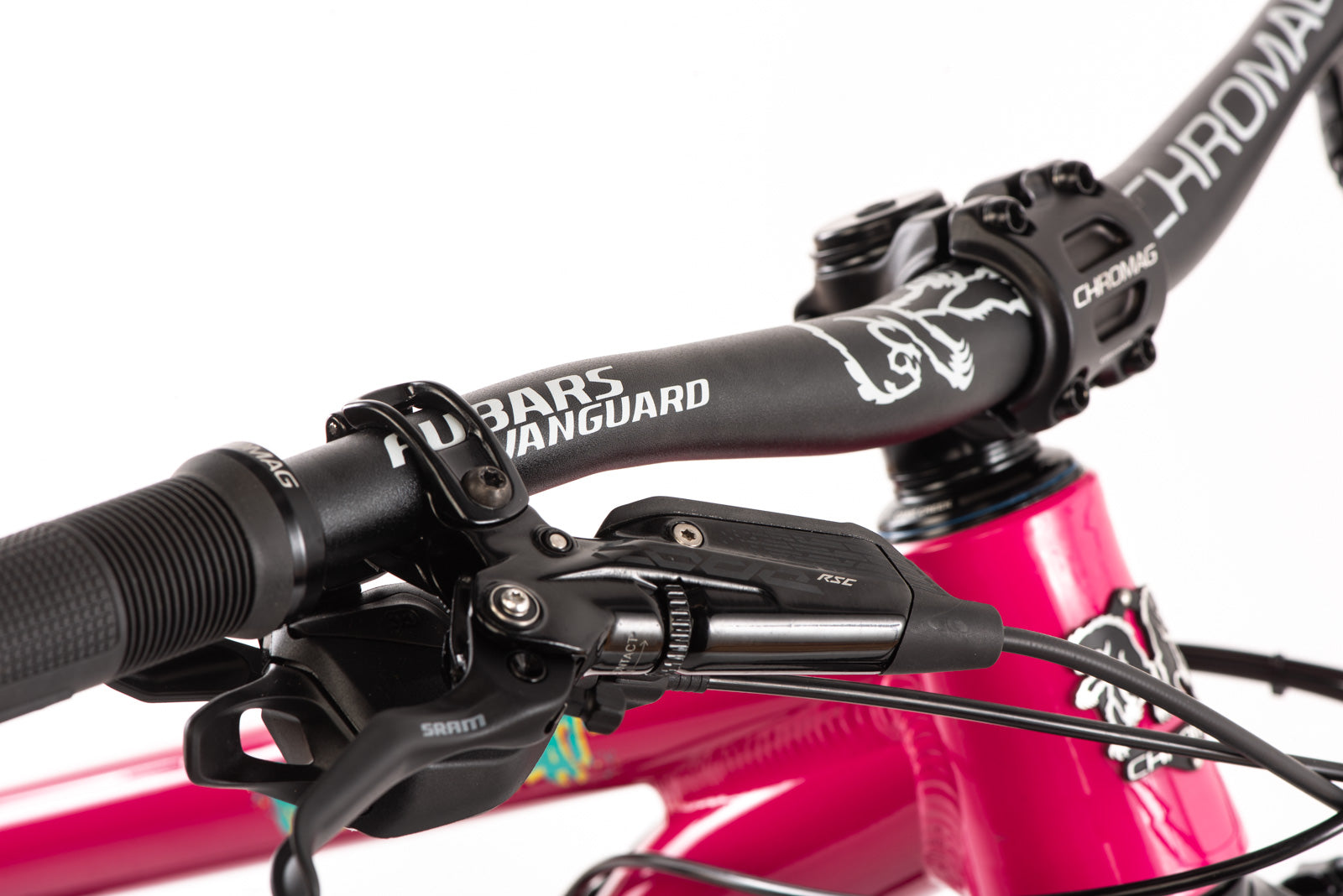

Guidon Chromag Vanguard, 720mm, 31.8mm
Jeu de direction Cane Creek Forty ZS
Pédalier SRAM X1 Eagle DUB, 155mm, 30t
Freins Code RSC SRAM
Rotors 180mm SRAM
Manette SRAM NX Eagle

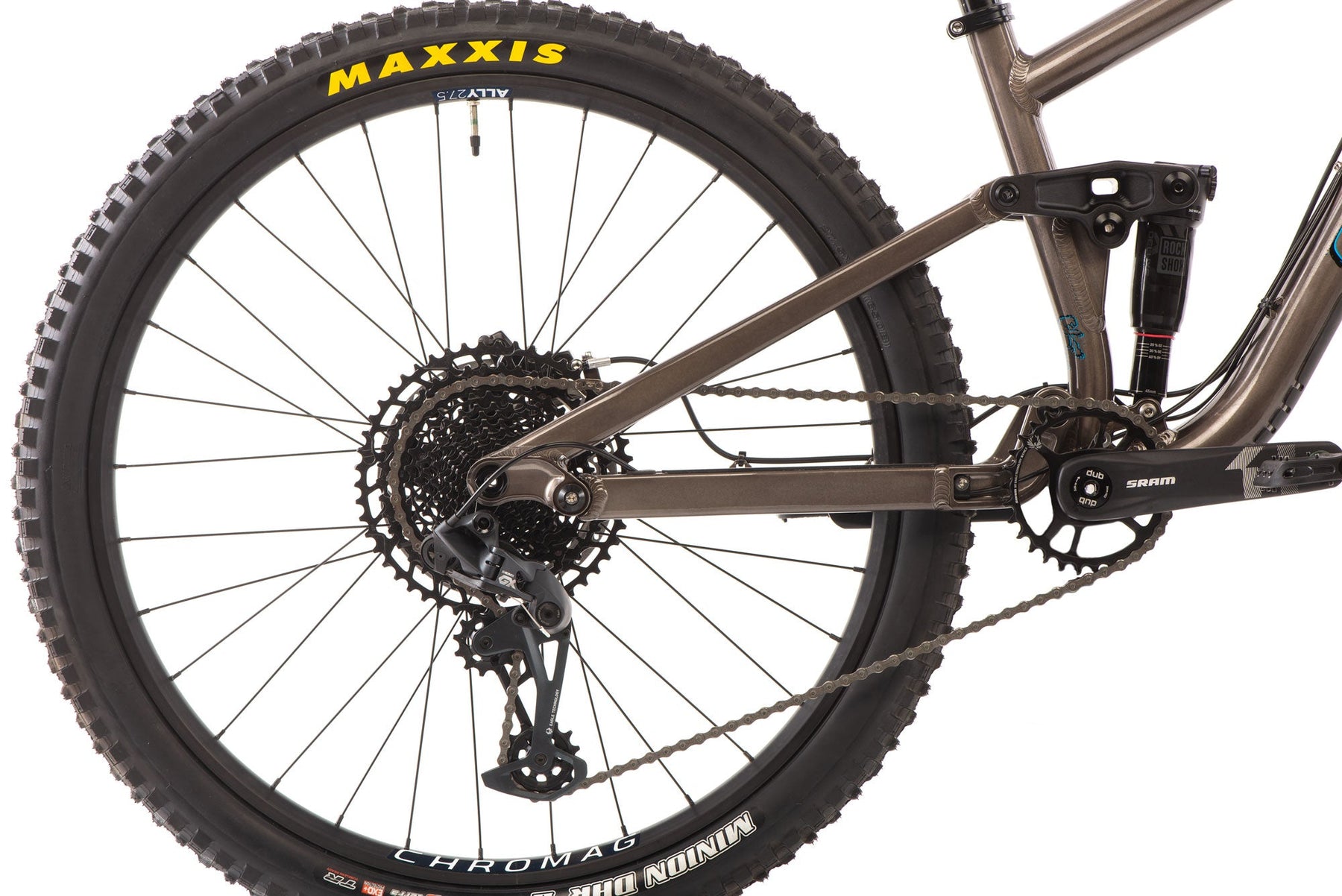

Cassette SRAM NX Eagle 10-50t
Dérailleur SRAM GX Eagle
Chaîne SRAM NX Eagle
Jantes Ally Chromag

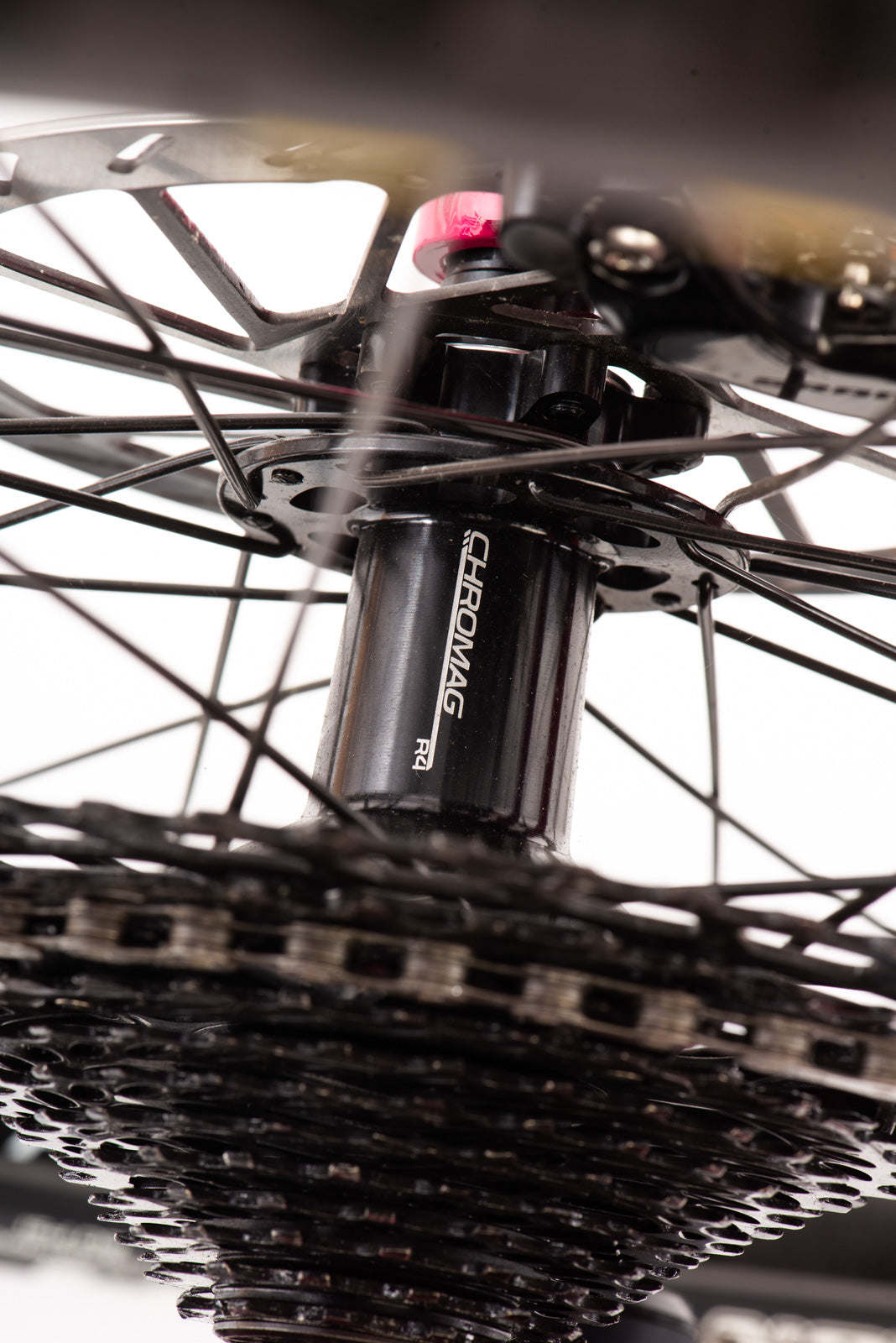

Moyeux R4 Chromag
Pneus Maxxis Minion DHF/DHRII

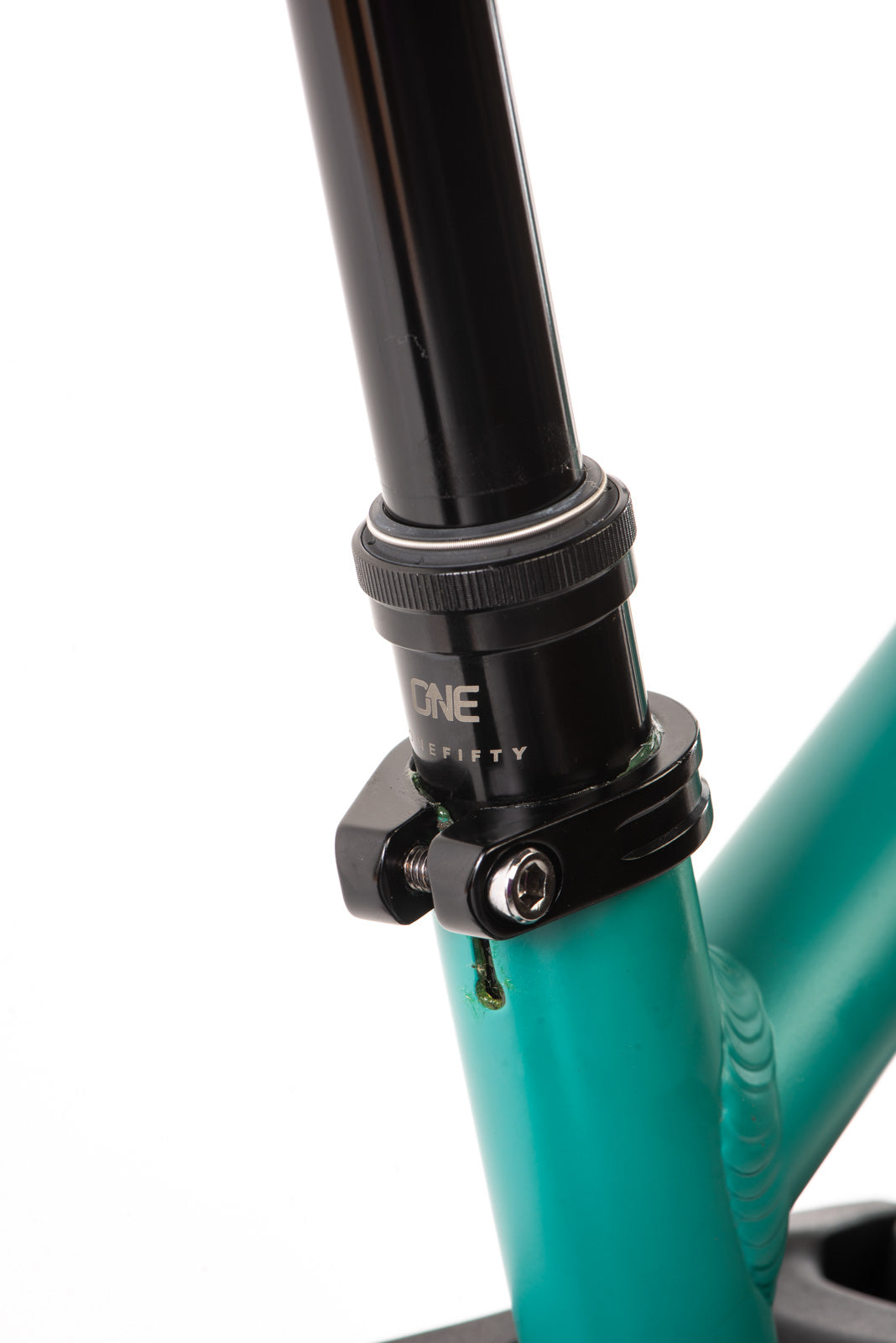

Tige de selle Bassix Chromag
Selle Ouverture Chromag
Poignées Format Chromag
Pédales Chromag Synth
Geometry
| S1 (24") | S2 (26") | S3 (27.5") | ||
|---|---|---|---|---|
| A | Reach | 360 | 400 | 420 |
| B | Stack | 546 | 571 | 571 |
| C | Angle de direction | 64° | 64° | 64° |
| D | Hauteur du boitier de pédalier | 8 | 15 | 15 |
| E | Empattement | 1077 | 1140 | 1170 |
| F | Longueur bases | 410 | 420 | 430 |
| G | Hauteur de direction | 95 | 95 | 95 |
| H | Longueur du tube horizontal | 486 | 532 | 552 |
| I | Angle du tube de selle | 77° | 77° | 77° |
| J | Hauteur de surplomb | 606 | 655 | 690 |
| Toutes les mesures en degrés ou millimètres | ||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | |
|---|---|---|
| Impérial | Métrique | |
| S1 | 4'2" - 4'7" | 127 - 140cm |
| S2 | 4'6" - 4'11" | 137 - 150cm |
| S3 | 4'10" - 5'3" | 147 - 160cm |
