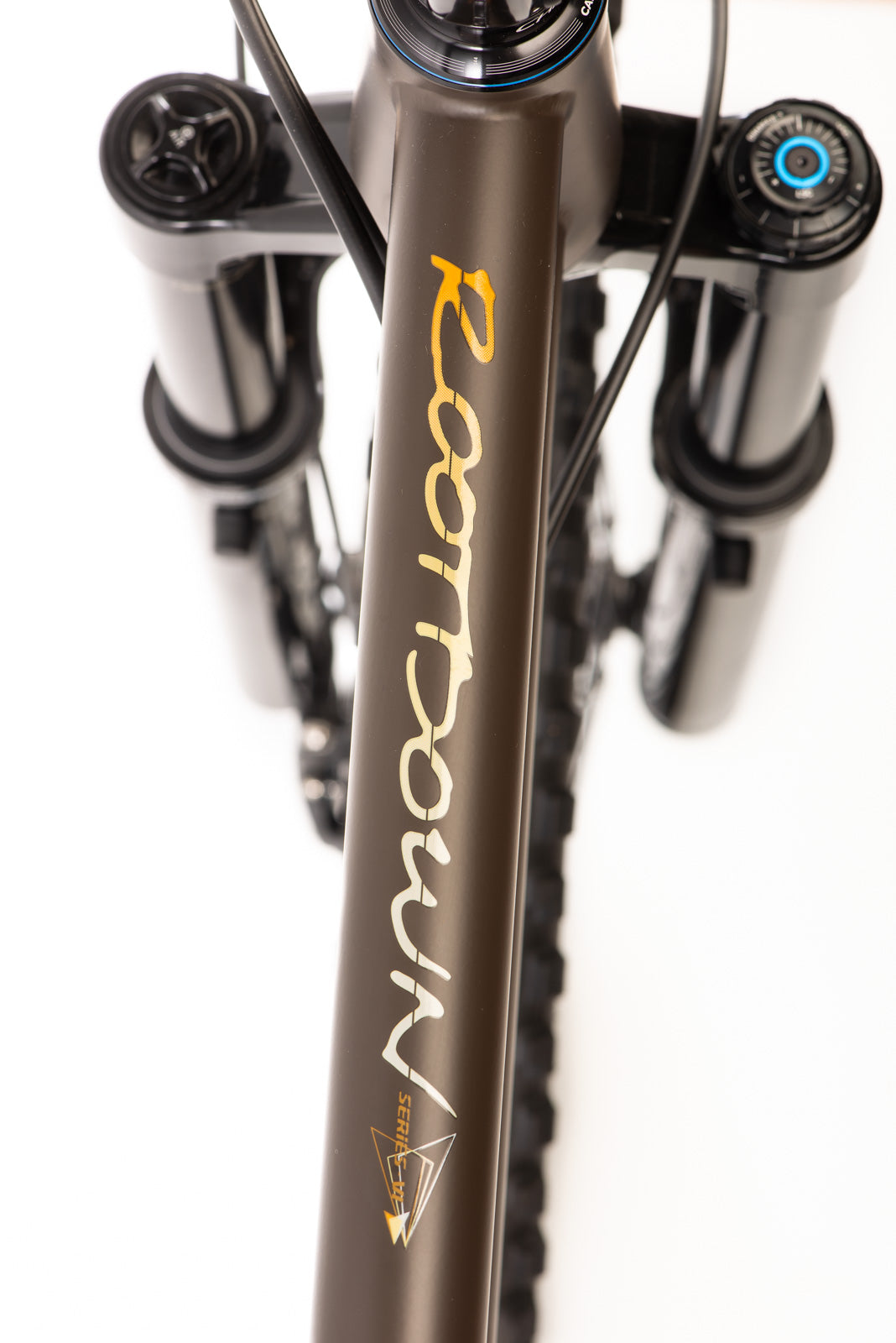

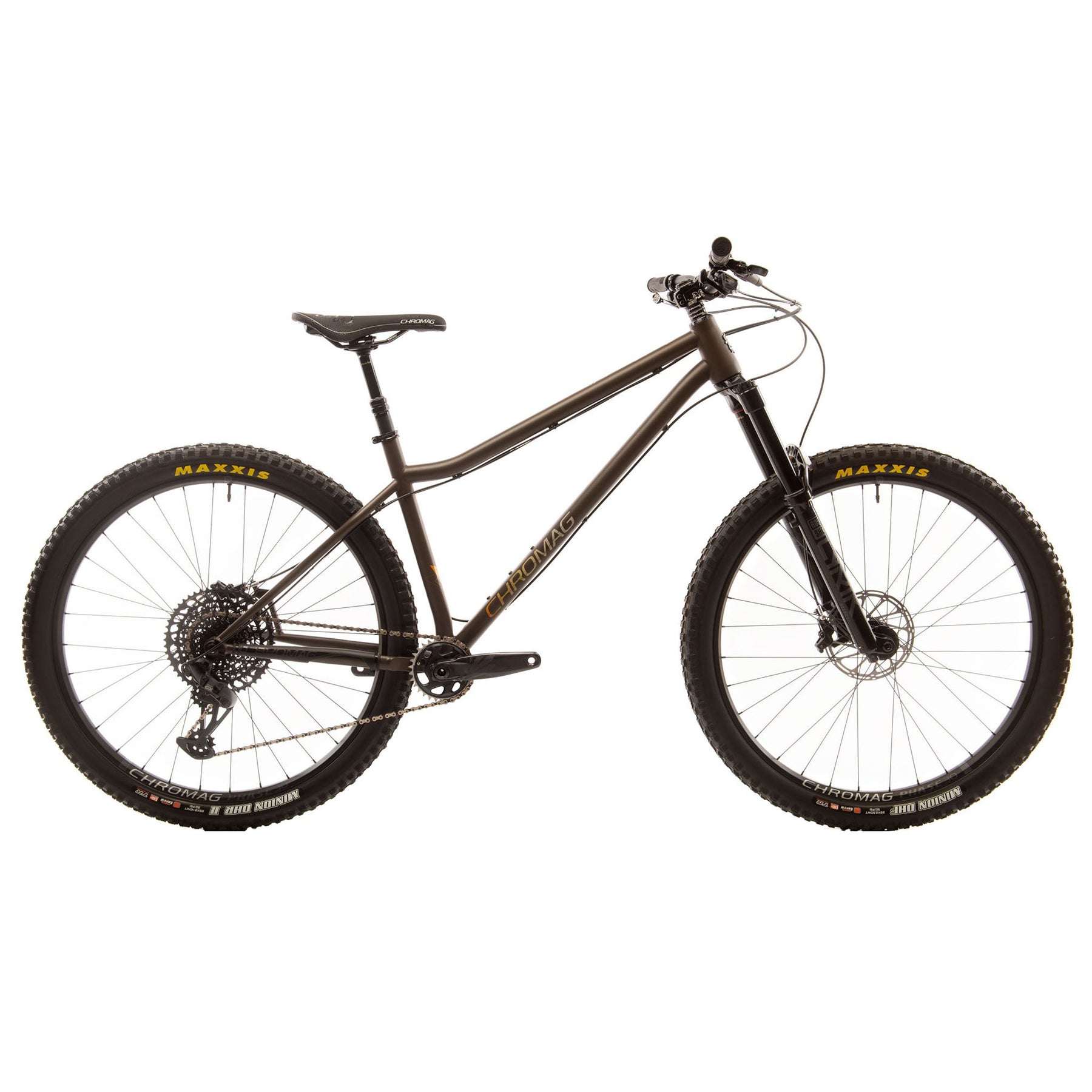

Chromag Rootdown Série VI
Specifications
Fourche Lyrik Ultimate 160mm Boost 110x15mm Rock Shox

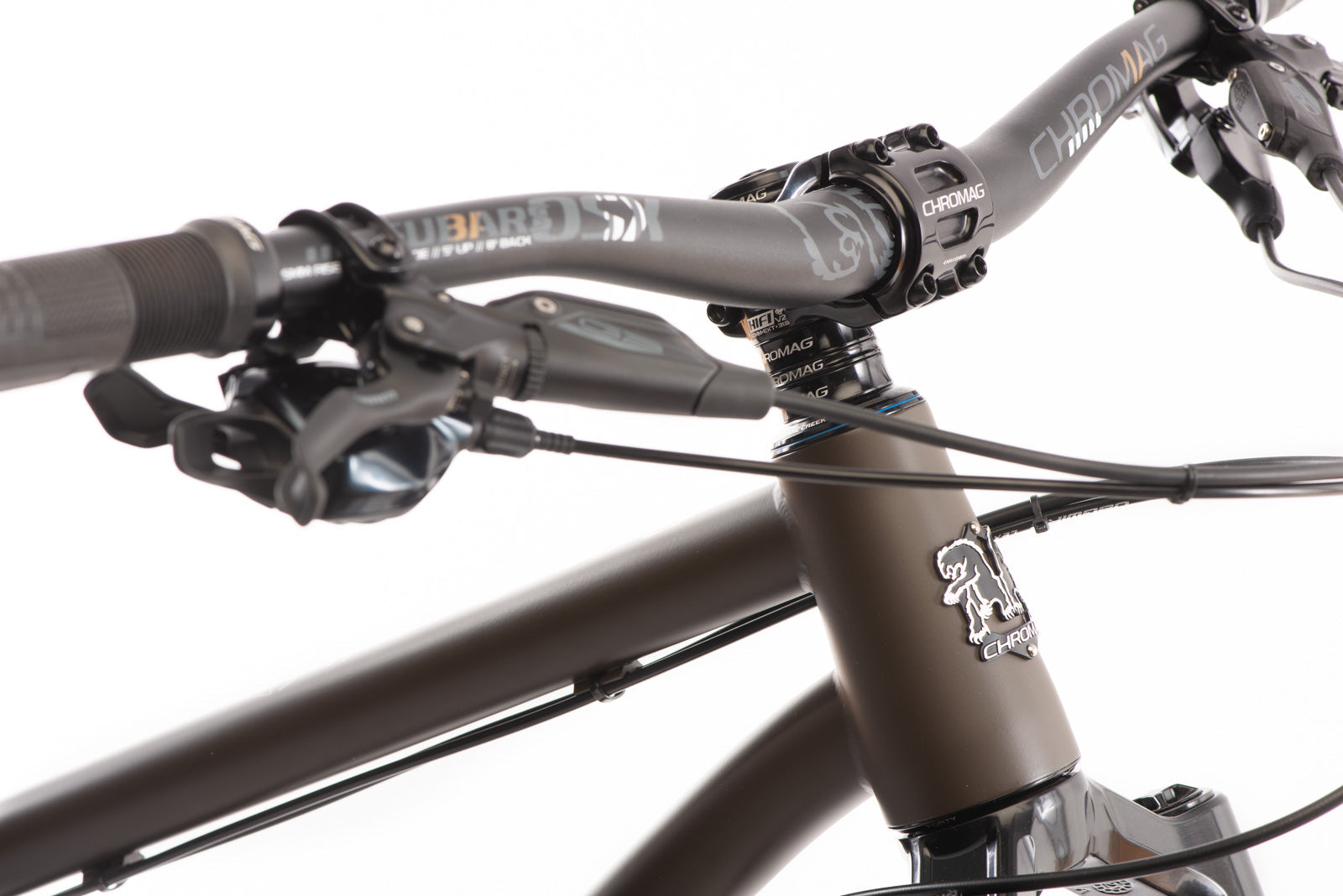

Potence HiFi BSX 40mm Chromag
BarOSX 25mm Rise, 800mm Chromag
Jeu de direction Cane Creek Forty ZS
Pédalier SRAM GX 170mm
Freins Code RSC SRAM
Rotors SRAM HS2 180mm
Manette SRAM GX Eagle
Cassette SRAM GX Eagle 10-52t
Dérailleur SRAM GX Eagle
Jantes Phase30 29" Chromag
Moyeux R4 Chromag
Pneus Minion DHF/DHR Maxxis
Tige de selle RockShox Reverb - (125mm - S) (150mm - M) (175mm - M/L) (200mm - L, XL)
Selle Trailmaster DT Chromag
Poignées Format Chromag
Chaîne SRAM GX Eagle
Geometry
| S | M | M/L | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 421 | 446 | 463 | 487 | 503 |
| B | Stack | 642 | 642 | 639 | 651 | 660 |
| C | Angle de direction | 64° | 64° | 64° | 64° | 64° |
| D | Hauteur du boitier de pédalier | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 |
| E | Empattement | 1180 | 1205 | 1222 | 1251 | 1271 |
| F | Longueur bases | 425 | 425 | 425 | 425 | 425 |
| G | Hauteur de direction | 105 | 105 | 105 | 115 | 125 |
| H | Longueur du tube horizontal | 581 | 606 | 623 | 649 | 667 |
| I | Angle du tube de selle | 76° | 76° | 76° | 76° | 76° |
| J | Hauteur de surplomb | 677 | 714 | 738 | 762 | 799 |
| Toutes les mesures en degrés ou millimètres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Taille | Taille | |
|---|---|---|
| Impérial | Métrique | |
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'4" - 5'8" | 163 - 173cm |
| ML | 5'7" - 6'0" | 170 - 183cm |
| L | 5'11" - 6'3" | 180 - 191cm |
| XL | 6'2" - 6'6" | 188 - 198cm |
