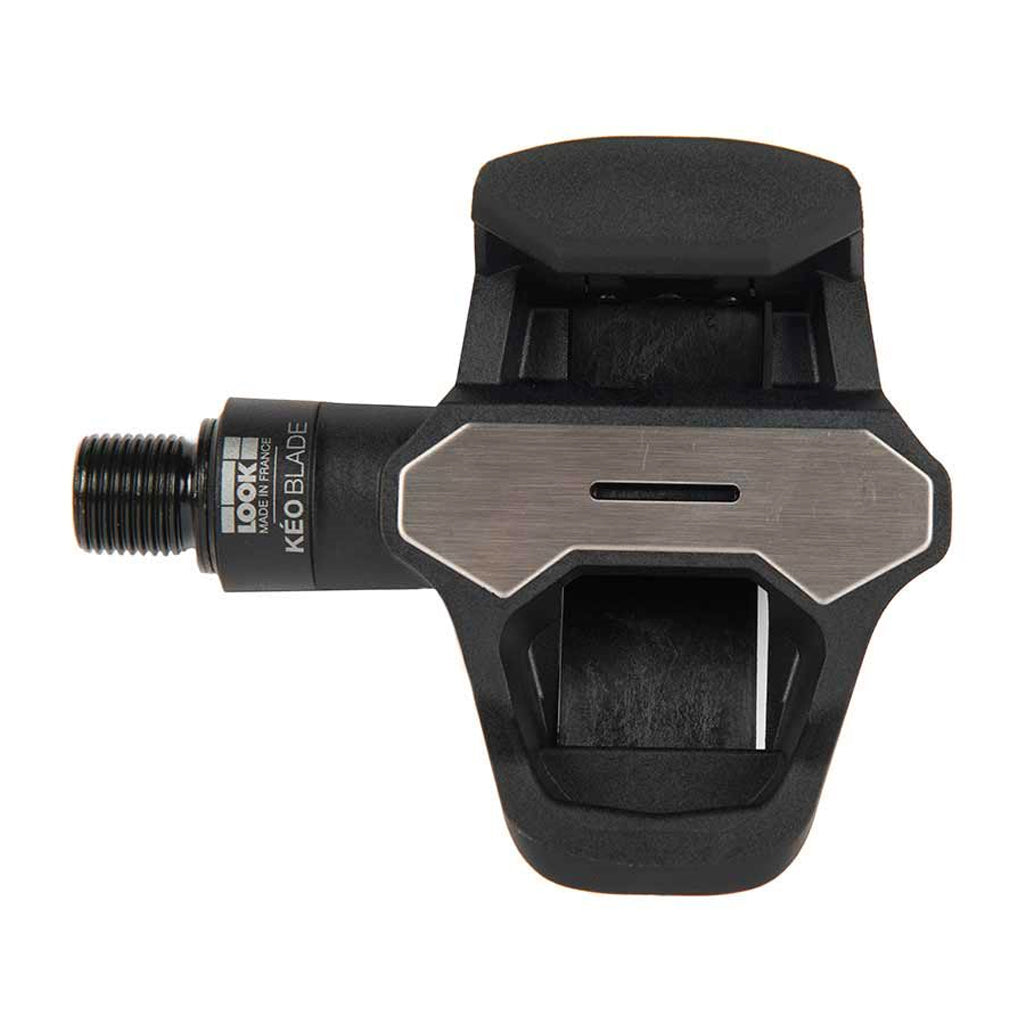

Look Kéo Blade Pedals

Regular price$219.99
/

  • In stock, ready to ship
  • Inventory on the way

The Blade body and blade are built from composite material. This substance makes the production of a range of less rigid blades possible   – 08 to 12 -, for a cleat engagement and release feel that falls between a metal spring and a carbon blade pedal.

 The Blade brings together all the benefits of a blade pedal: crisper in and out clipping, better foot support for more security, aerodynamic shape and low weight (compared to a conventional spring system). The platform contact area has been enlarged, providing excellent pedaling stability.

BLADE TECHNOLOGY

Blade technology uses a blade instead of a conventional metal spring, which has many advantages for the user:

• Safe cleat entry/ release: the blade flexes, providing a firm hold once clipped-in, and when clipping-out, releases the foot faster at the end of the process in a quick and secure movement.

• An aerodynamic shape: thanks to the integration of the blade inside the body, pedals equipped with BLADE technology have the best aerodynamic shape ever created.

• Low weight: the design of the pedal around a blade system allows a significant reduction in weight and better load distribution.

BODY

Composite

AXLE

Chromoly steel +

THREADING

9/16 X 20 mm

BEARINGS

2 ball bearings, 1 needle bearing cartridge

PEDAL STACK HEIGHT

14 mm

DISTANCE PEDAL SPINDLE / CRANK ARM

53 mm

CONTACT SURFACE AREA

400 mm²

FLOAT

2 types of composite blades: 8 and 12

CLEATS

Kéo Grip Cleats Grey

ANGULAR MOVEMENT

0 °, 4.5 ° or 9 ° according to the cleat colour (Black, Grey, Red)

PEDAL WEIGHT

120 gr (308 gr per pair with cleats and screws)
